Detailed Specifications

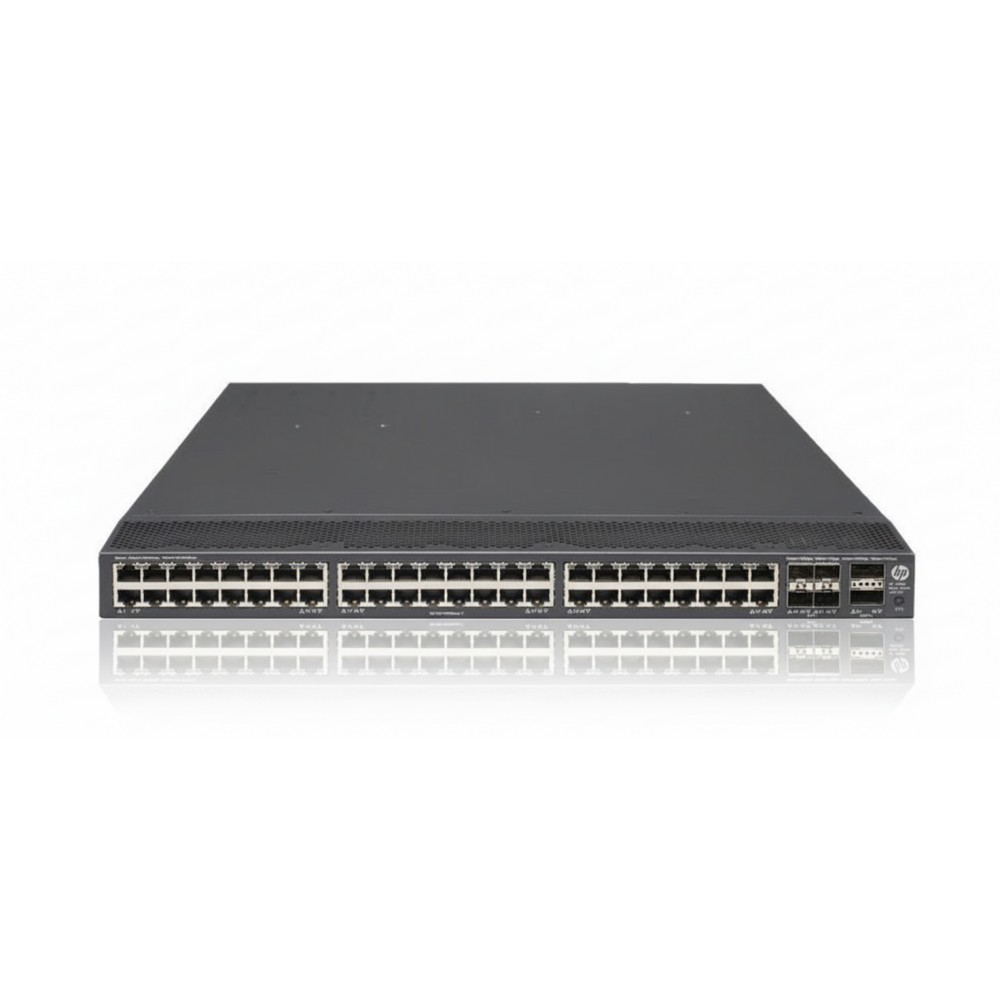

HPE JG336 - 5900AF-48XGT-4QSFP+ Switch
Overview :
The HPE JG336 switch is a Layer 3 managed rack-mount network switch designed for data centre and high-density server-access deployments, used by network engineers and IT infrastructure teams to aggregate high-speed traffic and streamline connectivity. It provides 48 RJ-45 ports supporting 1/10 GbE and four QSFP+ ports supporting 40 GbE uplinks, enabling consolidation of server-farm traffic or aggregation of 10 Gb links into 40 Gb uplinks. The device is built for the access or top-of-rack layer in data centres or campus aggregation sites and supports high throughput and advanced routing/switching features. It integrates into the HPE FlexFabric or FlexNetwork architecture and can be managed alongside other HPE network elements under standard network management platforms.
Key Features :
48 auto-sensing 1/10 GbE RJ-45 ports for flexible use
Four QSFP+ 40-GbE uplink ports for high bandwidth
Full L2/L3 feature set including IPv4/IPv6 dual-stack routing
1.28 Tbps switching capacity supporting up to 952 Mpps
1U rack-mount form factor suitable for dense deployments
Specifications :
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JG336 |
| Product Type | Managed Layer 3 Rack-Mount Switch |
| Fixed Ports | 48 × RJ-45 1/10 GbE |
| Uplink Ports | 4 × QSFP+ 40 GbE |
| Switching Capacity | 1.28 Tbps |
| Packet Forwarding Rate | 952 Mpps |
| Mac Address Table Size | 128,000 entries |
| Routing Table Size | 16,000 entries |
| Dimensions (W × D × H) | 17.32 in × 25.98 in × 1.72 in |
| Weight | 28.66 lbs |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Memory | 2 GB SDRAM, 512 MB Flash |
| Management Interfaces | Console RJ-45, out-of-band RJ-45, USB |
| Power Supply Slots | 2 slots (redundant supported) |
