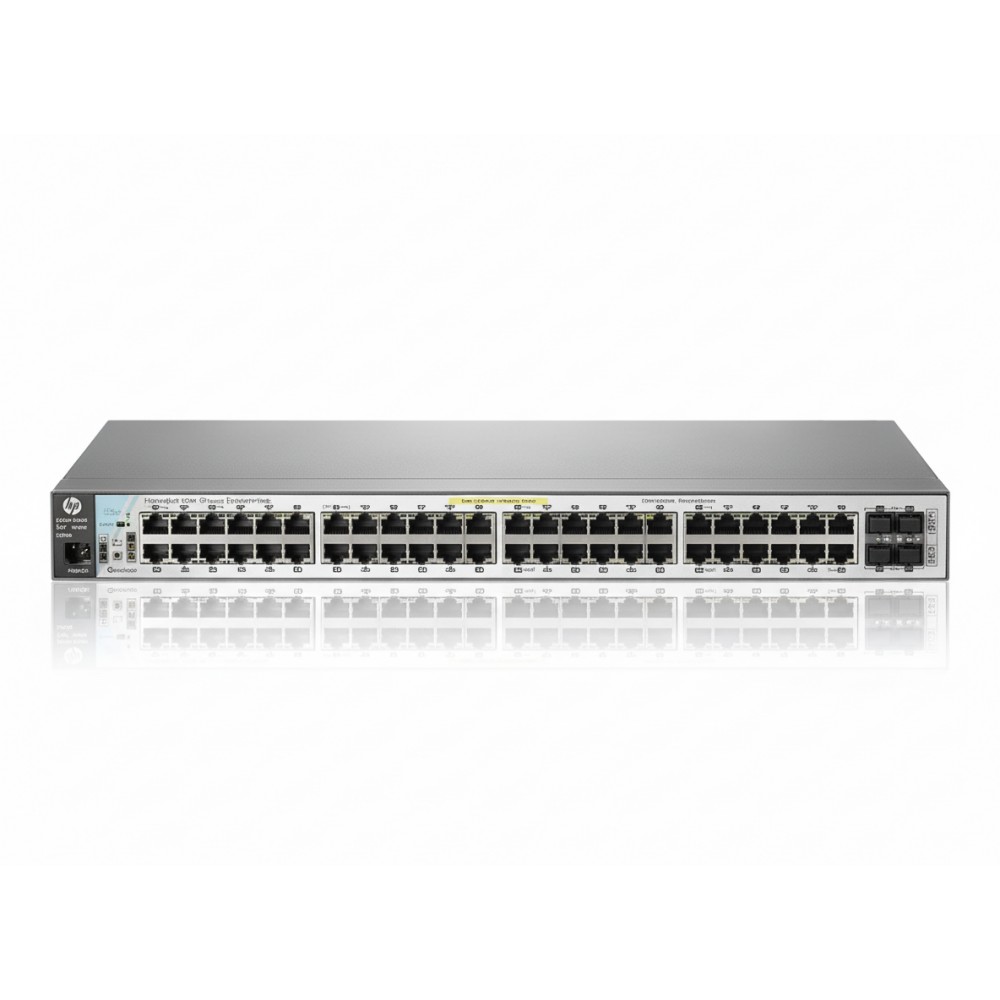

HPE Aruba J9627A 2620 48G PoE Ethernet Switch

HPE

J9627A Aruba2620-48-PoE+ Ethernet Switch

The HPEAruba2620-48-PoE+ (Part No. J9627A) is a robust Layer 3-lite managed switch tailored for enterprise edge and mid-size network environments. Featuring 48 autosensing 10/100 PoE+ ports, each delivering up to 30 W per port, and two Gigabit RJ-45 uplinks plus two SFP fiber slots, this switch offers scalable connectivity along with flexibility for fiber uplinks. With support for IPv4/IPv6 static and RIP routing, advanced QoS, security, and energy-saving features, this switch is ideal for building converged wired networks with voice, video, and wireless infrastructures.

Features

Designed to serve as a high-performance access-layer switch, the J9627A delivers up to 382 W PoE budget, supporting IP phones, wireless access points, and surveillance cameras across 48 ports.

Advanced Options

Utilizing ArubaAOS-CX software, it supports Lite Layer 3 routing (static IPv4/IPv6 and RIP), VLANs, ACLs, DHCP snooping, and sFlow telemetry. Its 512 MB SDRAM and 512 MB flash memory enable smooth performance, while variable-speed fans help minimize noise in quiet environments. A redundant external power supply option enhances uptime in critical deployments.

Product Key Features

1. 48× autosensing 10/100 PoE+ RJ-45 ports (≤30 W each)

2. 2× Gigabit RJ-45 uplink ports + 2× SFP fiber slots for uplinks

3. Lite Layer 3 static IPv4/IPv6 and RIP routing support

4. 382 W PoE power budget, optional redundant PSU support

5. Comprehensive management: CLI, Web, SNMP v1/v2c/v3, RMON, sFlow, QoS, VLAN

---

Reliability & Performance

The Aruba2620-48-PoE+ delivers reliable performance with 17.6 Gb/s switching capacity and up to 13 million packets per second throughput. Its 2 MB packet buffer and 16 K MAC address table support resilient traffic handling for mid-sized enterprise networks. With advanced features like Auto-MDIX, fan-speed control, and full stack IPv6 support, the switch combines performance, flexibility, and future-proof deployment in a 1U rack-mountable form.

Key Features (Bullet List)

• 48× 10/100Base-T PoE+ ports (IEEE 802.3af/at, up to 30 W per port)

• 2× 10/100/1000Base-T RJ-45 uplink ports

• 2× 1 Gb SFP fiber uplink slots

• Lite Layer 3 IPv4/IPv6 static and RIP routing

• QoS, ACLs, VLAN, DHCP snooping, RMON, sFlow support

• 512 MB SDRAM + 512 MB flash memory

• PoE power budget: 382 W; optional external redundant PSU

• Variable-speed, low-noise fans

• Rack-mountable 1U chassis (44.3 × 36.8 × 4.39 cm, 11.53 lb)

• Lifetime warranty and RoHS compliance

Specifications :

Product Specifications

Specification	Details
Model Number	J9627A (#ABA)
Product Type	Ethernet Switch
Ports	48 × 10/100 PoE+ RJ-45
Uplinks	2 × 1 Gb RJ-45 + 2 × 1 Gb SFP
PoE Power Budget	382 W (supports 24 ports at ~15.4 W each)
Switching Capacity	17.6 Gbps
Forwarding Rate	Up to 13.0 Mpps
Packet Buffer	2 MB
MAC Table	16,000 Entries
Routing	Static IPv4/IPv6, RIP
Management & Security	CLI, Web, SNMP v1/2c/3, RMON, sFlow, QoS, VLAN, ACLs
Memory	512 MB SDRAM, 512 MB Flash
Power Supplies	Internal AC, Optional EPS/RPS
Fan Design	Variable-speed fans
Dimensions (HxWxD)	~1.73" × 17.44" × 14.5"
Weight (Loaded)	~11.53 lb (~5.23 kg)
Warranty & Compliance	Limited Lifetime Warranty; RoHS Compliant
