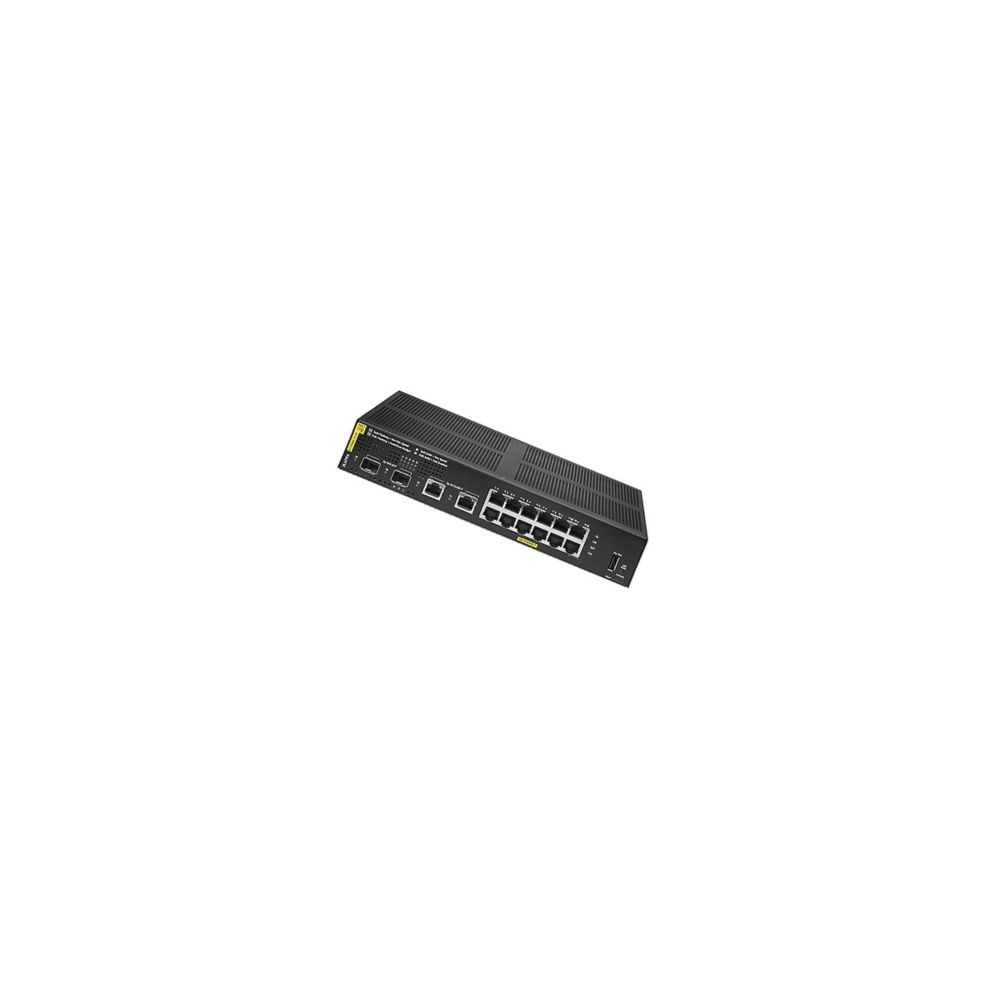

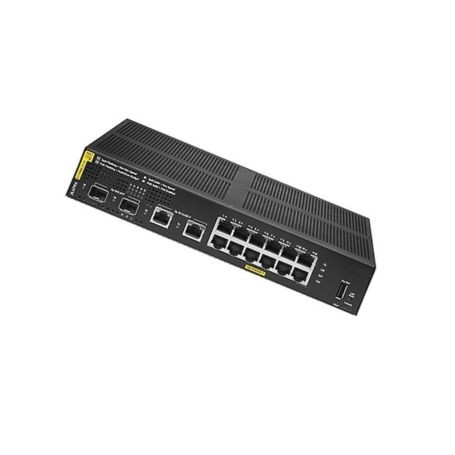

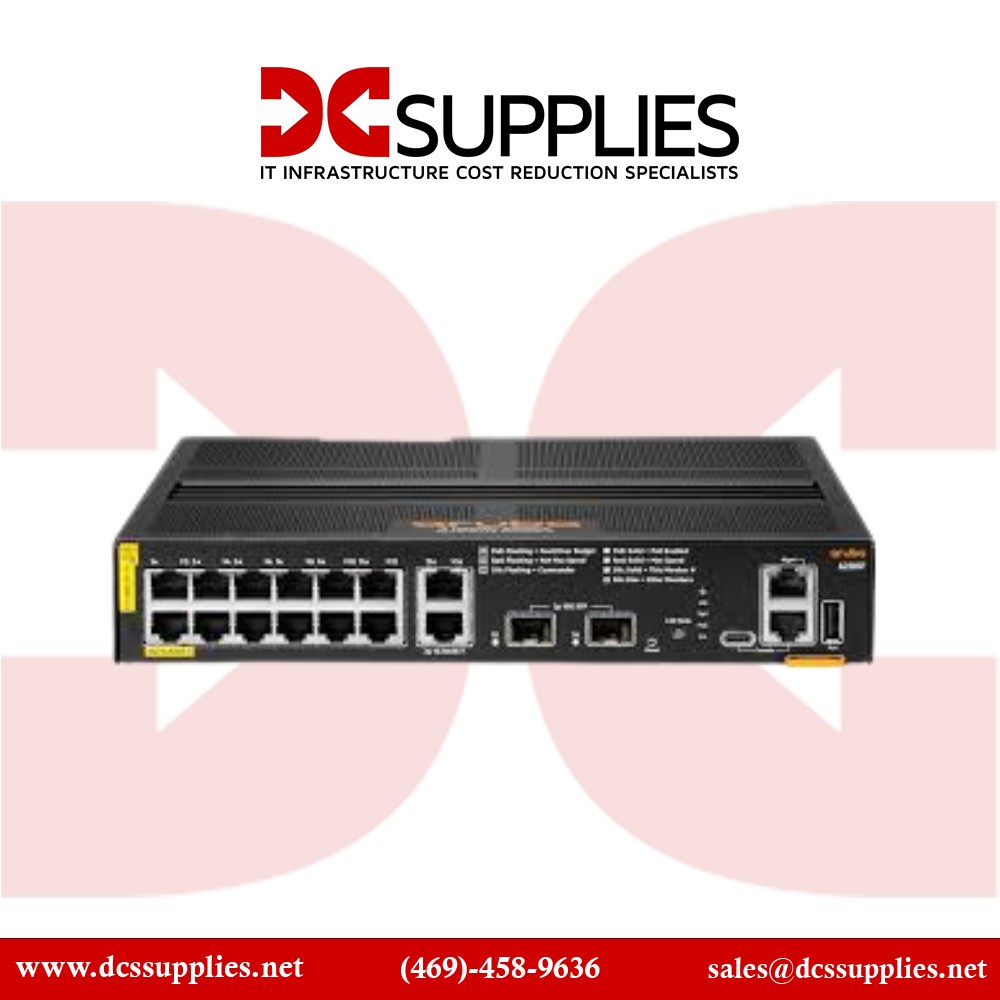

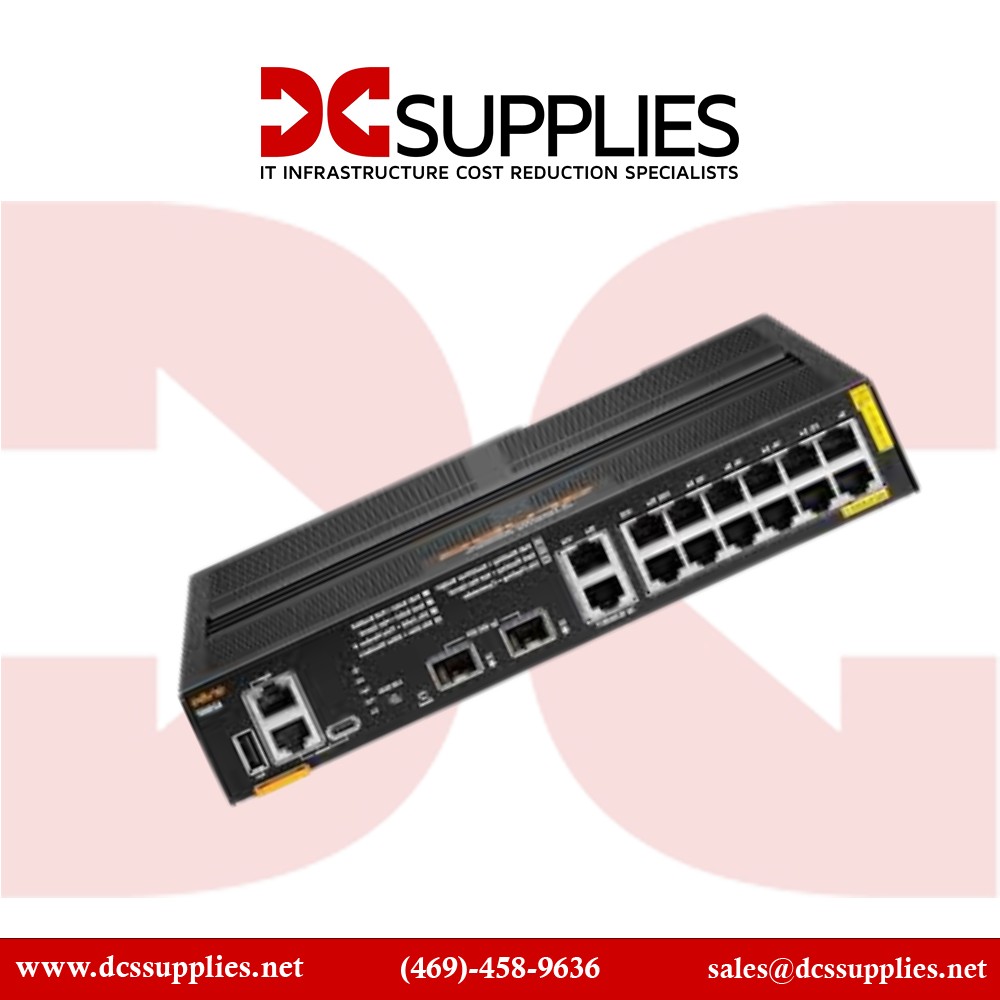

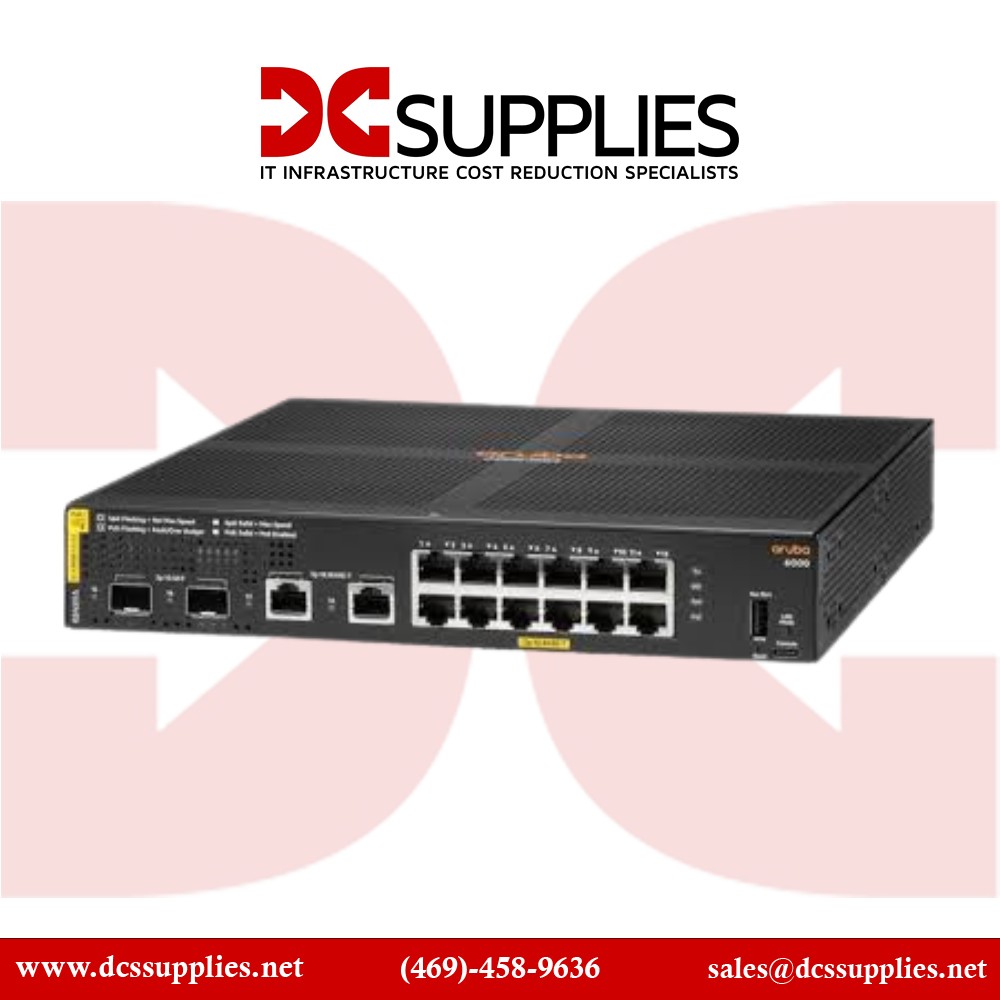

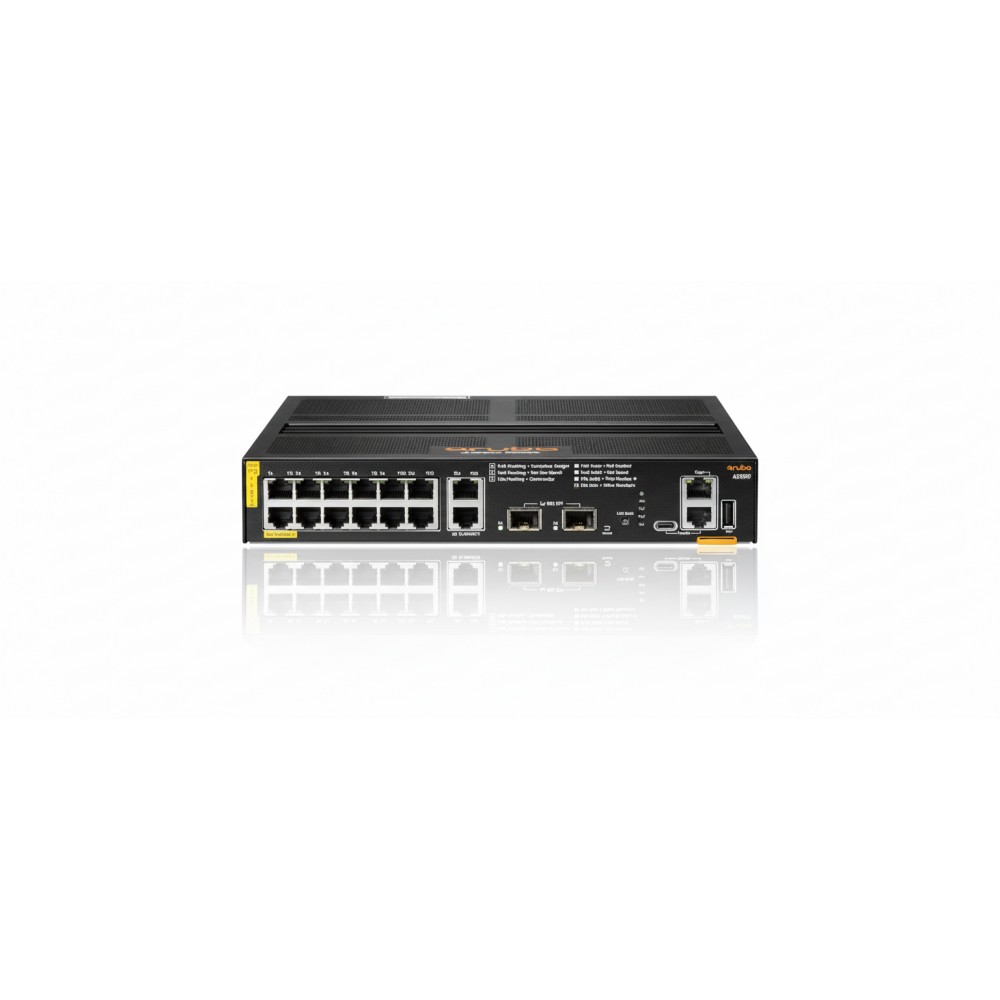

HPE R8N89-61001 Aruba CX6000 Class4 12 Ports Ethernet Switch

New

×




  • New

Detailed Specifications

HPE

R8N89-61001 – Aruba CX6000 Class4 12-Port Ethernet Switch

The HPE R8N89-61001 Aruba CX6000 Class4 is a compact 12-port Layer 2 Ethernet Switch designed for enterprise edge and branch environments. Ideal for small to midsize businesses, this model delivers reliable, wired connectivity with Class4 PoE support, advanced QoS, and robust security features. Built on Aruba’s AOS-CX operating system, it ensures consistent performance, simplified management, and enhanced visibility—making it an optimal choice for modern cloud-managed networks.

Features

The Aruba CX6000 Series brings a flexible, intelligent edge switching platform to business-critical networks. This 12-port model includes Class4 PoE (up to 30W per port) across all ports for powering IP phones, access points, and cameras directly through Ethernet.

Advanced Options

With Layer 2 switching, static routing, ACLs, and RADIUS-based authentication, it provides strong network segmentation and control. Integrated into Aruba’s cloud-native management ecosystem, this switch supports Zero Touch Provisioning (ZTP) and offers enterprise-grade security, making deployments scalable and future-ready.

Product Key Features

  • 12 x 1G RJ-45 Ethernet ports with Class4 PoE support

  • Layer 2+ features with static routing and QoS

  • Fully managed with cloud-based Aruba Central integration

  • Fanless, compact design for quiet operation

  • Limited Lifetime Warranty with 24/7 support

Reliability & Performance

Built on the Aruba AOS-CX architecture, the R8N89-61001 provides operational consistency, security, and high availability at the network edge. Fanless operation ensures silent performance in open office or classroom settings, while automated device onboarding simplifies provisioning and minimizes downtime. Redundant power options and Energy Efficient Ethernet (EEE) reduce total cost of ownership, ensuring dependable network operation even in constrained environments.

Key Features (Bullet List)

  • 12x 10/100/1000BASE-T ports with Class4 PoE (30W)

  • 139W PoE power budget across all ports

  • Layer 2 switching + static routing capabilities

  • 56 Gbps switching capacity / 41.6 Mpps throughput

  • 2 x 1G SFP uplink ports

  • Quiet, fanless operation

  • Compact, rack-mountable 1U design

  • Cloud-managed with Aruba Central

  • VLANs, ACLs, and DHCP snooping support

  • Zero Touch Provisioning and REST APIs

  • Energy Efficient Ethernet compliant

Specifications :

Product Specifications
SpecificationDetails
Model Number R8N89-61001
Product Series Aruba CX6000
Total Ports 12 x 1G RJ-45 with Class4 PoE
Uplink Ports 2 x 1G SFP
Switching Capacity 56 Gbps
Forwarding Rate 41.6 Mpps
Power Budget (PoE) 139 Watts
Layer Support Layer 2 with static routing
Operating System Aruba AOS-CX
PoE Standard IEEE 802.3at (Class4)
Management Aruba Central, CLI, REST API, SNMP
Dimensions (WxDxH) 10.4 x 8.3 x 1.7 in (26.5 x 21 x 4.4 cm)
Weight ~3.1 lbs (1.4 kg)
Operating Temp 0°C to 45°C
MTBF >1,000,000 hours
Warranty Limited Lifetime Warranty
