HPEJG296A

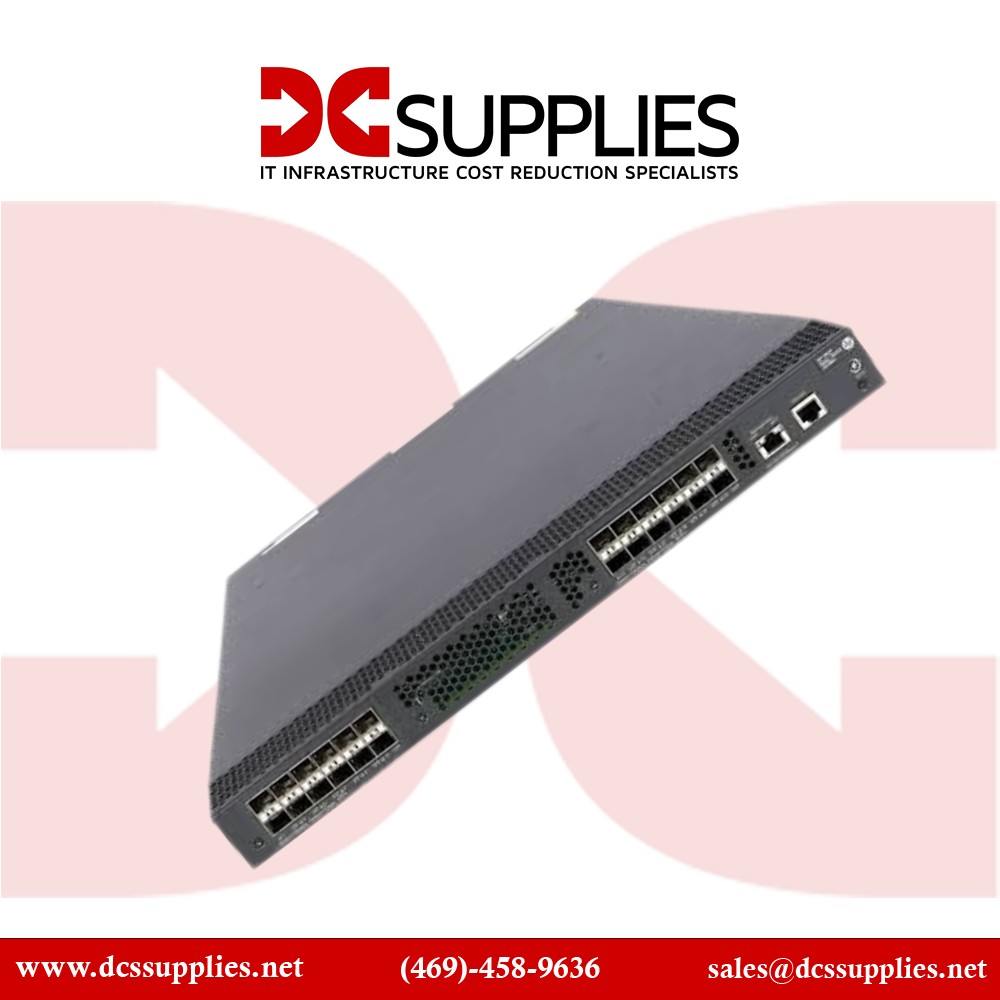

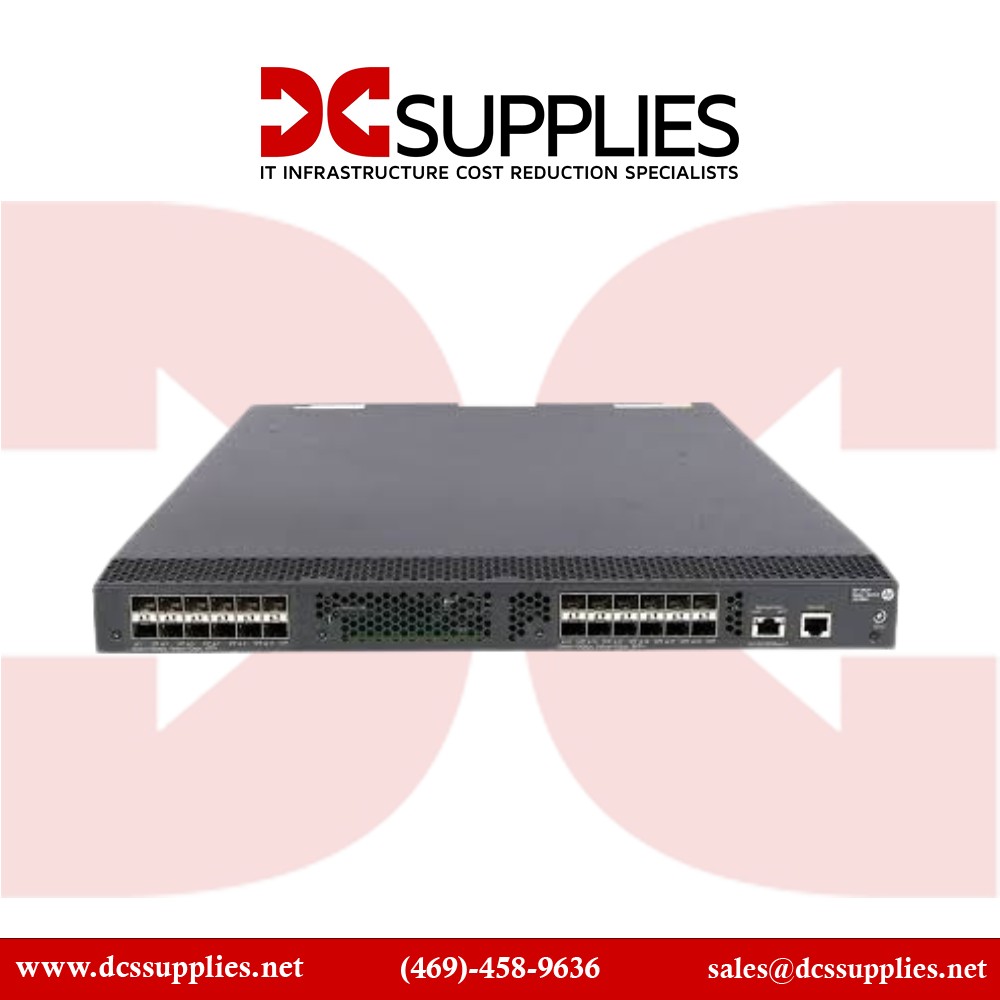

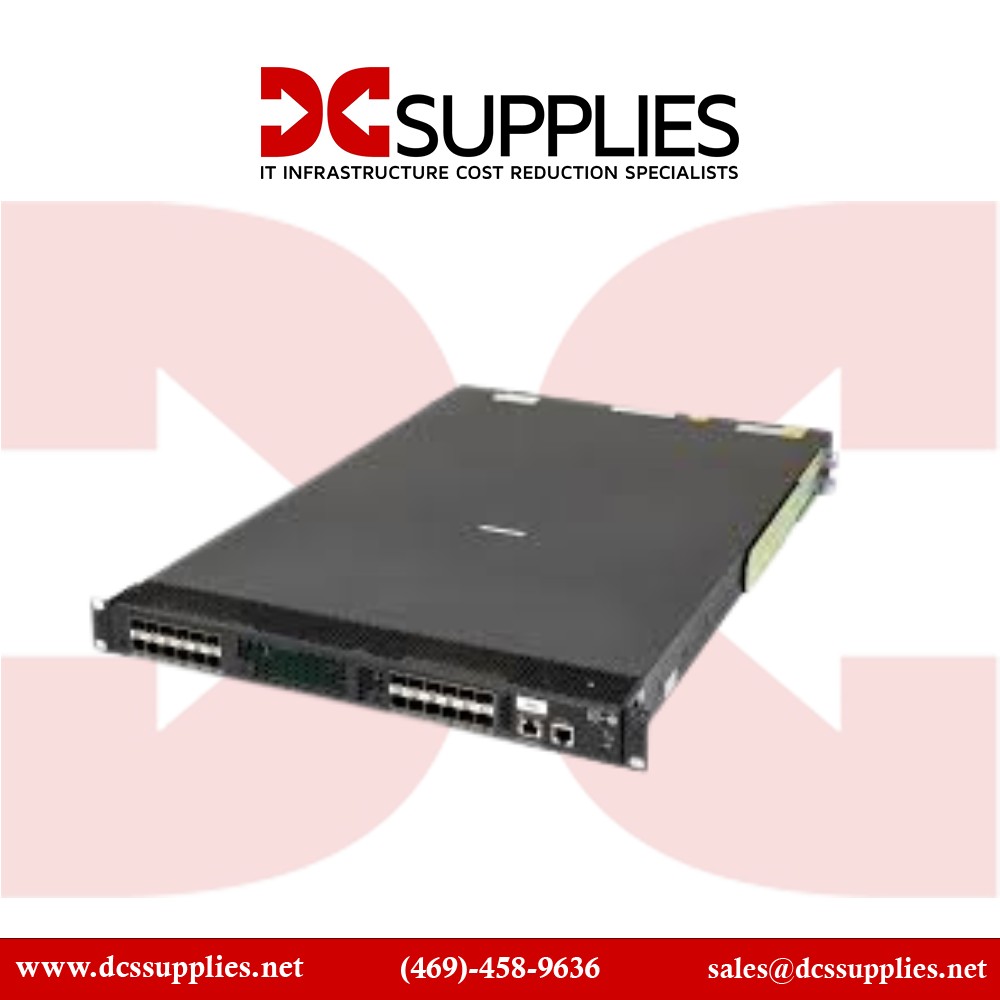

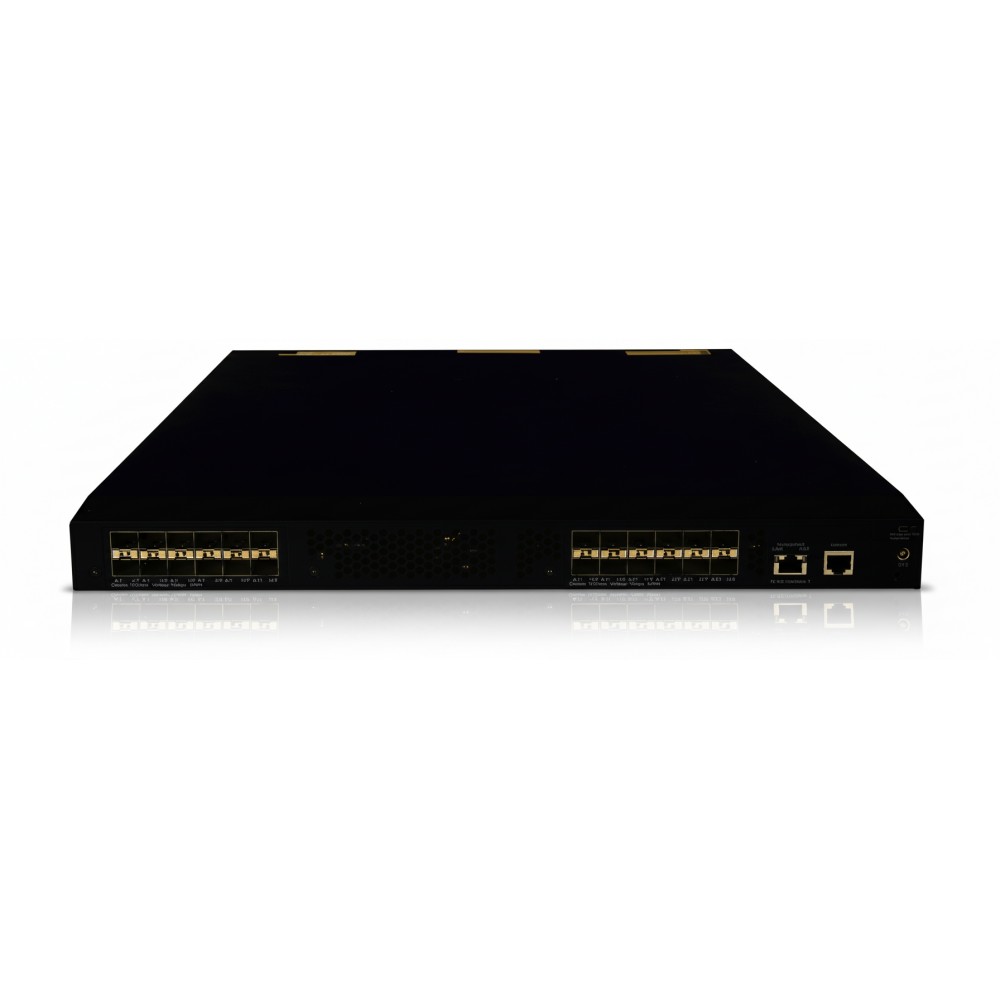

FlexFabric 5920AF-24XG 24-Port 10 GbE SFP+ Managed Layer 2/3 Switch

The HPEJG296A (5920AF-24XG) is a high-performance Layer 2/3 FlexFabric switch offering 24 fixed SFP+ ports capable of 1/10 Gb Ethernet, and dedicated RJ-45 console and management ports. Built for data center top-of-rack or server aggregation layers, it features ultra-deep packet buffering, IRF clustering, and enterprise-grade QoS, VLAN, and routing capabilities. Ideal for virtualized environments, SAN overlay networks, or high-density server farms, this Ethernet Switchdelivers scalable, low-latency connectivity with flexible fiber uplink options and industry-standard protocol support.

Features

Engineered for scalability and high throughput, this Ethernet Switchincludes 2 GB SDRAM, 128 MB flash memory, and up to 3.6 GB ultra-deep packet buffer to handle burst traffic without packet loss. With a Ethernet Switchcapacity of 480 Gbps and forwarding rate up to 367 Mpps, it's built to handle heavy workloads and ensure minimal latency (<1.7 µs at 64-byte frames)IRF (Intelligent Resilient Framework) support allows up to four Ethernet Switchto operate as a single logical Ethernet Switchfor simplified management and improved resiliency. Built-in L3 routing support (static, RIP1, RIP2, OSPF, BGP, IS-IS) and IPv6 readiness make it appropriate for both current and future environments

Advanced Options

This FlexFabric Ethernet Switchis engineered to deliver reliable, consistent performance in enterprise and data center environments. Its high-capacity switching architecture supported by ultra-deep buffering reduces congestion and protects against packet loss during peak loads. The sub-microsecond latency enhances real-time traffic flows×ideal for SAN, virtualization, or real-time analytics.

Product Key Features

• 24 fixed 1/10 GbE SFP+ ports for high-speed fiber connectivity


• Full FlexFabric support with IRF stacking for resilience


• 480 Gbps Ethernet Switchcapacity and 367 Mpps forwarding rate


• Ultra-deep 3.6 GB packet buffer for loss-sensitive applications


• Layer 3 routing support including OSPF, BGP, RIP, static, IPv6


• Advanced QoS, ACLs, VLANs, LACP, STP/RSTP/MSTP protocols

---

Reliability & Performance

Redundancy is built in through optional dual power supplies and hot-swappable fan trays for both airflow directions, ensuring continuous operation in production environments. IRF clustering enables simplified management and network resilience. Support for industry-standard protocols and security features such as SSH, ACLs, 802.1X, and multicast storm control further ensure enterprise-grade reliability and scalability

Key Features :

• • 24 × fixed 1/10 GbE SFP+ ports

  • 1 × RJ-45 console port, 1 × RJ-45 OOB management port

  • FlexFabric IRF stacking support

  • 480 Gbps Ethernet Switchcapacity, 367 Mpps throughput

  • Layer 3 routing: static, OSPF, BGP, RIP, IPv6 routing

  • Ultra-deep packet buffer (~3.6 GB)

  • Advanced QoS, ACLs, VLAN, LACP, STP/RSTP/MSTP

  • Redundant power supply support (optional)

  • Reversible fan trays (front-to-back or back-to-front airflow)

  • Broad compliance: IEEE 802.3ae, IEEE 802.1Q/p/D/w/s, LLDP, SSH, SNMP

Specification	Details
Model Number	JG296A / 5920AF-24XG
Product Type	FlexFabric Managed Layer 2/3 Switch
Ports	24 × fixed SFP+ (1/10 GbE)
Additional Ports	1 × RJ-45 console; 1 × RJ-45 management
Switching Capacity	480 Gbps
Forwarding Rate	Up to 367 Mpps (64-byte frames)
Packet Buffer	Up to ~3.6 GB
Memory	2 GB SDRAM, 128 MB flash
MAC Address Table	~128,000 entries
IP Routing Table	~16,000 IPv4 entries
Layer 3 Protocols	static, RIP/RIPng, OSPF, BGP, IS-IS, VRRP (IPv4 & IPv6)
IRF Stacking	Supports up to 4 units as one logical chassis
Power Supplies	1 (min) / 2 (redundant optional)
Fan Trays	Two fan module slots; airflow direction reversible
Dimensions	1U rack-mount: 17.3″ × 27.6″ × 1.72″ (W × D × H)
Weight	~13 kg (28.7 lb)
Operating Temp/Humidity	0 °C to 45 °C; 10-90% non-condensing
Storage Temp/Humidity	-40 °C to 70 °C; 5-95% non-condensing
Latency	<1.7 µs (64-byte packets)
Compliance	IEEE 802.1D/Q/P/W/S, 802.3ad/ae, LLDP, SNMP, SSH, RoHS, UL, FCC, CE, etc.
