HPEJ9776

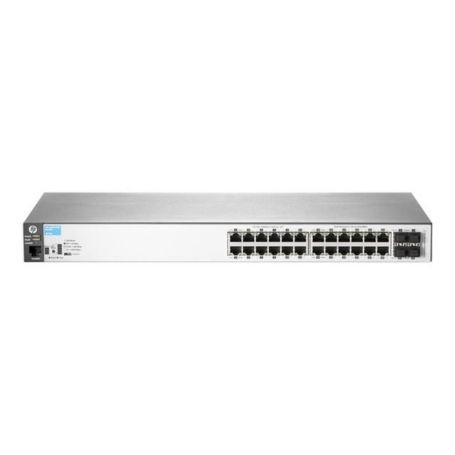

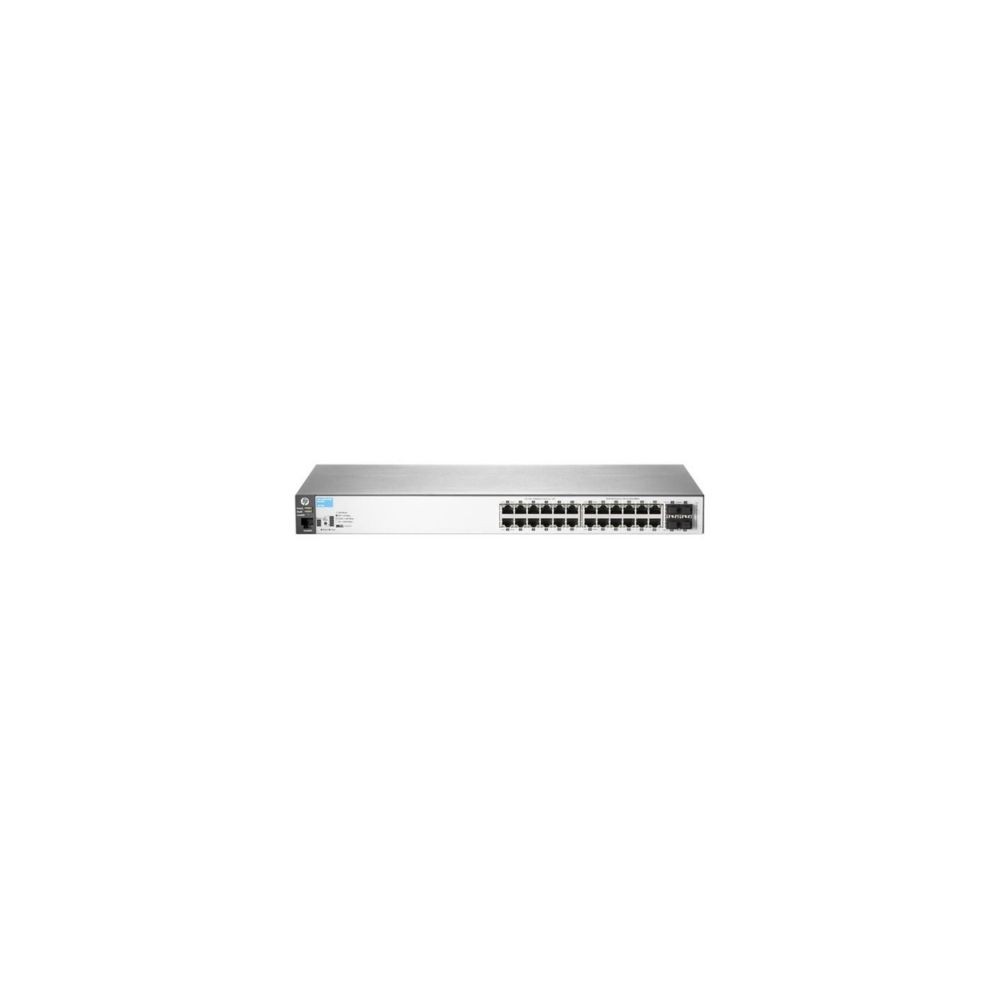

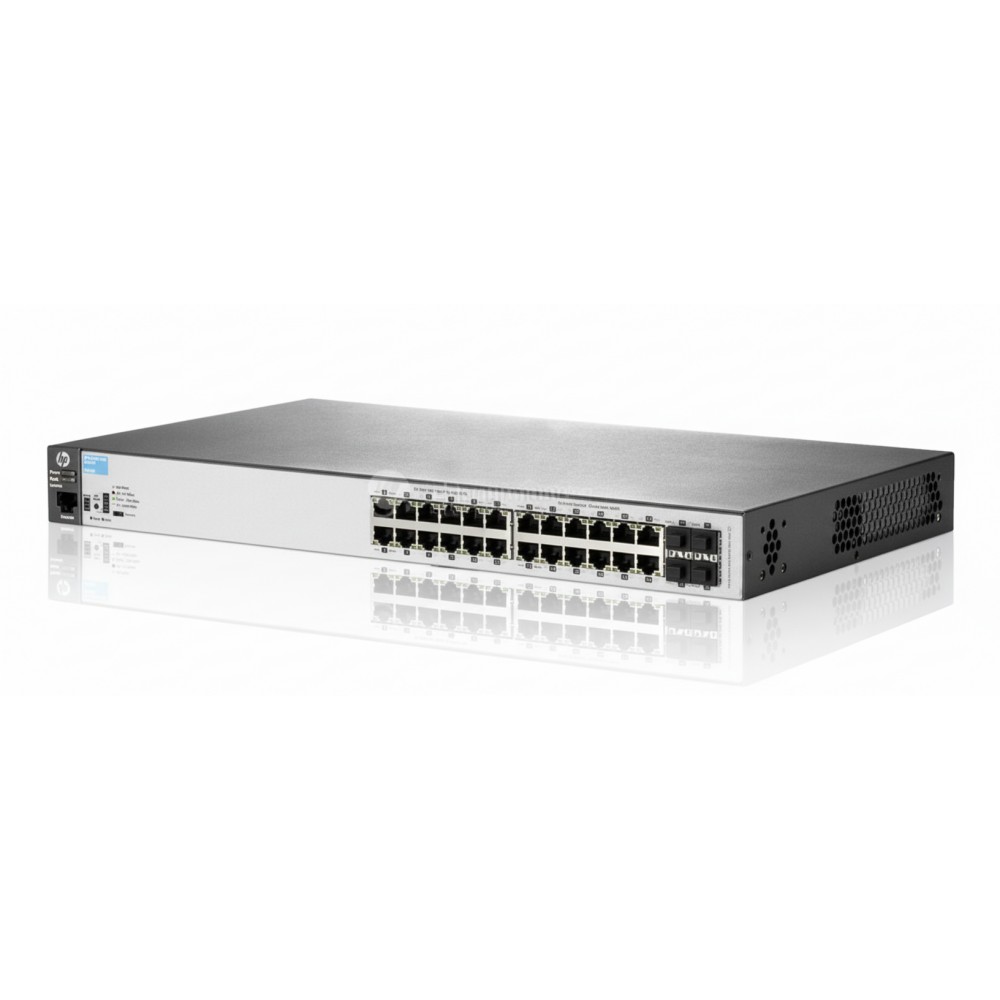

Aruba 2530-24G Managed L2 Gigabit Ethernet Switch (24×1 Gb + 4×SFP)

The HPEJ9776 Aruba 2530-24G is a feature-rich Layer 2 managed GigabitEthernet Switch, offering 24 autosensing RJ-45 ports plus four fixed SFP uplinks. Designed for branch offices, small-medium businesses, and campus edge deployments, it delivers reliable, secure, and high-performance connectivity along with advanced management capabilities. Ideal for meeting the needs of wired devices, IP phones, servers, or uplinks via fiber, this switch delivers enterprise-grade functionality without complexity. With intuitive management options and robust security, it's a smart choice for IT teams seeking scalable access layer infrastructure.

Features

This enterprise-friendly Gigabit switch features a non-blocking 56 Gbps switching fabric and forwarding performance up to 41.6 Mpps for 64-byte frames, ensuring smooth traffic handling during peak loads. It includes four dedicated Gigabit SFP uplink ports to support fiber connections, extending reach and network flexibility. The unit is powered by an ARM9E 800 MHz processor, with 256 MB DDR3 memory and a 1.5 MB dynamically allocated packet buffer to support stable, low-latency operationManagement is seamless via Web GUI, CLI, Aruba AirWave or Aruba Central, or SNMP management. It provides full Layer 2 functionality including VLANs, QoS, link aggregation, ACLs, and IPv6 host support, along with access control and enhanced security policies. This model supports silent operation and flexible installation×desktop, rack, or wall mount×making it well-suited for varied deployment scenarios.

Advanced Options

Built for dependable edge networking, this switch delivers robust L2 switching with minimal latency (<2.3 µs at 1 Gbps) and high throughput capacity for mission-critical environments. Its MAC address table supports up to 16,000 entries, enabling large VLAN deployments and stable client tracking. Memory and processing specifications×ARM9E 800 MHz CPU, 256 MB DDR3 RAM, and dynamic packet buffering×ensure consistent forwarding during peak traffic.

Product Key Features

• 24 × auto-sensing Gigabit RJ-45 ports


• 4 × fixed Gigabit SFP uplink ports for fiber connectivity


• Layer 2 managed features: VLAN, QoS, link aggregation, ACLs


• Management via Web GUI, CLI, SNMP, AirWave, Aruba Central


• Silent fanless design ideal for office environments

• Energy Efficient Ethernet (IEEE 802.3az) support

---

Reliability & Performance

The switch supports enterprise security standards including ACLs, 802.1X, RADIUS/TACACS+, and flow control. Deployment flexibility is enhanced through desktop, rack, or wall mounting, while its fanless design ensures quiet operation. Energy-efficient features like idle-port power down and IEEE 802.3az compliance help reduce power consumption, making it ideal for business environments prioritizing efficiency and uptime

Key Features :

• 24 × 10/100/1000 Mbps autosensing RJ-45 ports

• 4 × fixed Gigabit SFP uplink ports

• Layer 2 switching with VLAN, QoS, LACP, STP/RSTP/MSTP

• Web GUI, CLI, SNMP, Aruba AirWave, Aruba Central management

• Silent fanless operation; wall/desktop/rack mountable

• IPv6 host support, flow control, port mirroring, ACLs

• Energy Efficient Ethernet (IEEE 802.3az)

• MAC table capacity: 16,000 entries

• Jumbo frame support up to ~9,220 bytes

• Dual firmware images, zero-touch provisioning support

Specification	Details
Model Number	J9776
Product Type	Managed Layer 2 Gigabit Ethernet Switch
Ports	24 × RJ-45 autosensing 10/100/1000 Mbps
Uplink Ports	4 × fixed Gigabit SFP
Switching Capacity	56 Gbps
Forwarding Rate	Up to 41.6 Mpps (64-byte packets)
Memory / Processor	ARM9E 800 MHz CPU; 256 MB DDR3; 128 MB flash; 1.5 MB buffer
MAC Address Table	16,000 entries
VLAN Support	Up to 4,094 VLAN IDs; 512 active VLANs
Jumbo Frame Support	~9,220 bytes
Management Interfaces	Web GUI, CLI, SNMP v1/2c/3, Aruba Central, AirWave
Security Features	ACLs, 802.1X, RADIUS/TACACS+, flow control
Mounting Options	Rack-mount (1U), desktop, wall-mountable
Dimensions (W×D×H)	44.3 × 25.4 × 4.45 cm (17.44 × 10.00 × 1.75 in)
Weight	~2.77 kg (6.1 lb)
Operating Temperature	0 °C to 45 °C
Humidity	15%-95% non-condensing
Power Consumption	Idle ~28.8 W; Max ~48 W
