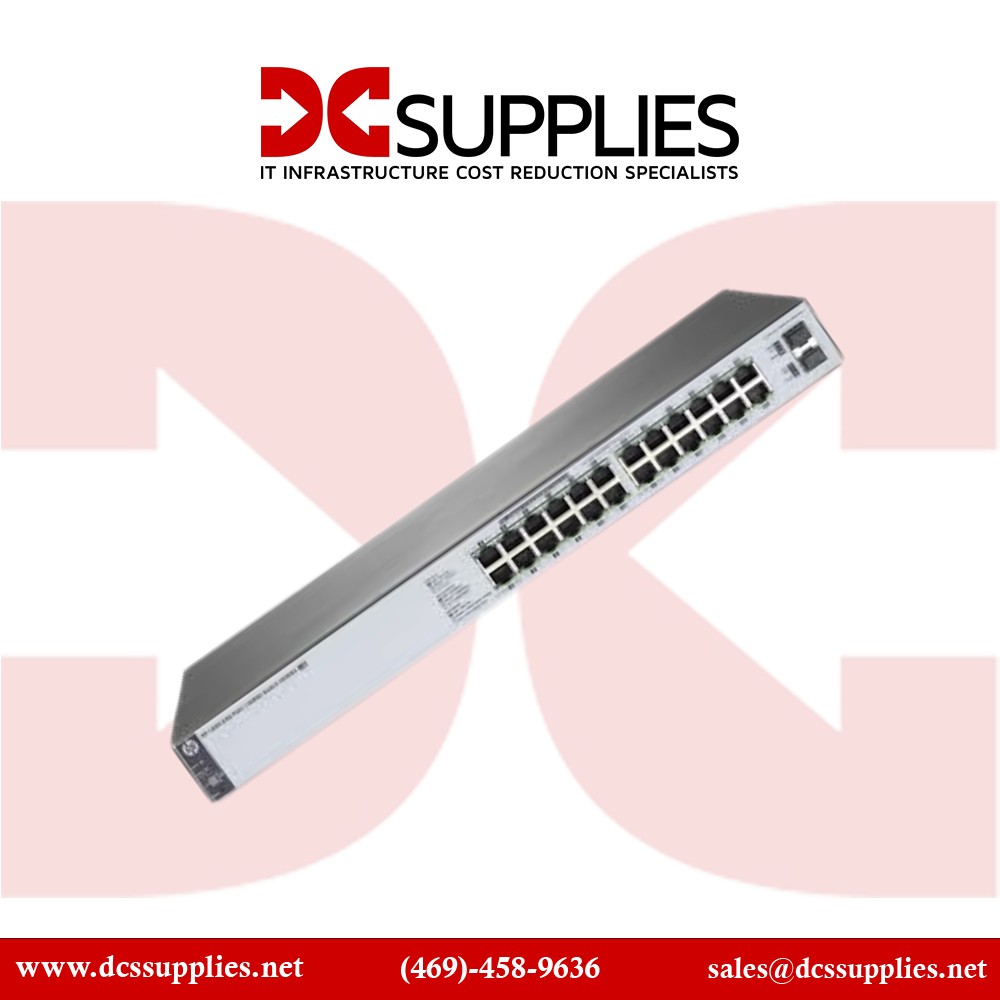

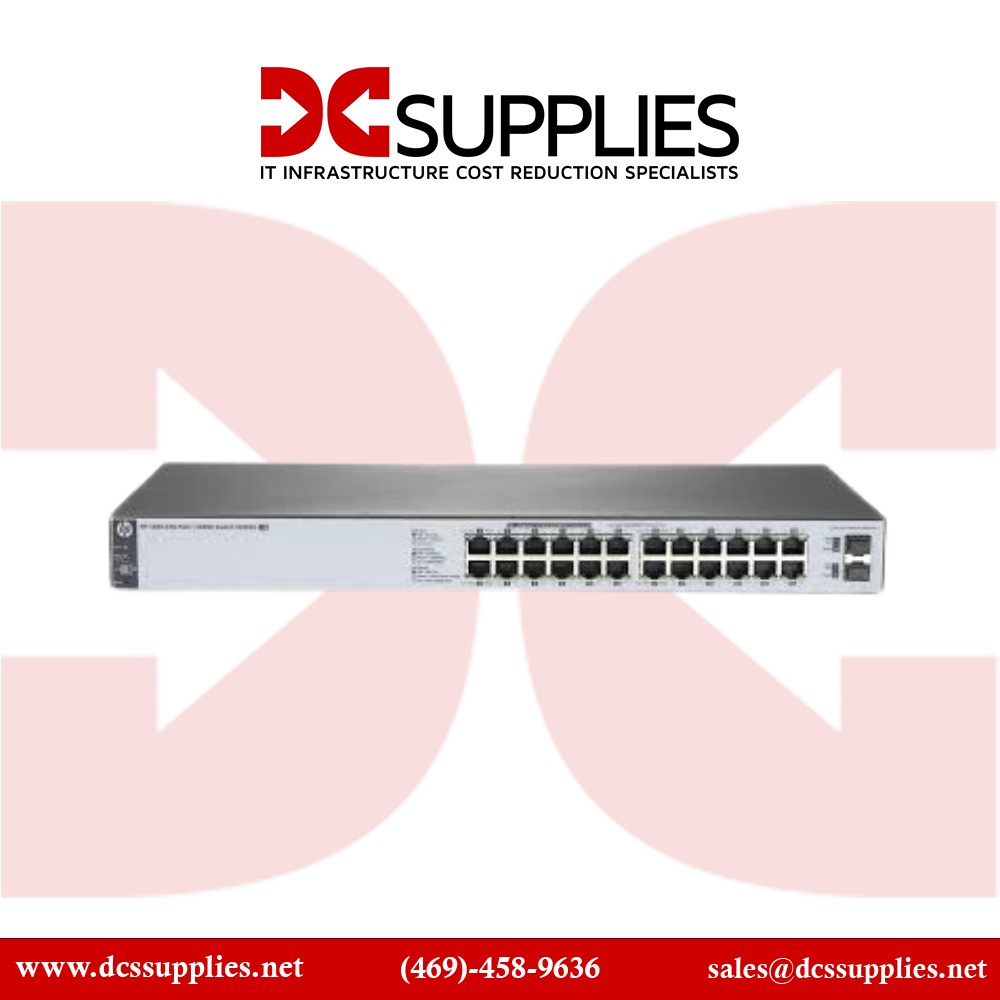

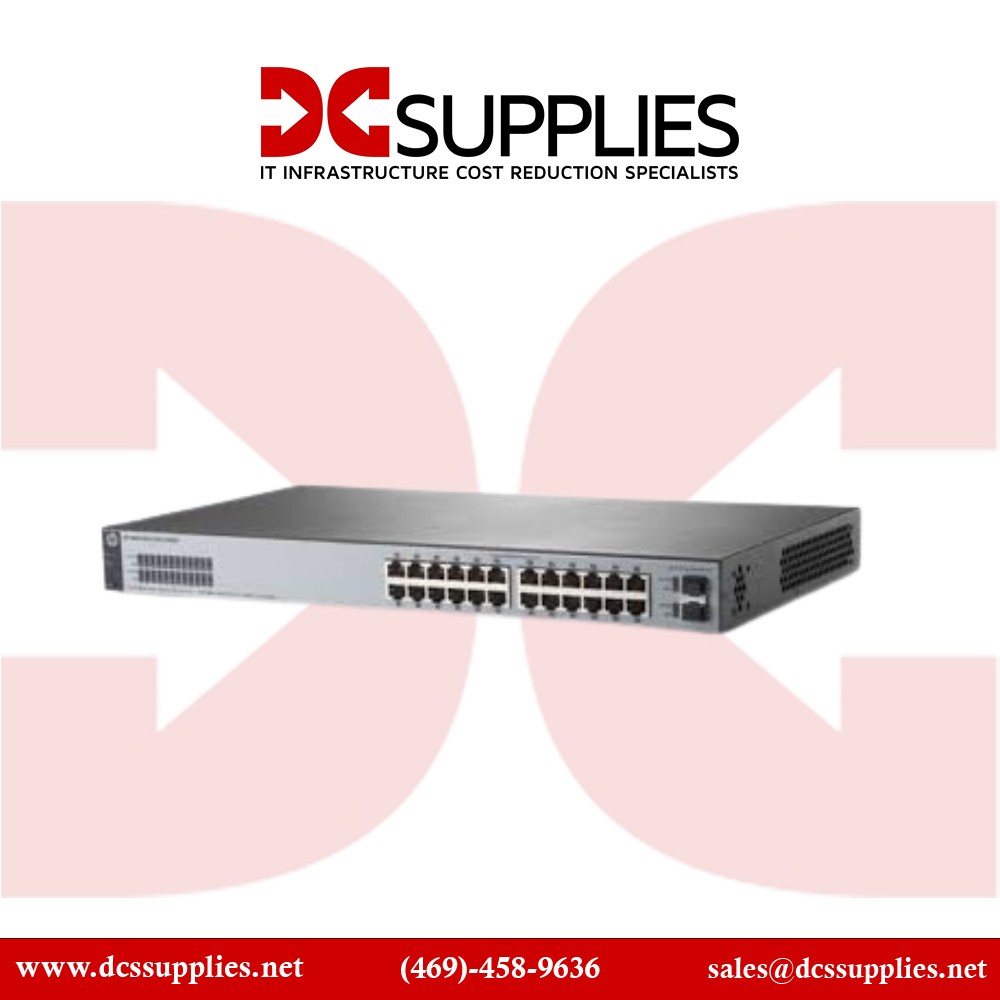

HPE J9983A 1820 24G PoE Ethernet Switch 185W View larger
Previous Next

HPE J9983A 1820 24G PoE+ (185W) 24‑Port Gigabit Ethernet Switch

J9983A

New

24-port Gigabit managed switch with 185W...

×




Detailed Specifications

HPE J9983A

1820 24G PoE+ (185W) 24‑Port Gigabit Ethernet Switch

The HPE J9983A (OfficeConnect 1820-24G-PoE+) is a smart-managed Gigabit switch offering 24 RJ-45 ports with PoE+ support and dual SFP uplinks. Designed for small- to mid-sized businesses, this switch combines simple web-based management with enterprise-level Layer 2 functionality. It delivers both data and power over a single cable—ideal for powering IP phones, access points, or security cameras—while providing flexible fiber uplink options via its SFP ports. With a total PoE budget of 185 W and intuitive deployment features, it's a reliable and performance-focused solution tailored for evolving network environments.

Features

This switch delivers wire-speed performance with up to 52 Gb/s switching capacity and throughput of approximately 38.6 Mpps for optimal network responsiveness . Featuring 12 PoE+ ports that comply with IEEE 802.3at standards and 12 non‑PoE ports, it allocates power intelligently to support connected powered devices without overloading circuits . The two dedicated SFP ports support 100/1000BASE-X fiber connections for uplink flexibility and extended reach.

Advanced Options

Designed for ease of deployment, the J9983A offers plug-and-play setup with optional web GUI configuration. Support for VLANs, link aggregation (LACP), QoS, port mirroring, SNMP, LLDP, loop protection, and 802.1X enhances security and traffic control within small business network deployments

Product Key Features

  • 24 × Gigabit RJ-45 ports (12 with PoE+ support)

  • 185 W total PoE+ budget

  • 2 × dedicated Gigabit SFP uplink ports

  •  Layer 2 smart management with VLAN, QoS, LACP

  •  Web-based GUI with SNMP, LLDP, port mirroring

  • Energy Efficient Ethernet and idle-port power down

Reliability & Performance

Engineered for continuous, dependable office deployment, this switch operates quietly (fanless for this model) and supports ambient ranges up to 40 °C with non‑condensing humidity up to 95% . It features an ARM Cortex-A9 400 MHz processor, 128 MB SDRAM, and a 1.5 MB packet buffer, ensuring stable packet forwarding and management responsiveness . With a MAC address table capacity of 8 000 entries, nearly zero packet loss during normal operation, and MTBF rated at 64.5 years, it delivers reliable uptime for demanding applications PoE+ simplifies deployment of powered network devices while enabling power scheduling and LLDP-based power negotiation for efficient usage. Safety and emissions certifications (UL, FCC, CE, RoHS, CISPR‑22 Class A) further validate the switch’s enterprise-grade reliability.

Key Features :

    • 24 × 10/100/1000 Mbps RJ‑45 ports, with 12 PoE+ enabled

    • 185 W PoE+ power budget total

    • 2 × dedicated Gigabit SFP fiber uplink ports

    • Layer 2 switching with VLAN, LACP, QoS, IGMP snooping

    • Management via web GUI, SNMP, LLDP, CLI

    • Fanless design for silent office deployment

    • Loop protection, port mirroring, 802.1X security

    • Energy Efficient Ethernet (IEEE 802.3az) and idle-port power down

    • Support for web-based firmware and dual flash images

    • MAC table: 8 000 entries, jumbo frames, MTBF ~64.5 years

SpecificationDetails
Model Number J9983A
Product Type Smart‑managed Layer 2 Gigabit Ethernet Switch
RJ‑45 Ports 24 (12 PoE+ enabled, 12 non‑PoE)
SFP Uplink Ports 2 × 100/1000BASE-X
PoE Budget 185 W (IEEE 802.3at)
Switching Capacity 52 Gb/s
Forwarding Rate ~38.6 Mpps (64‑byte packets)
Processor / Memory ARM Cortex‑A9 400 MHz, 128 MB SDRAM, 16 MB flash
MAC Address Table 8 000 entries
Power Consumption Idle ~28 W; Max ~240 W
Dimensions (1U) 44.25 × 24.61 × 4.39 cm (17.4 × 9.7 × 1.7 in)
Weight ~3.31 kg (7.3 lb)
Operating Temp/Humidity 0 °C to 40 °C; 15–95% RH non‑condensing
Safety & Emissions UL 60950‑1, FCC Class A, CE, RoHS, CISPR‑22
