Detailed Specifications

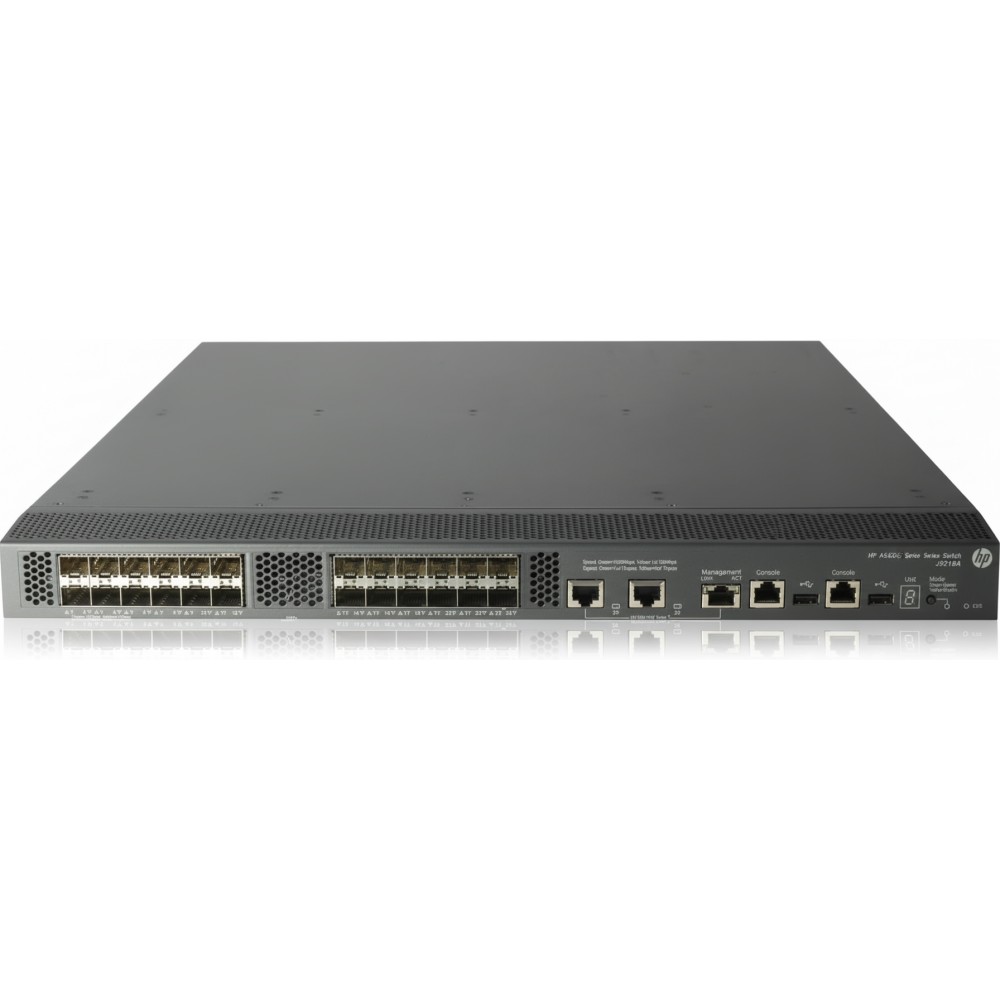

HP JG219A - 24-Port 10 GbE SFP+ Layer 3 Switch
Overview :
The HP JG219A (model 5820AF-24XG) is a rack-mountable Layer 2/3 switch designed for data centres, enterprise aggregation layers or campus backbone deployments. It provides 24 fixed 10 GbE SFP+ ports along with 2 (or depending on revision 4) autosensing 1 GbE RJ-45 ports, enabling high-bandwidth uplinks and consolidation of server-access or aggregation workloads. Built for 1U rack height, front-to-back or back-to-front airflow support, hot-swappable fans and redundant power capability make it suitable for critical infrastructure environments. The switch integrates into existing network management platforms via CLI, web UI or SNMP/IMC and supports IPv4/IPv6 dual-stack routing, making it appropriate for data centre top-of-rack or campus distribution where 10 GbE access and advanced services are required.
Key Features :
24 fixed 1000/10000 SFP+ ports plus autosensing 1 GbE RJ-45 ports
Up to ~484 Gbps switching capacity and ~360 Mpps forwarding rate
Front-to-back or back-to-front airflow for hot/cold aisle deployment
Full dual-stack IPv4/IPv6 Layer 3 routing: OSPF, IS-IS, BGP and VRRP
Hot-swappable fans and optional redundant power supplies
Specification :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | JG219A |
| Product Type | 24-Port 10 GbE SFP+ Layer 3 Switch |
| Ports | 24× 1000/10000 SFP+ fixed, 2× 10/100/1000 RJ-45 autosensing |
| Switching Capacity | 484 Gbps |
| Forwarding Rate | ~360 Mpps (64-byte packets) |
| MAC Address Table | 32,000 entries |
| Form Factor | 1U rack-mount |
| Dimensions (HxWxD) | 1.72 in × 25.98 in × 17.32 in (approx) |
| Weight | 22.05 lbs (10 kg) |
| Operating Temperature | 0 °C to 45 °C |
| Supported Airflow | Front-to-back or back-to-front |
| Redundant Fan Trays | 2 required (hot-swappable) |
| Power Supply Slots | 2 slots, minimum one required |
| IPv6 Routing Support | Static, RIPng, OSPFv3, IS-ISv6, BGP4+ |
