HPEJL074A

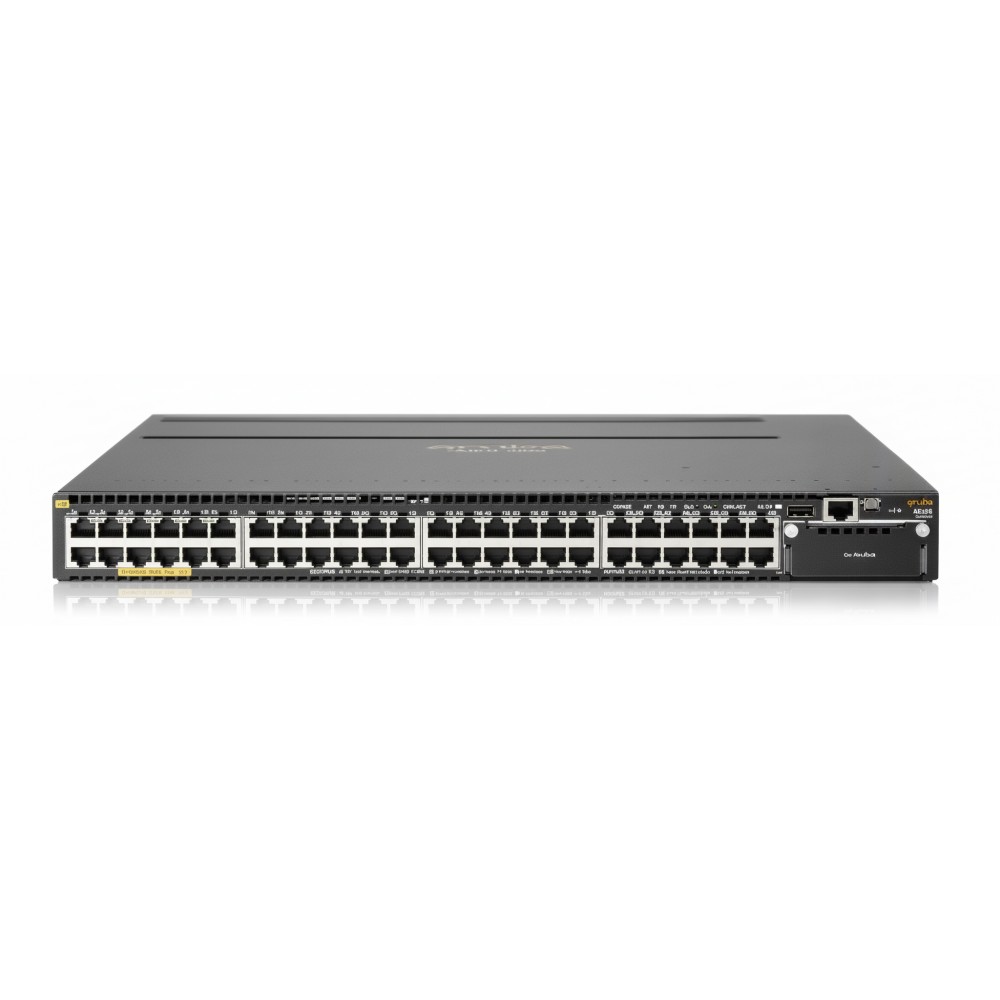

Aruba3810M 48G PoE+ 1-Slot Layer 3 Managed Ethernet Switch

The HPEArubaJL074A 3810M 48G PoE+ 1-Slot Managed Ethernet Switch is a high-performance, Layer 3 Switch managed switch designed for enterprise networks that demand scalability, power efficiency, and modular expansion. With 48 PoE+ ports and advanced management features, it's perfect for powering access points, IP phones, and edge devices.

Features

Part of the Aruba3810M switch series, the JL074A delivers resilient and secure connectivity for midsize to large enterprise environments. Its 48 Gigabit PoE+ ports provide seamless device connectivity with a total PoE budget of up to 740W, supporting devices like VoIP phones, IP cameras, and wireless APs without additional power infrastructure.

Advanced Options

The switch includes a modular slot for customizable uplinks such as 1G/10G/40G options, making it highly adaptable to changing network needs. Advanced Layer 3 capabilities like OSPF, static and RIP routing, and robust security policies ensure efficient traffic management and network segmentation.

Product Key Features

• • 48 × Gigabit PoE+ ports with up to 740W power budget

  • Layer 3 managed switch with dynamic routing support

  • 1 modular expansion slot for flexible uplink options

  • Hot-swappable fan tray and redundant power options

  • Supports stacking and VSF for simplified management

  • Ideal for campus edge and enterprise access layers

---

Reliability & Performance

Designed with high availability in mind, the JL074A offers redundant power supply options and hot-swappable fan trays to minimize downtime. It supports ArubaVirtual Switching Framework (VSF), which allows multiple switches to operate as a single unit, reducing complexity and enhancing performance across distributed environments.

Key Features :

• 48 × 10/100/1000BASE-T PoE+ ports

• Up to 740W PoE+ budget for IP devices

• 1 × Expansion module slot for 10G/40G uplinks

• Layer 3 Switch with OSPF, RIP, and static routing

• VSF stacking up to 10 switches

• Hot-swappable fan tray and power supply

• Front-to-back airflow design

• Enhanced security with ACLs and 802.1X

Specification	Details
Model Number	JL074A
Product Type	Layer 3 PoE+ Managed Ethernet Switch
Port Configuration	48 × 10/100/1000BASE-T PoE+ ports
PoE Standard	IEEE 802.3af/at (PoE+)
PoE Budget	Up to 740 Watts
Expansion Slot	1 × module slot (supports 10G/40G uplinks)
Stacking Support	Yes, ArubaVSF (up to 10 switches)
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Form Factor	1U Rack-Mountable
Cooling	Hot-swappable fan tray
Power Supply	Internal; redundant support available
Dimensions (W × D × H)	17.42 × 13.00 × 1.73 in (442 × 330 × 44 mm)
Weight	~11.7 lbs (5.3 kg)
Operating Temperature	0°C to 45°C
Management Interfaces	Web GUI, CLI, SNMP, RMON
