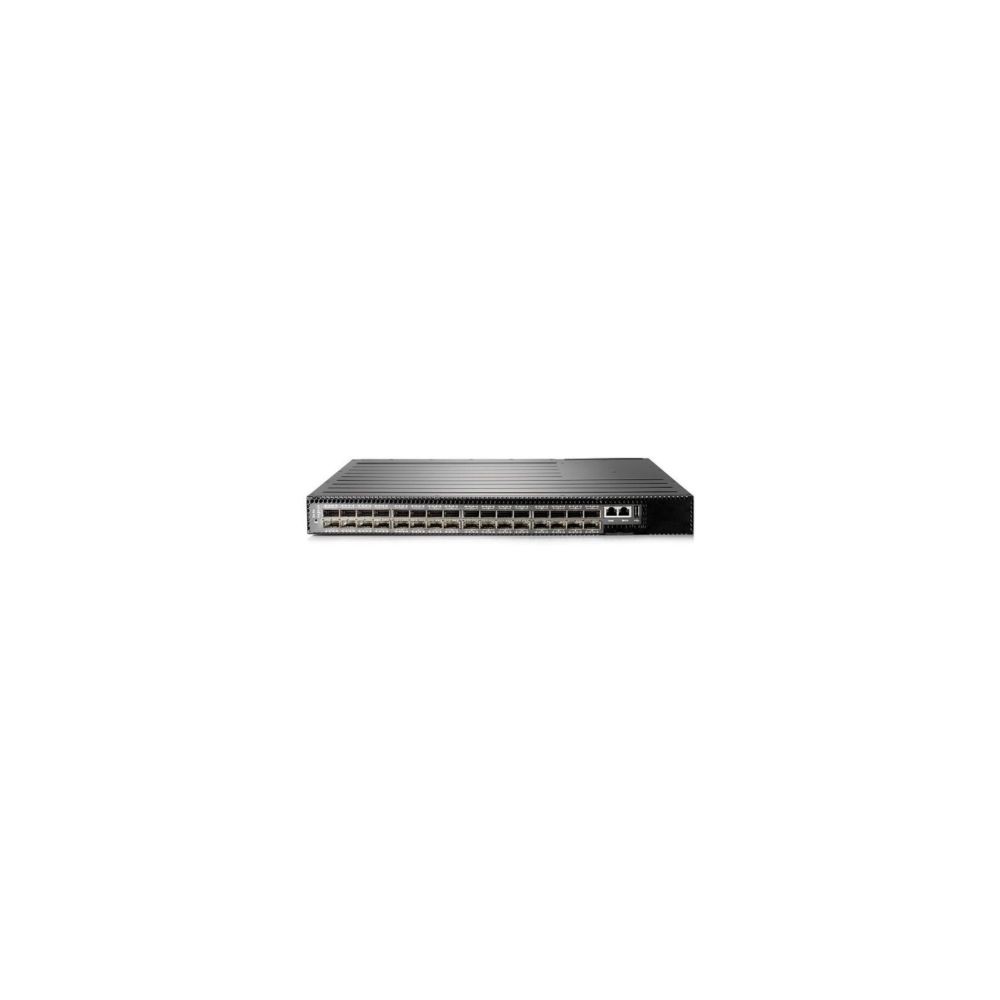

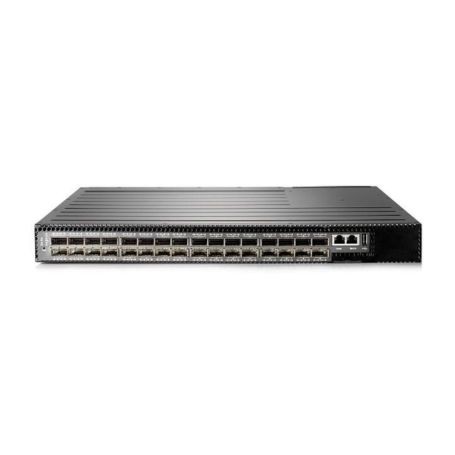

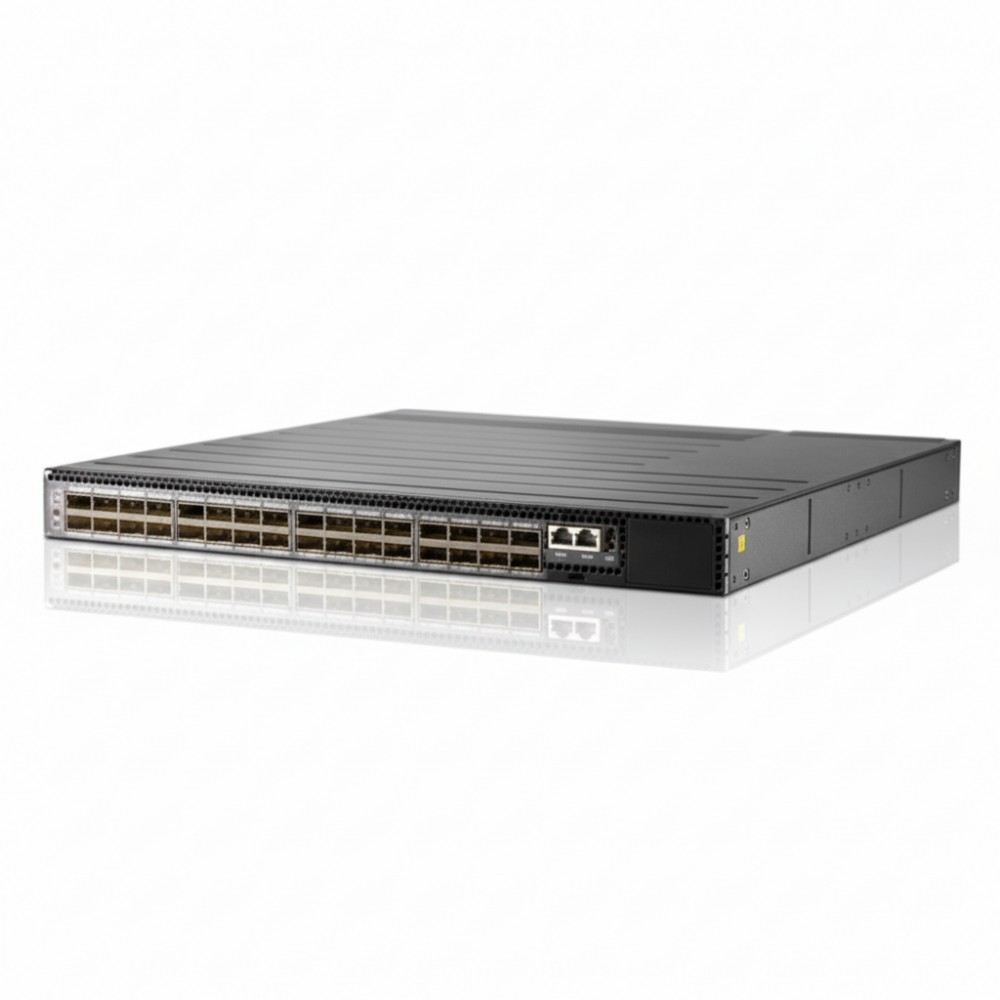

HPE JL165A 6940 32ports AC Front-to-Back Ethernet Switch

New

32-port 40GbE

×




  • New

Detailed Specifications

HPE JL165A

Aruba 6940 32-Port 40GbE QSFP+ Ethernet Switch – AC Front-to-Back Airflow

The HPE JL165A Aruba 6940 32-Port Ethernet Switch is a high-performance, fixed-configuration Layer 3 switch designed for demanding enterprise networks and data center deployments. With 32 QSFP+ ports supporting 40GbE, it offers massive throughput, low latency, and robust scalability in a 1U form factor.

Features

Built to handle today’s data-intensive applications, the Aruba 6940 JL165A provides 32 QSFP+ ports for high-speed uplinks or breakout to multiple 10GbE connections. Designed for scalability and operational flexibility, it supports advanced Layer 2/3 features, dynamic routing protocols, and virtualization-ready services.

Advanced Options

The JL165A also supports IRF (Intelligent Resilient Fabric), enabling multiple switches to operate as one virtual device, simplifying management while enhancing network resilience. Whether deployed at the enterprise core or as part of a spine-leaf architecture, the JL165A ensures uncompromising performance.

Product Key Features

  •  32 × 40GbE QSFP+ high-performance data center ports

  •  Front-to-back airflow for optimal rack cooling

  •  Layer 2 and Layer 3 advanced switching capabilities

  •  IRF stacking support for simplified management

  •  Hot-swappable redundant power supplies and fans

  •  Ideal for core, aggregation, and spine-leaf topologies

Reliability & Performance

With redundant hot-swappable AC power supplies and fans, the JL165A is engineered for always-on environments. Front-to-back airflow makes it ideal for modern data center cooling designs. Its robust hardware platform delivers wire-speed performance with ultra-low latency, while advanced features like ACLs, QoS, and VXLAN support ensure seamless integration into complex environments.

Key Features :

  • 32 × 40GbE QSFP+ ports

  • Layer 2/3 switching with dynamic routing (OSPF, BGP, etc.)

  • Front-to-back airflow for rack-optimized cooling

  • Hot-swappable dual AC power supplies and fans

  • IRF stacking for simplified multi-switch management

  • High throughput and ultra-low latency architecture

  • IPv4/IPv6 dual-stack and policy-based routing

  • Comprehensive QoS, ACL, and traffic control

SpecificationDetails
Model Number JL165A
Product Type Layer 3 Switch Managed Ethernet Switch
Port Configuration 32 × 40GbE QSFP+
Switching Capacity Up to 2.56 Tbps
Forwarding Rate Up to 1,428 Mpps
Airflow Direction Front-to-Back
Power Supply Dual AC, hot-swappable
Redundancy Fans and power supplies
Stacking Support Yes (IRF)
Form Factor 1U Rack-Mountable
Dimensions (W × D × H) 17.32 × 20.7 × 1.73 in (440 × 527 × 44 mm)
Weight ~20.7 lbs (9.4 kg)
Operating Temperature 0°C to 45°C
Software Features OSPF, BGP, PIM, MPLS, VRRP, VXLAN, IPv6
Security 802.1X, ACLs, MACsec, RADIUS, TACACS+
