Detailed Specifications

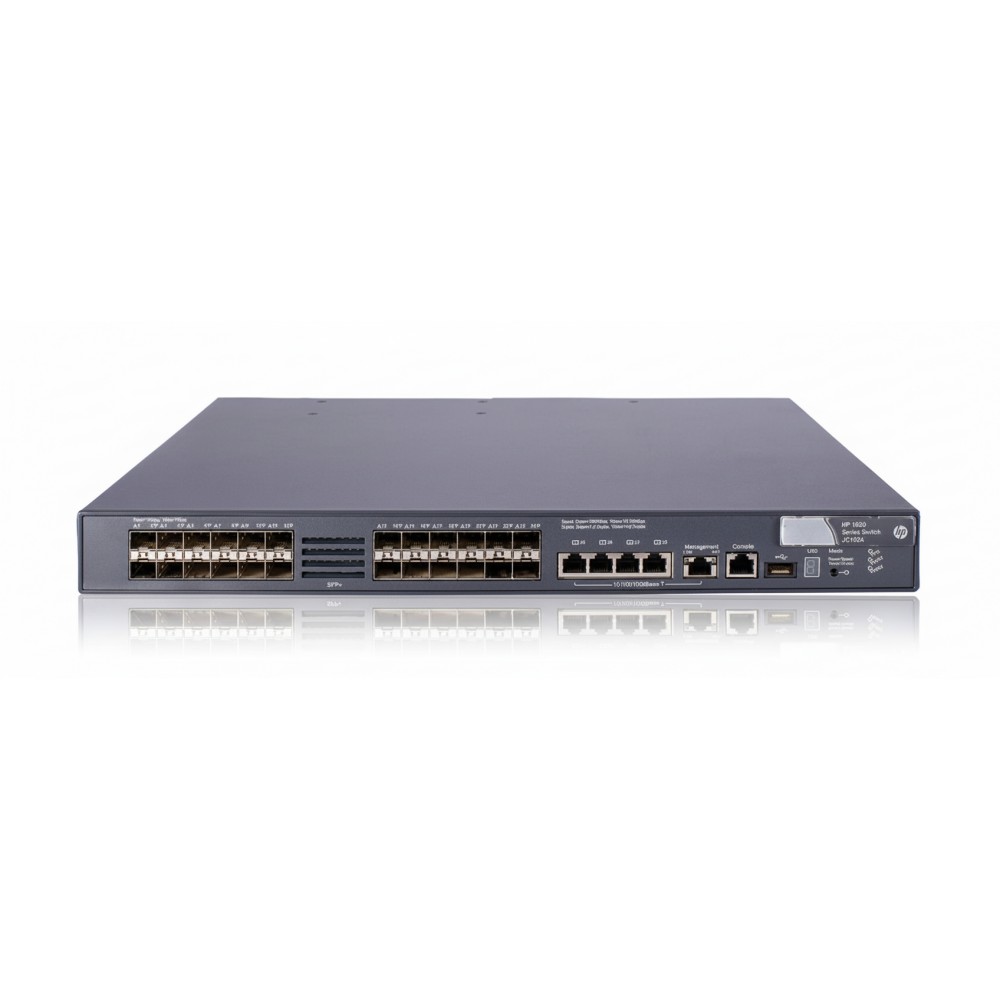

HP JC102A - A5820X-24XG-SFP+ Switch
Overview :
The HP JC102A switch is a fixed-configuration Layer 2/3 device designed for network engineers deploying high-bandwidth aggregation or top-of-rack (ToR) deployments. It provides 24 × 10 Gb SFP+ ports alongside 4 × 1 Gb RJ-45 ports, enabling fibre-backbone connectivity and RJ-45 uplink compatibility. It supports full duplex on all ports and delivers up to 488 Gbps switching capacity with a forwarding rate of up to 363 Mpps, allowing high-throughput, low-latency traffic handling. The form-factor is 1U rack mount, making it suitable for data centre, campus core/distribution or edge deployments where 10 Gb connectivity and IP routing/switching features are required. The unit supports IPv4/IPv6 dual-stack and can integrate into existing network management frameworks via CLI, SNMP and web-based tools.
Key Features :
24 × 10 Gb SFP+ high-density ports for fibre uplinks
4 × 10/100/1000 Mb RJ-45 ports for copper uplinks or access
Switching capacity of 488 Gbps for full-line-rate performance
Forwarding rate up to 363 million packets per second (Mpps)
MAC address table size up to 32,000 entries for large networks
Specifications :
| Item | Specification |
|---|
| Brand | HP |
| Part Number | JC102A |
| Product Type | Switch - Fixed, 1U, Layer 2/3 |
| Ports | 24 × 10 Gb SFP+ + 4 × 10/100/1000 Mb RJ-45 |
| Switching Capacity | 488 Gbps |
| Forwarding Rate | 363 Mpps |
| MAC Address Table | 32,000 entries |
| Form Factor / Dimensions | Width: 17.32 in, Depth: 16.81 in, Height: 1.73 in (≈44.0 × 42.7 × 4.4 cm) |
| Weight | 18.74 lbs (≈8.5 kg) |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Power Supply Slots | 2 slots (minimum 1 required) |
| Fan Tray | Hot-swappable fan tray (model JC096A included) |
| Management Interfaces | RJ-45 serial console, USB 2.0, SNMP v1/v2c/v3, CLI, Web GUI |
| IPv6 Support | Dual-stack IPv4/IPv6 enabled |
