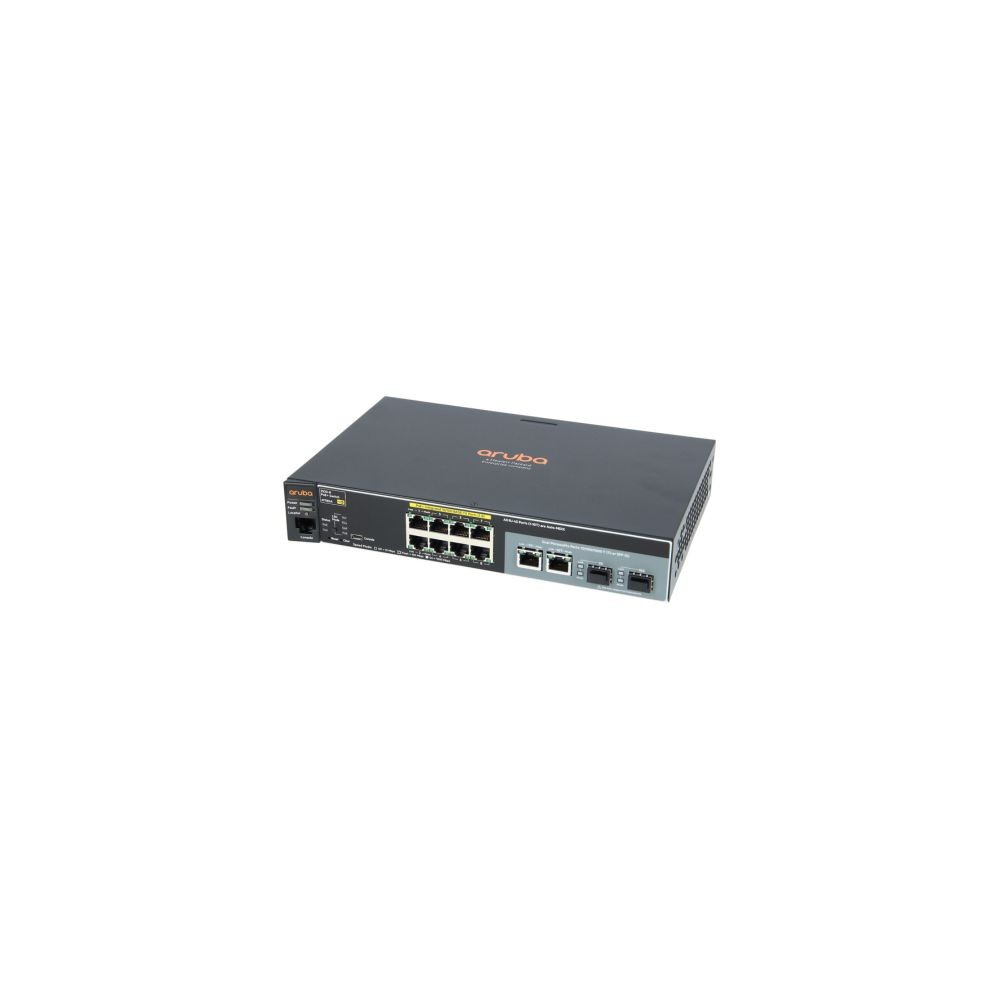

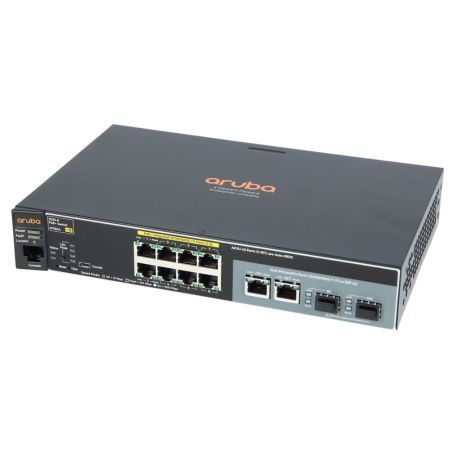

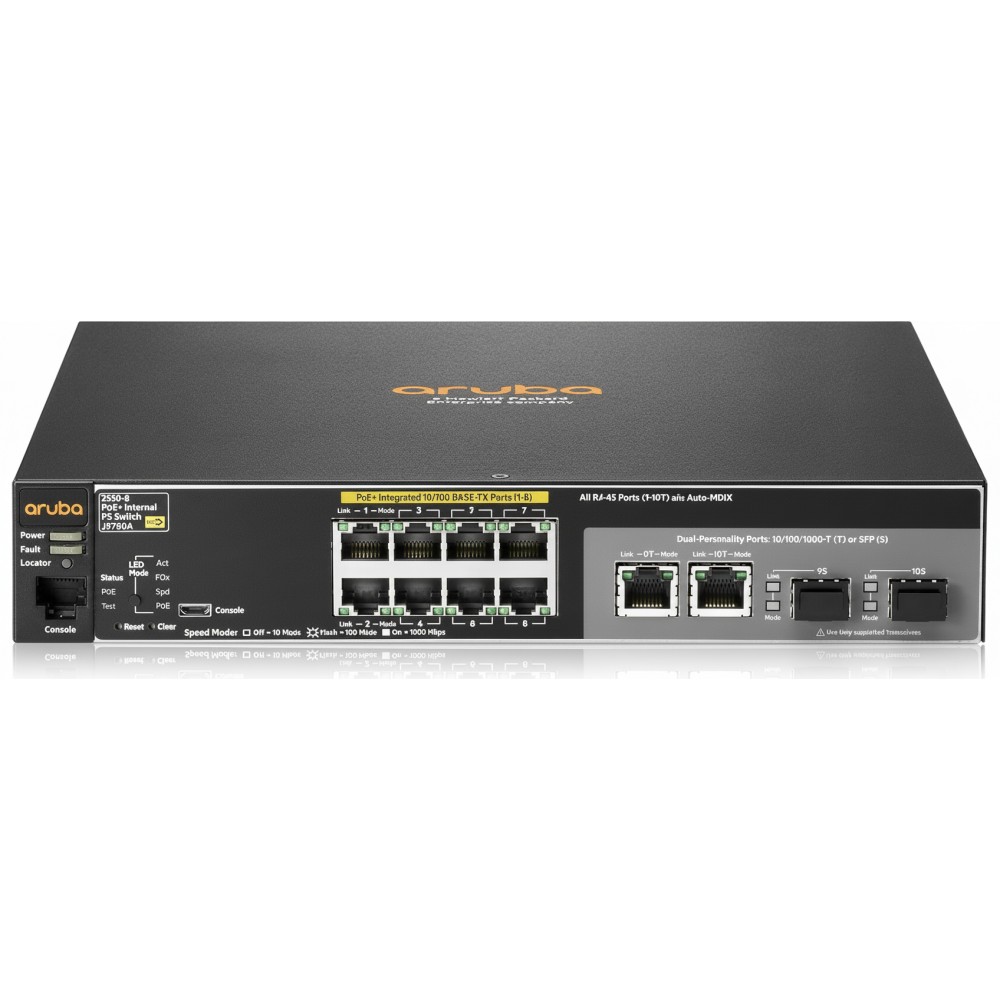

HPE J9780A Aruba 2530 8 PoE+ Managed Ethernet Switch

New

8‑port Fast Ethernet PoE+ switch with dual SFP uplinks.
×




  • New

Detailed Specifications

HPE J9780A

2530‑8 PoE+ Switch — 8‑Port Fast Ethernet PoE+ Layer 2 Managed switch

The HPE Aruba 2530‑8 PoE+ (J9780A) is a fully managed Layer 2 switch offering 8 autosensing Fast Ethernet ports with PoE+ and two dual‑personality uplink ports. Ideal for small businesses, branch offices, or point-of-sale environments, it delivers secure, reliable connectivity in a compact, fanless form factor.

Features

Designed for quiet edge environments, the 2530‑8 PoE+ supports features including VLANs, IEEE 802.1p priority, Access Control Lists, sFlow traffic monitoring, and IPv6 host support . Dual‑personality ports allow use as either Gigabit RJ‑45 or SFP fiber uplinks, providing deployment flexibility

Advanced Options

Powered devices such as Wi‑Fi access points and IP phones can be supported directly via PoE+ ports, delivering up to ~67 W total budget and ~30 W per port (limited if all active) . Aruba extended warranty covers lifetime hardware support and software updates, ensuring consistent reliability and longevity

Product Key Features

    •  8 × 10/100 Mbps autosensing RJ‑45 PoE+ ports (IEEE 802.3at)

    •  Dual‑personality ports: 2 × RJ‑45 gigabit or SFP fiber uplinks

    •  Up to 67 W PoE+ total power budget

    •  Layer 2 switching with VLAN, ACLs, QoS, and sFlow

    •  Fanless, compact 1U design for quiet deployments

    •  Easy management via Web GUI, CLI, SNMP, AirWave or Aruba Central

Reliability & Performance

This fanless switch ensures silent operation while maintaining robust performance. It delivers up to 5.6 Gbps switching capacity and forwarding throughput of ~4.1 Mpps with sub‑1.3 µs latency for 100 Mb and 1 Gb traffic

Key Features :

  • 8 × 10/100 Mbps auto‑sensing PoE+ RJ‑45 ports (IEEE 802.3at)

  • 2 × dual‑personality Gigabit RJ‑45 or SFP uplinks

  • Total PoE+ budget: ~67 W (30 W max per port)

  • Layer 2 switching with VLAN, QoS, ACL, and sFlow support

  • Fanless, 1 U rackmount or desktop/wall mounting

  • IPv4 & IPv6 host support, access security via ACLs

  • Management via CLI, Web GUI, SNMP v1/v2/v3, Aruba Central, AirWave

  • Auto‑MDI/MDI‑X, Energy Efficient Ethernet (IEEE 802.3az)

  • Compact and low‑profile design for desktop or rack

  • Lifetime warranty and ongoing firmware updates

SpecificationDetails
Model Number J9780A
Product Type Fully Managed Layer 2 PoE+ Ethernet Managed switch
Ports 8 × 10/100 Mbps RJ‑45 PoE+
Uplink Ports 2 × dual‑personality Gigabit (RJ‑45 or SFP)
PoE Support IEEE 802.3af/at (PoE+)
Total PoE Power Budget ~67 W (max ~30 W/port when limited)
Switching Capacity 5.6 Gbps
Forwarding Rate ~4.1 Mpps (64‑byte packets)
Latency < 1.3 µs for 100 Mb & 1 Gb traffic
MAC Table Size 16,000 entries
QoS Support IEEE 802.1p with 8 priority queues
VLAN Support Up to 4094 VLAN IDs
Management Interfaces CLI, Web GUI, SNMP v1/v2/v3, Aruba Central, AirWave
Energy Efficiency IEEE 802.3az EEE
Noise Level Fanless (silent)
Dimensions (1U Rackmount) 10″ × 6.28″ × 1.75″ (25.4 × 15.95 × 4.45 cm)
Weight ~2.0 lb (0.91 kg)
Operating Temp/Humidity 0 °C to 45 °C; 15 %–95 % non‑condensing
