HPEJ8693A

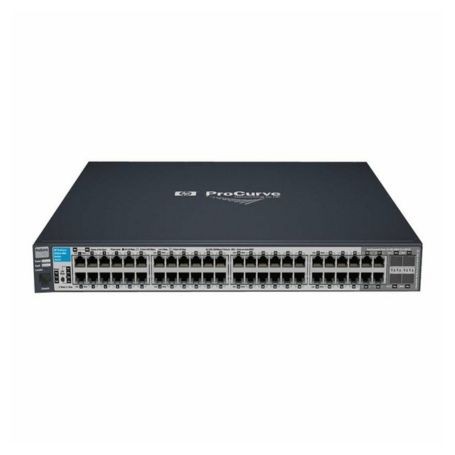

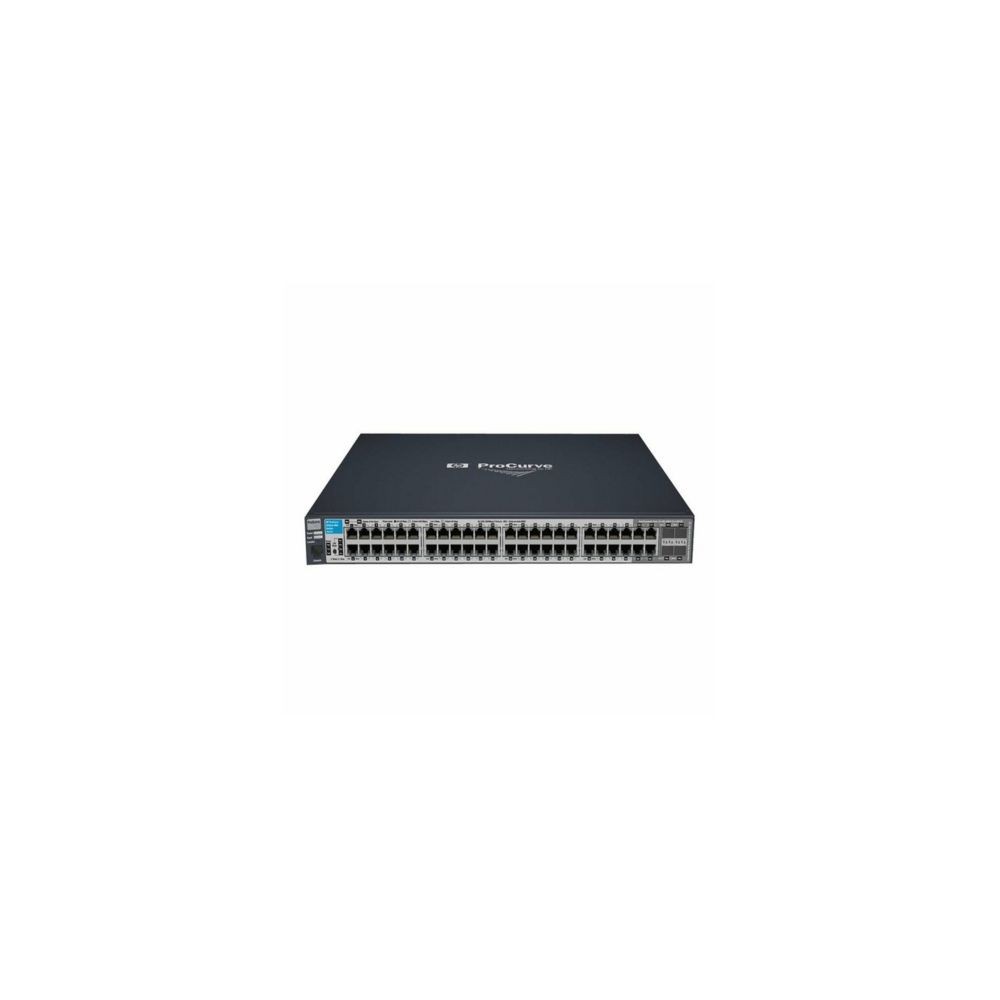

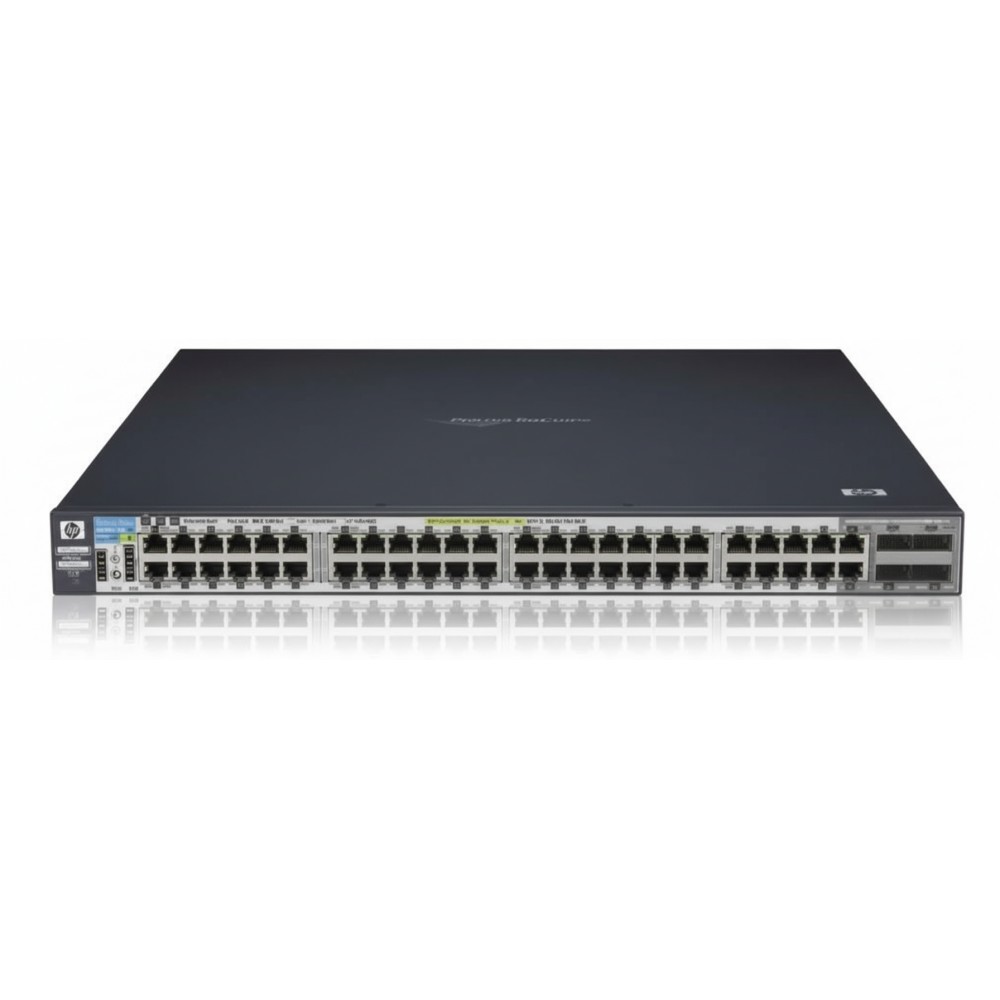

ProCurve 3500yl-48G-PWR 48-Port PoE+ Layer 3 Managed Ethernet Switch

The HPEJ8693A ProCurve 3500yl-48G-PWR is a high-performance Layer 3 Managed Ethernet Switch designed to provide Gigabit connectivity and Power over Ethernet (PoE) across 48 ports. Built for enterprise edge environments, this switch delivers robust traffic control, scalability, and security for demanding IT infrastructures.

Features

With its powerful Layer 3 routing capabilities and 48 auto-sensing Gigabit PoE ports, the 3500yl-48G-PWR enables organizations to consolidate wired access while supporting critical endpoint devices like IP phones, wireless access points, and surveillance cameras. Its 437W PoE budget ensures sufficient power for dense deployments.

Advanced Options

Featuring 4 dual-personality ports for either copper or fiber uplinks and a switching capacity of up to 160 Gbps, this switch ensures fast, reliable traffic flow. Enterprise-class features like QoS, ACLs, IPv6, and policy-based routing make it an ideal choice for schools, offices, and large campus networks.

Product Key Features

• • 48 × 10/100/1000 PoE-enabled RJ-45 ports for high-density access

  • 802.3af PoE with 437W total power budget to power IP devices

  • Advanced Layer 3 switching with static, RIP, and OSPF routing

  • 4 dual-personality ports (RJ-45 or SFP) for uplinks

  • Integrated security, QoS, and traffic management tools

  • Ideal for enterprise edge, schools, or high-demand networks

---

Reliability & Performance

The 3500yl-48G-PWR is built for uptime and long-term service in dynamic environments. It includes redundant power supply support, hot-swappable fans, and dynamic layer 3 routing for seamless network operations. With intuitive management via CLI, SNMP, or ProCurve Manager, it offers administrators complete control while ensuring optimal performance and energy efficiency.

Key Features :

• 48 × 10/100/1000BASE-T PoE ports

• 4 dual-personality ports: RJ-45 or SFP

• Up to 437W total PoE power

• Layer 3 routing: static, RIP, OSPF

• 160 Gbps switching capacity

• 101 Mpps forwarding rate

• Advanced security and access controls

• IPv6 support and policy-based QoS

• Hot-swappable fans and redundant power option

• Web GUI, CLI, SNMP v1/v2c/v3

Specification	Details
Model Number	J8693A
Product Type	Layer 3 Managed Ethernet Switch
Port Count	48 × 10/100/1000 PoE RJ-45
Uplink Ports	4 × dual-personality (RJ-45 or SFP)
Switching Capacity	160 Gbps
Forwarding Rate	101 Mpps
PoE Budget	Up to 437W (802.3af PoE)
Routing Capabilities	Static, RIP, OSPF
MAC Address Table	64,000 entries
Jumbo Frame Support	Up to 9,216 bytes
Management	CLI, Web GUI, SNMP v1/v2c/v3
Redundant Power Support	Yes (optional RPS)
Operating Temperature	0°C to 45°C
Dimensions	17.5″ × 17.4″ × 1.8″ (44.5 × 44.2 × 4.4 cm)
Weight	13.7 lbs (6.2 kg)
Mounting	1U Rackmount
