Detailed Specifications

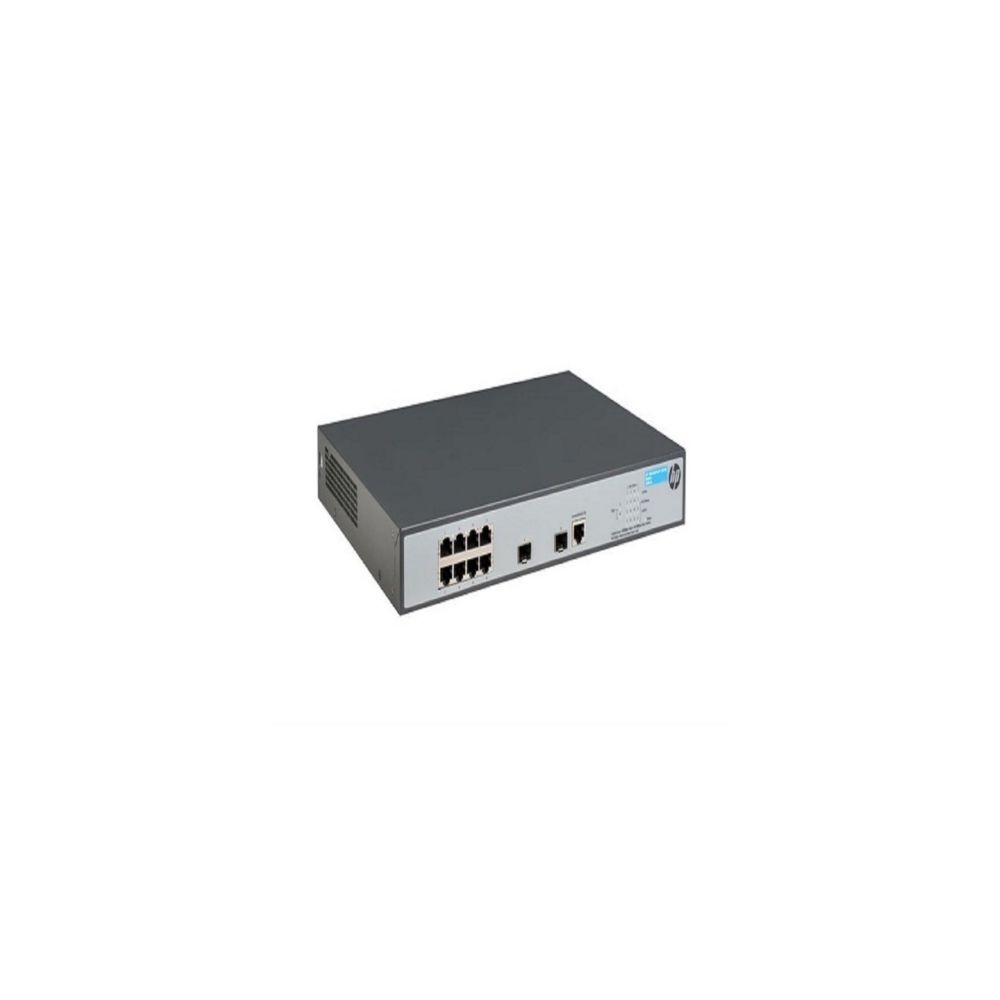

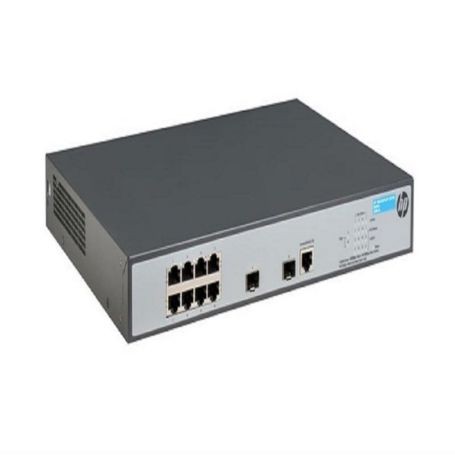

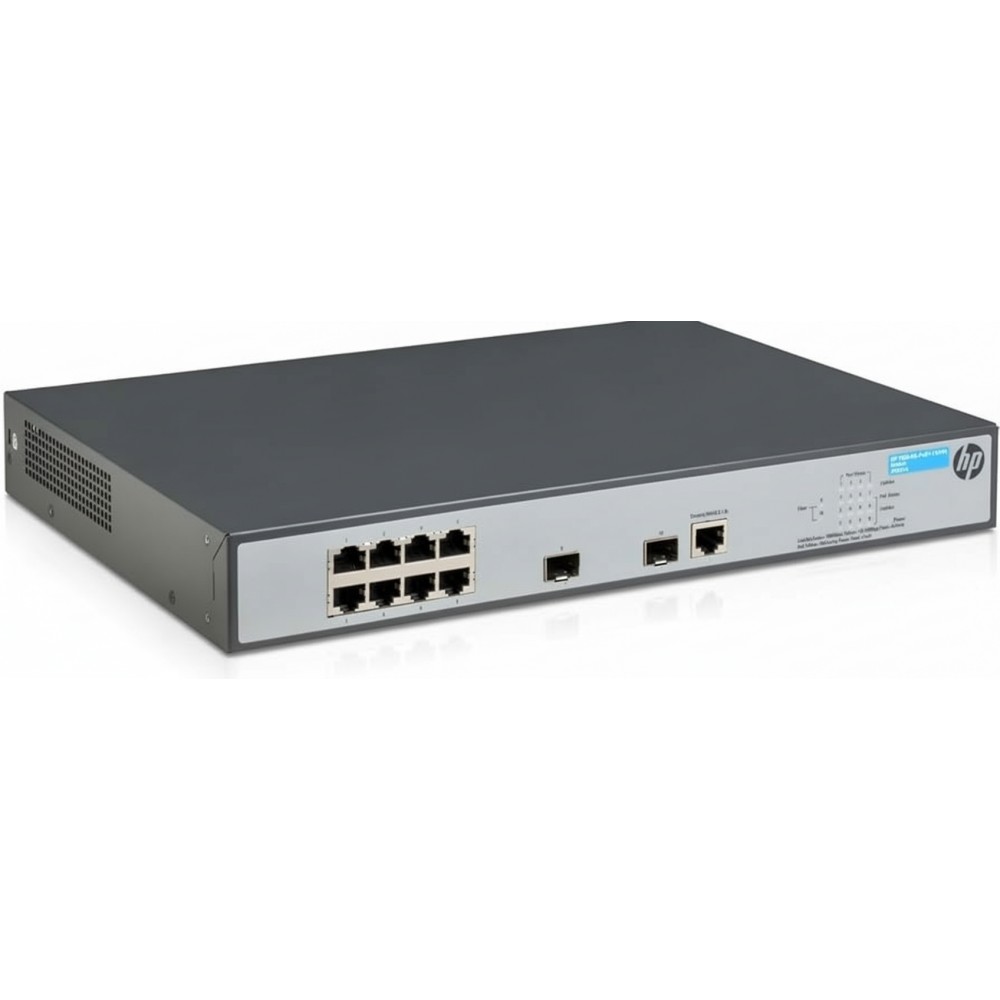

OfficeConnect 1920-8G PoE+ (65W) 8-Port Gigabit PoE+ Ethernet Switch
The HPEJG921A OfficeConnect 1920-8G PoE+ Switch is a compact, intelligent Gigabit switch designed for small business connectivity. Featuring eight PoE+ ports and fiber uplinks, it supports essential Layer 2/3 features to efficiently power access devices and simplify network management.
Features
As part of the OfficeConnect 1920 Series, the JG921A offers enterprise-grade functionality in a simple-to-manage format. It delivers eight PoE+ capable RJ-45 ports delivering up to 30 W per port (65 W total) and two dedicated SFP ports for flexible copper or fiber uplinks
Advanced Options
This model supports Layer 2 features like VLAN tagging, link aggregation, STP/RSTP/MSTP, along with static IPv4/IPv6 routing, ACLs, and QoS×ideal for segmented, secure edge networks
Product Key Features
8 × auto-sensing Gigabit PoE+ RJ-45 ports (up to 30 W each, 65 W budget)
65 W PoE+ total power suitable for small deployments
2 × dedicated Gigabit SFP uplink ports for fiber connectivity
Layer 2 switching plus static IPv4/IPv6 routing, VLANs, QoS, ACLs
Security features include ARP/DoS protection, port-based 802.1X authentication
Fanless design ensures acoustically silent operation
Reliability & Performance
With a fanless, silent design, the JG921A is ideal for noise-sensitive environments. It delivers a switching capacity of 20 Gb/s and throughput of approximately 14.8 Mpps for 64-byte packets. Hardware includes 128 MB SDRAM, 32 MB flash, and a MIPS CPU×ensuring reliability and uptime with an MTBF of ~76 years
Key Features :
8 × 10/100/1000 Mbps PoE+ ports (IEEE 802.3af/at, up to 65 W total)
2 × dedicated Gigabit SFP uplink ports
Layer 2 switching and static IPv4/IPv6 routing
VLANs, QoS, ACLs, STP/RSTP/MSTP support
ARP spoofing/DoS Protection, 802.1X port-based access control
Fanless silent operation with low energy consumption
Simple web-based GUI plus SNMP management, limited CLI
Dual-firmware image support for reliability
| Specification | Details |
|---|
| Model Number | JG921A |
| Series | HPEOfficeConnect 1920 8G PoE+ (65 W)Ethernet Switch |
| Copper Ports | 8 × auto-negotiating 10/100/1000 Mbps PoE+ RJ-45 |
| Uplink Ports | 2 × dedicated 100/1000 Mbps SFP |
| PoE Support | IEEE 802.3af/at, max 30 W per port, 65 W total |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | ~14.8 Mpps (64-byte packets) |
| Routing Support | Static IPv4 and IPv6 (up to 32 routes each) |
| Memory / Processor | MIPS CPU @ 500 MHz, 128 MB SDRAM, 32 MB Flash, 512 KB packet buffer |
| MAC Table Size | 8,192 entries |
| Dimensions (W×D×H) | 33 × 23 × 4.4 cm (12.99 × 9.06 × 1.73 in) (1U height) |
| Weight | ~2.95 kg (6.5 lb) |
| Operating Temp / Humidity | 0-40 °C; 10-90% non-condensing |
| Warranty | Limited Lifetime (with next-Business-Day advance replacement) |
