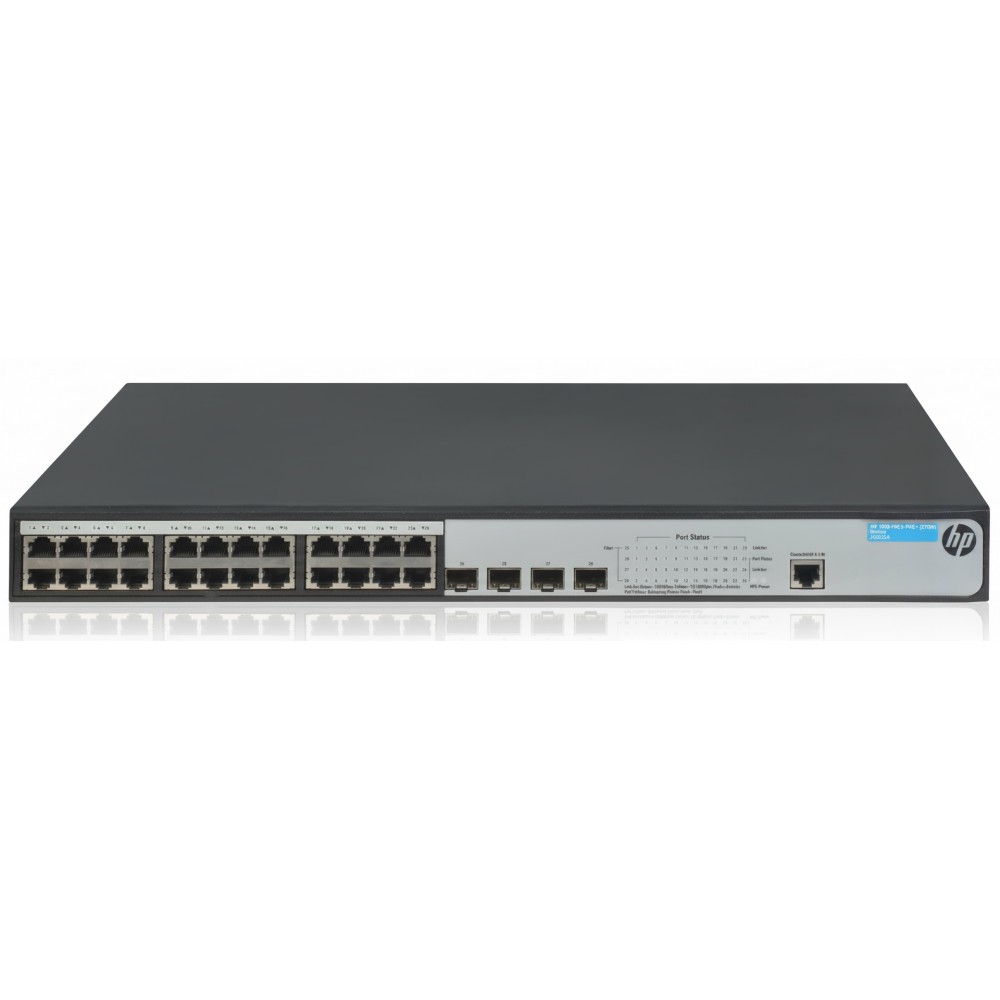

HPE JG926A 1920-24G-PoE+ Gigabit Ethernet Switch

New

24‑port

×




  • New

Detailed Specifications

HPE JG926A

1920‑24G‑PoE+ (370 W) Layer 2/3 Managed Ethernet Switch PoE+

The HPE JG926A is a 24‑port managed Gigabit PoE+ switch from the OfficeConnect 1920 family, designed to deliver enterprise-level edge connectivity for SMBs. With support for fiber uplinks, comprehensive Layer 2/3 features, and robust security,it’s ideal for powering access points, IP phones, and cameras in business networks.

Features

This switch includes 24 auto-sensing PoE+ ports supporting IEEE 802.3af/at, delivering a total 370 W power budget—sufficient to support dense deployments of powered devices. The four 1 Gb SFP ports provide flexible fiber uplinking and can operate alongside copper ports simultaneously to deliver up to 28 Gigabit interfaces

Advanced Options

The JG926A supports advanced Layer 2 functions like VLANs, link aggregation, spanning tree protocols (STP/RSTP/MSTP), QoS, and port mirroring. It also includes Layer 3 static routing and IPv6 support, offering scalable traffic segmentation and security control via ACLs and 802.1X authentication

Product Key Features

  •  24 × Gigabit PoE+ RJ‑45 ports delivering up to 30 W per port (370 W total)

  • 4 × dedicated Gigabit SFP uplink ports for fiber connectivity

  •  Layer 2 switching with static IPv4/IPv6 routing, ACLs, and STP/RSTP/MSTP support

  •  Built‑in protection vs ARP spoofing and DoS attacks, plus ACL and 802.1X network security

  •  Dual-image firmware and web‑based/limited CLI management interfaces

  •  Up to 56 Gbps switching capacity and 41.7 Mpps forwarding rate

Reliability & Performance

Equipped with a robust MIPS 500 MHz CPU, 128 MB SDRAM, and 32 MB flash memory, this switch delivers reliable and efficient performance with a packet buffer of 4.1 MB. It operates silently within typical office conditions and boasts a Mean Time Between Failures (MTBF) of approximately 65.8 years. Redundant firmware images and VLAN-based access control ensure operational resilience and security

Key Features :

    • 24 × 10/100/1000 Mbps RJ-45 PoE+ ports (30 W)

    • 4 × dedicated 1 Gb SFP uplink ports

    • Layer 2 switching + static Layer 3 routing (IPv4 & IPv6)

    • VLANs, ACLs, QoS, STP/RSTP/MSTP, port mirroring

    • ARP attack and DOS protection, 802.1X network login support

    • Web GUI, SNMP (v1/v2c/v3), limited CLI, dual firmware images

    • Energy-efficient design with PoE management

    • Rack-mountable 1U form factor, optional redundant power with RPS1600

SpecificationDetails
Model Number JG926A (1920‑24G‑PoE+ 370 W)
Port Count 24 × PoE+ RJ‑45 Gigabit; 4 × Gigabit SFP fiber ports Ethernet Switch
PoE Standard IEEE 802.3af/at (PoE/PoE+)
Total PoE Budget 370 W (supports up to 30 W per port)
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps (64‑byte packets)
Processor / Memory MIPS @ 500 MHz; 128 MB SDRAM; 32 MB flash; 4.1 MB buffer
Routing Support Layer 3 static routing (IPv4 & IPv6, 32 routes)
MAC Table Size 8,192 addresses
Management Web GUI, SNMP v1/2c/3, limited CLI, IMC support
Security Features ACLs, ARP/DoS protection, 802.1X, VLAN, link aggregation
Dimensions (WxDxH) 44 × 26 × 4.4 cm (17.3×10.2×1.7 in) (1U rack-mount)
Weight ~7.5 lb (3.4 kg)
Power / PoE Input 100–240 VAC, max 474 W; 370 W allocable PoE
Operating Temp / Humidity 0–40 °C; 10–90% non-condensing humidity
