HPEJ9727A

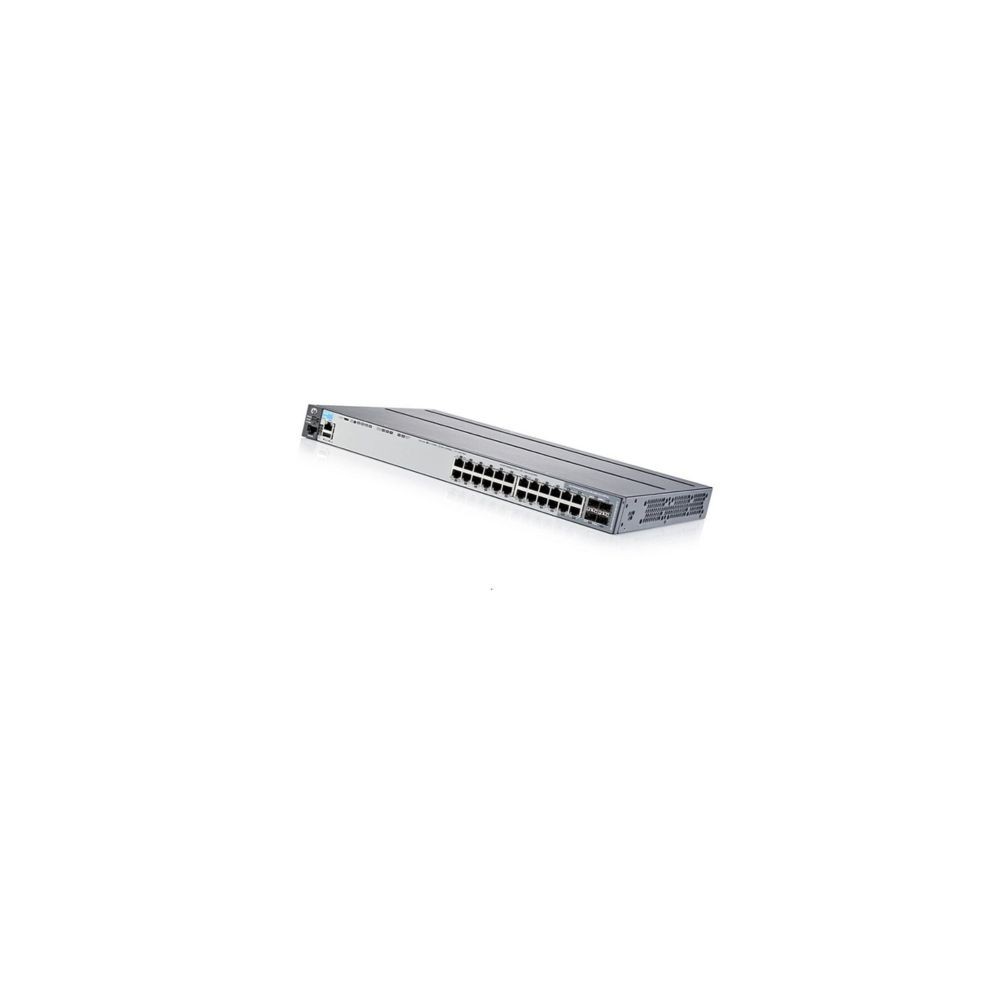

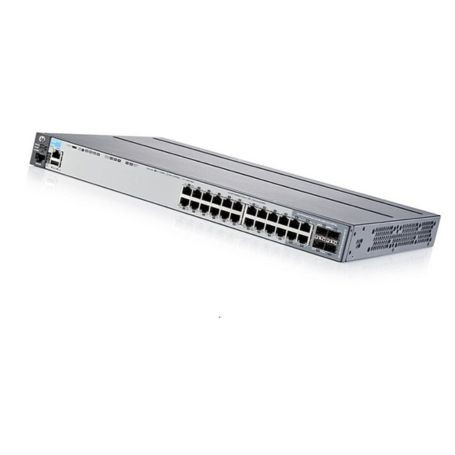

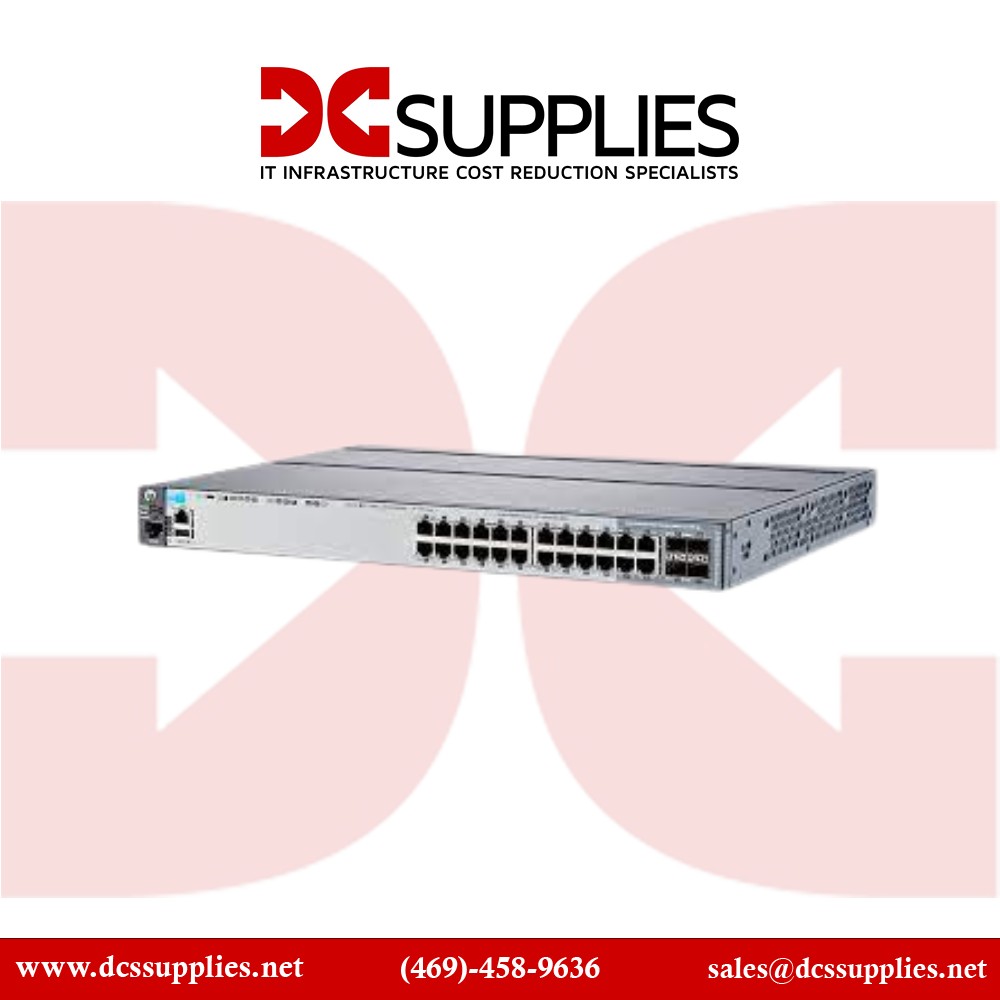

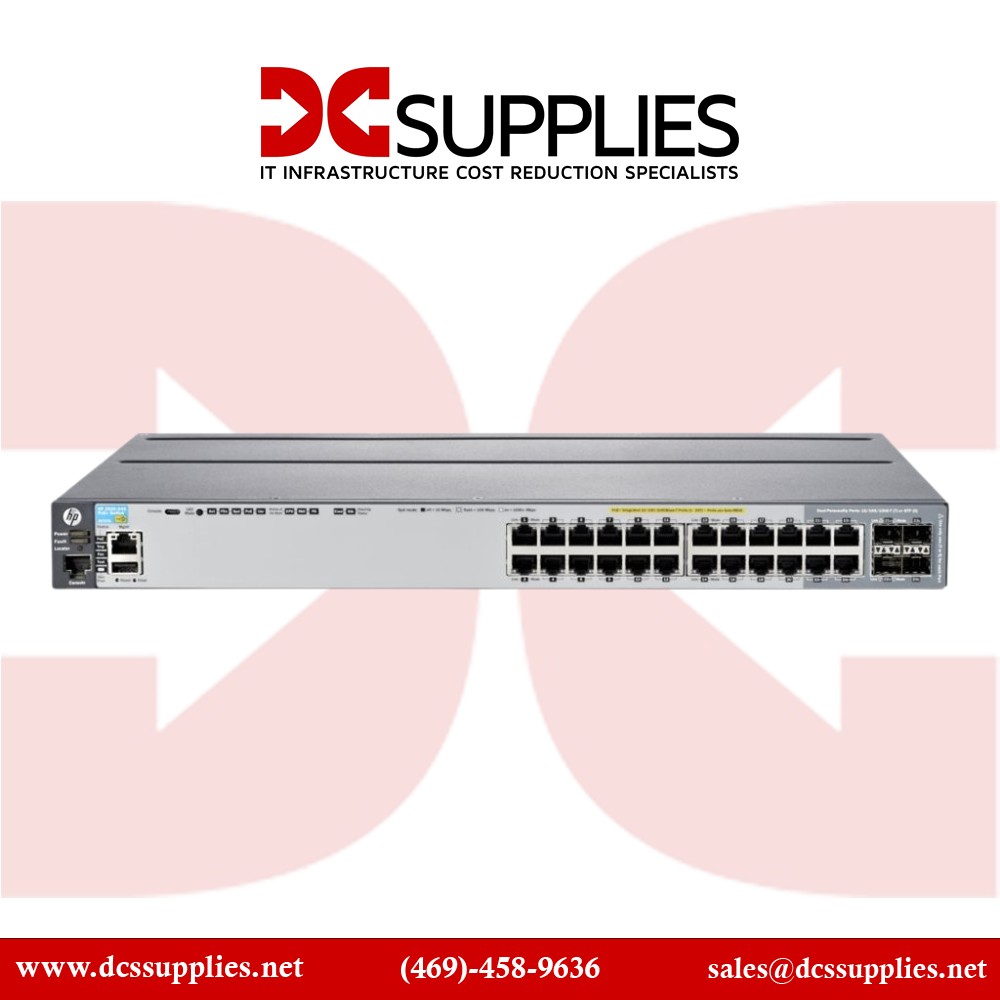

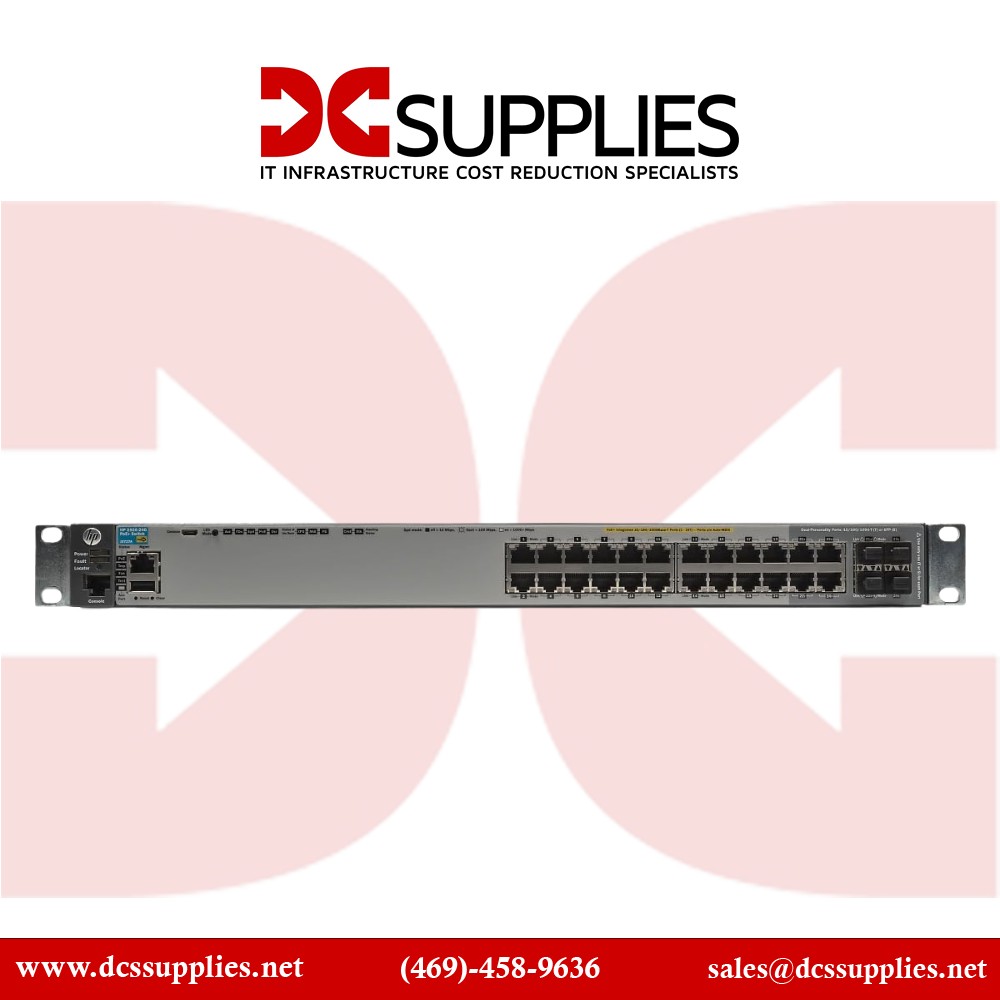

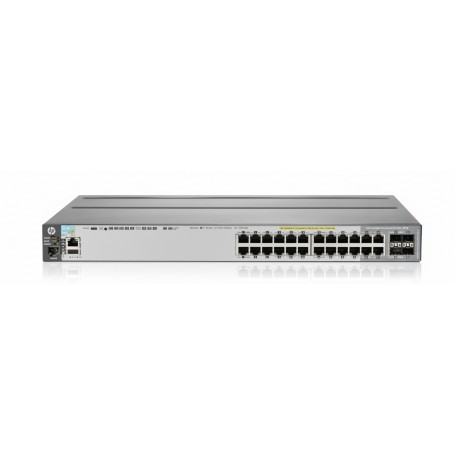

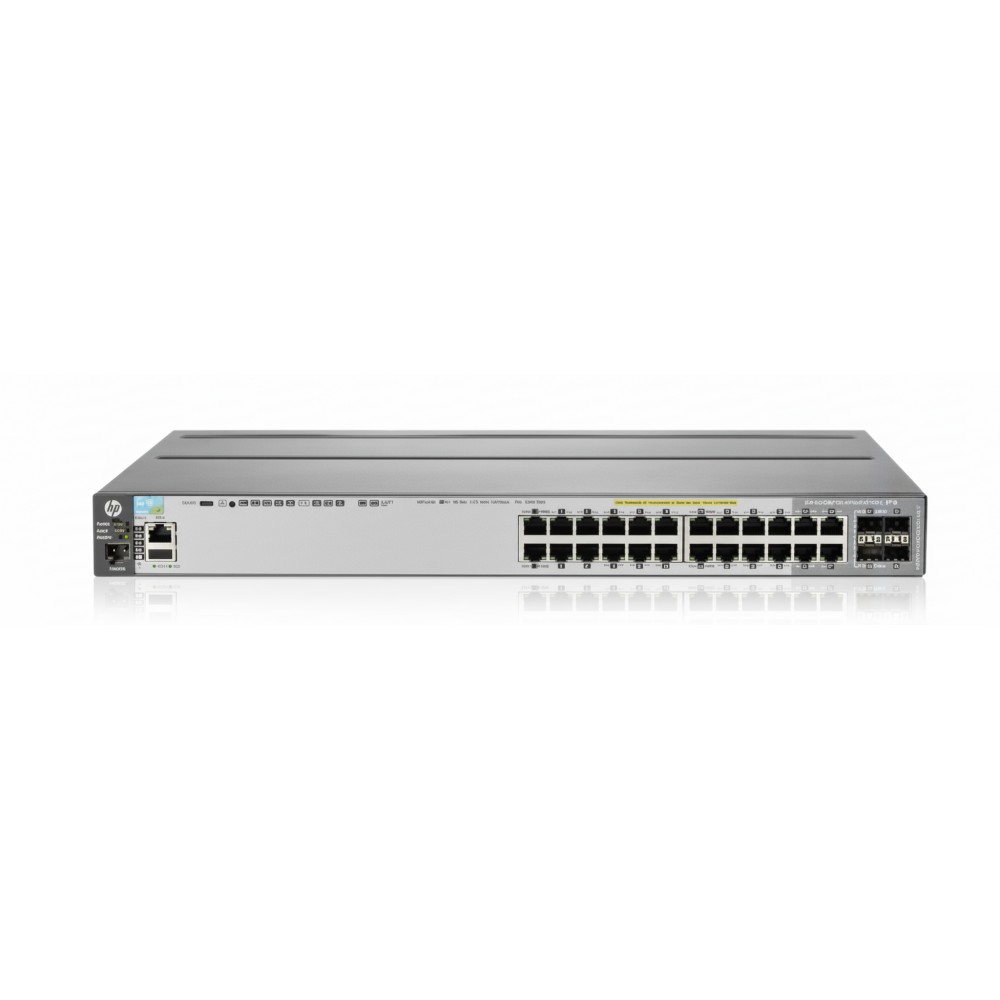

ArubaJ9727A 2920 24G PoE+Layer 3 SwitchManaged Ethernet Switch

The HPEArubaJ9727A 2920 24G PoE+ Switch is a high-performance, stackable Layer 3 Switch managed switch designed to power modern enterprise networks. With 24 Gigabit PoE+ ports, flexible uplinks, and robust routing features, it delivers the scalability and control required for secure, converged infrastructures.

Features

Part of the Aruba2920 Switch Series, the J9727A enables easy deployment in wired and wireless edge environments. Its 24 PoE+ ports supply up to 30W per port, making it ideal for powering access points, VoIP phones, and security devices without needing separate power sources.

Advanced Options

The switch includes 4 dual-personality uplink ports (either RJ-45 or SFP) for high-speed fiber or copper connections. With Layer 3 Switch capabilities like static and RIP routing, access control, and dynamic segmentation, it provides secure, scalable performance for growing campus networks or branch offices. Optional stacking modules allow physical stacking for simplified management and redundancy.

Product Key Features

• • 24 × Gigabit Ethernet PoE+ ports with up to 370W power budget

  • 4 × Dual-Personality Ports (RJ-45 or SFP) for uplink flexibility

  • Layer 3 static and RIP routing with robust network controls

  • Stackable with up to 4 switches via backplane stacking modules

  • Supports ACLs, QoS, and 802.1X network security features

  • Designed for enterprise edge, campus, and high-density deployments

---

Reliability & Performance

The Aruba2920 delivers enterprise-grade resiliency with redundant power options, modular stacking, and hot-swappable power supplies. Its advanced management features support SNMP, RMON, sFlow, and AirWave, enabling full network visibility. With energy-efficient operation and quiet acoustic design, it's a fit for both wiring closets and open offices.

Key Features :

• • 24 × 10/100/1000 PoE+ ports

  • 4 × dual-personality uplink ports (RJ-45/SFP)

  • Up to 370W PoE+ power budget

  • Layer 3 static and RIP routing

  • Stacking support with optional modules

  • Access Control Lists (ACLs) and QoS

  • 1U rack-mountable form factor

  • ArubaAirWave and Central management ready

Specification	Details
Model Number	J9727A
Product Name	Aruba2920 24G PoE+ Managed Ethernet Switch
Ports	24 × 10/100/1000 RJ-45 PoE+
Uplink Ports	4 × Dual-Personality (RJ-45/SFP)
PoE Standard	IEEE 802.3af/at (PoE/PoE+)
PoE Budget	Up to 370W
Layer Support	Layer 2 and Layer 3 (Static, RIP routing)
Stacking	Up to 4 switches (optional stacking module required)
Form Factor	Rack-mountable (1U)
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
Management	Web GUI, CLI, SNMP, RMON, ArubaAirWave
Operating Temperature	0°C to 45°C
Weight	Approx. 9.2 lb (4.2 kg)
