Detailed Specifications
HPE JL001A

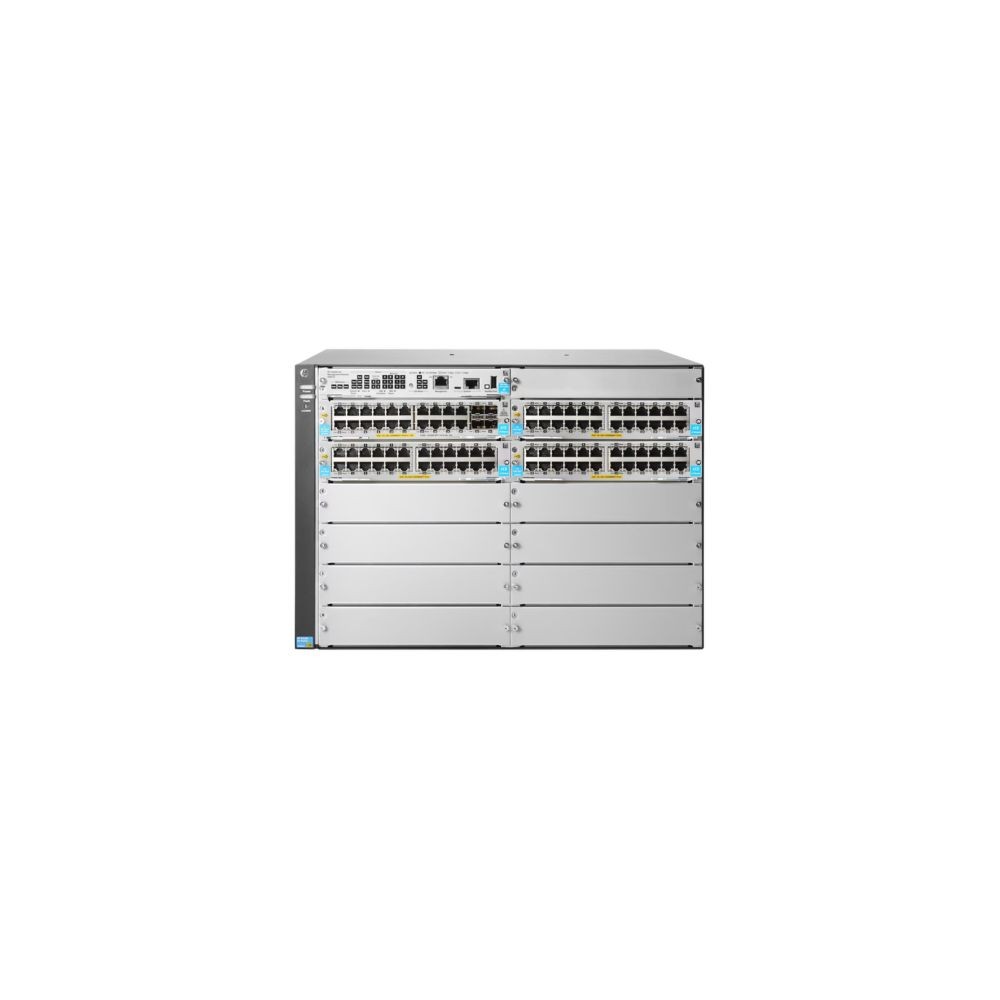

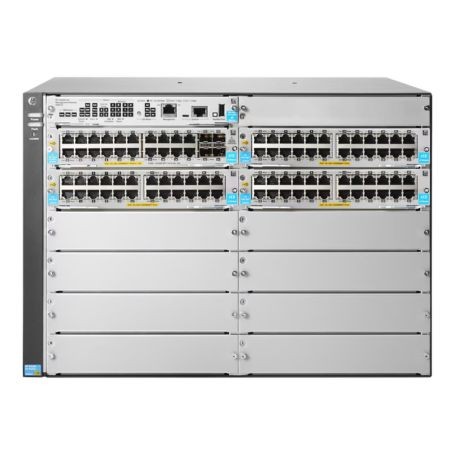

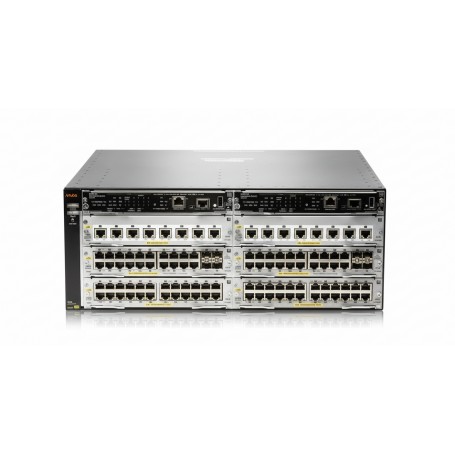

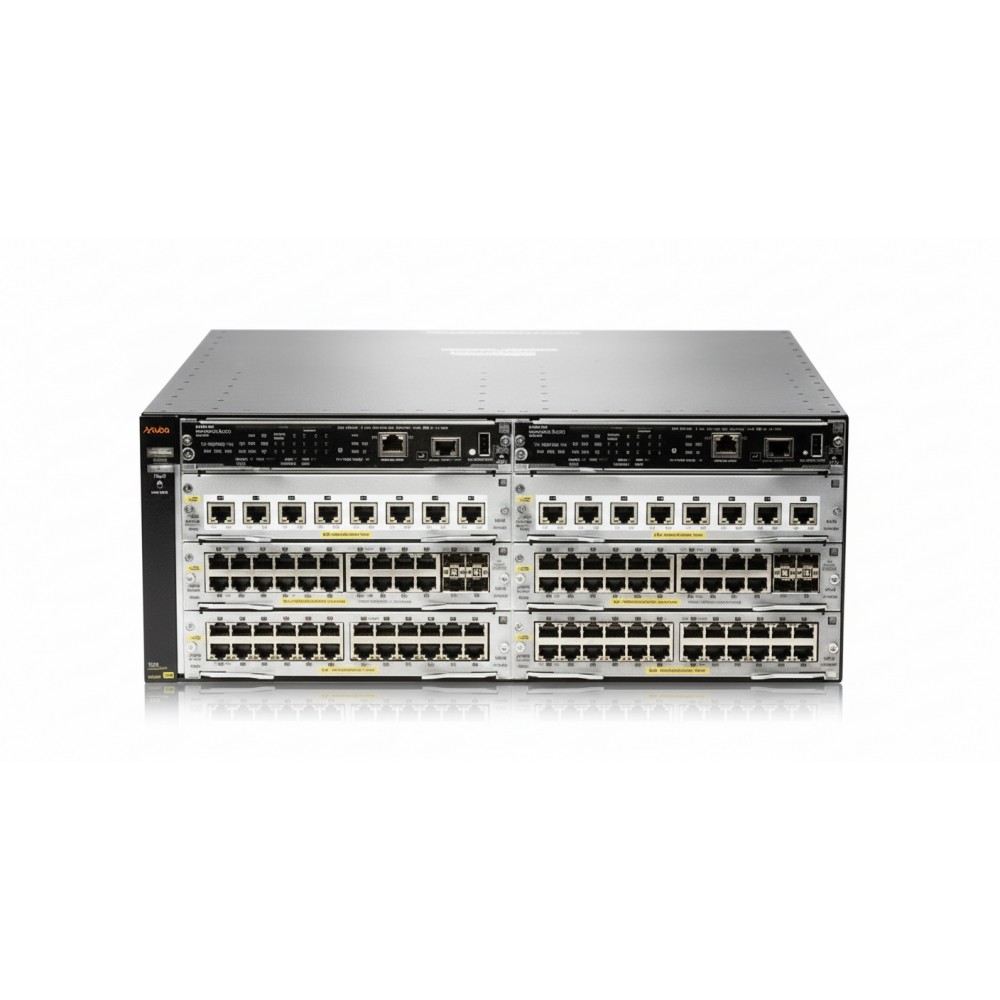

The HPE Aruba Networking 5412R (JL001A) is a high-density, modular Layer 3 switch designed for campus access and aggregation. It offers 92 PoE+ 1G ports plus 4 SFP+ uplinks and supports advanced SDN features×ideal for mobile-first enterprise environments powering high-performance Wi-Fi, VoIP, and IoT deployments.
Features
Built using Aruba 6th-generation ProVision ASIC, the 5412R delivers enterprise resiliency and programmability, offering a 2 Tbps backplane and sub-2.1 µs latency for smooth traffic handling . The modular design accommodates up to 12 line cards×supporting combinations of RJ-45 PoE+, multi-gigabit ports, SFP+, and 40 Gb uplinks across the chassis
Advanced Options
Software-defined flexibility is enabled via OpenFlow 1.0/1.3 and REST APIs, while integration with Aruba ClearPass, AirWave, and Central simplifies unified wired/wireless policy enforcement and monitoring across campus networks .
Product Key Features
92 × 1 Gb PoE+ ports (IEEE 802.3at), 4 × 10 Gb SFP+ expansion slots
Modular 12-slot chassis, fans and management module included
Smart Rate multi-gigabit support / enterprise PoE+ up to ~30 W per port
6th-gen ProVision ASIC: 2 Tbps fabric, low latency (~2.1 µs), OpenFlow/REST API ready
VSF stacking, hitless failover, Fast Software Upgrade enabled (v3 modules)
Advanced Layer 2/3 features: OSPF, BGP, IPv6, dynamic segmentation, QoS
Reliability & Performance
The switch supports VSF stacking with hitless failover and fast software upgrade capabilities (v3 modules), enhancing availability in mission-critical environments Dual redundant management and fan trays with hot-swappable PSUs ensure uninterrupted operation. Robust QoS, network security, and Dynamic Segmentation further safeguard network traffic and facilitate multi-tenant deployments.
Key Features :
92 × autosensing 10/100/1000 PoE+ RJ-45 ports (IEEE 802.3at)
4 × open 10 Gb SFP+ transceiver slots
Modular chassis with 8 open slots (12 total) for expansion
Supports VSF stacking, hitless failover, and Fast Software Upgrade
Smart Rate multi-gigabit PoE+ support on appropriate line cards
Built-in REST API and OpenFlow 1.0/1.3 for SDN integration
Unified wired/wireless policy support with ClearPass, AirWave, Aruba Central
Advanced Layer 2/3 routing (OSPF, BGP, VRRP, IPv6, policy-based routing)
Dynamic Segmentation, advanced QoS, ACLs, VLAN and tunneling (e.g. VXLAN)
Enterprise-class performance: 2 Tbps switch fabric, sub-2.1 µs latency, wire-speed forwarding
| Specification | Details |
|---|
| Model Number | JL001A (Aruba 5412R 92GT PoE+ / 4-port SFP+ v3 zl2) |
| Product Type | Modular 4U Layer 3 switch chassis (No PSU) |
| PoE Ports | 92 × autosensing 1 Gb PoE+ RJ-45 (IEEE 802.3at) |
| Uplink Slots | 4 × SFP+ (10 Gb) transceiver slots |
| Expansion Slots | Total 12 card slots; base includes fan tray and management module |
| Switch Fabric Speed | 2 Tbps crossbar switching |
| Throughput | Up to 1,142.8 Mpps |
| Latency | ~2.1 µs, FIFO 64-byte packets |
| Routing & Protocols | IPv4 & IPv6, OSPF, BGP, VRRP, policy-based routing, tunneling |
| Stacking | VSF stacking, hitless failover, Fast Software Upgrade (v3 modules required) |
| SDN Features | OpenFlow 1.0 & 1.3; REST API programmable interface |
| Management Tools | Aruba ClearPass, AirWave, Aruba Central |
| Dynamic Segmentation & QoS | Layer 7 visibility, ACLs, role-based VLANs, QoS classes, traffic shaping |
| Power Supply Slots | 4 PSU bays (2 required minimum) - sold separately |
| Operating Temp / Humidity | 0 °C to 45 °C (32 °F to 113 °F); 15-95% non-condensing |
| Acoustic Noise | 49 dB (pressure 35.7 dB) ISO standards |
