HPE R0M67A

Aruba Networking 2930M 40G 8 HPE Smart Rate PoE Class 6 1-Slot Switch

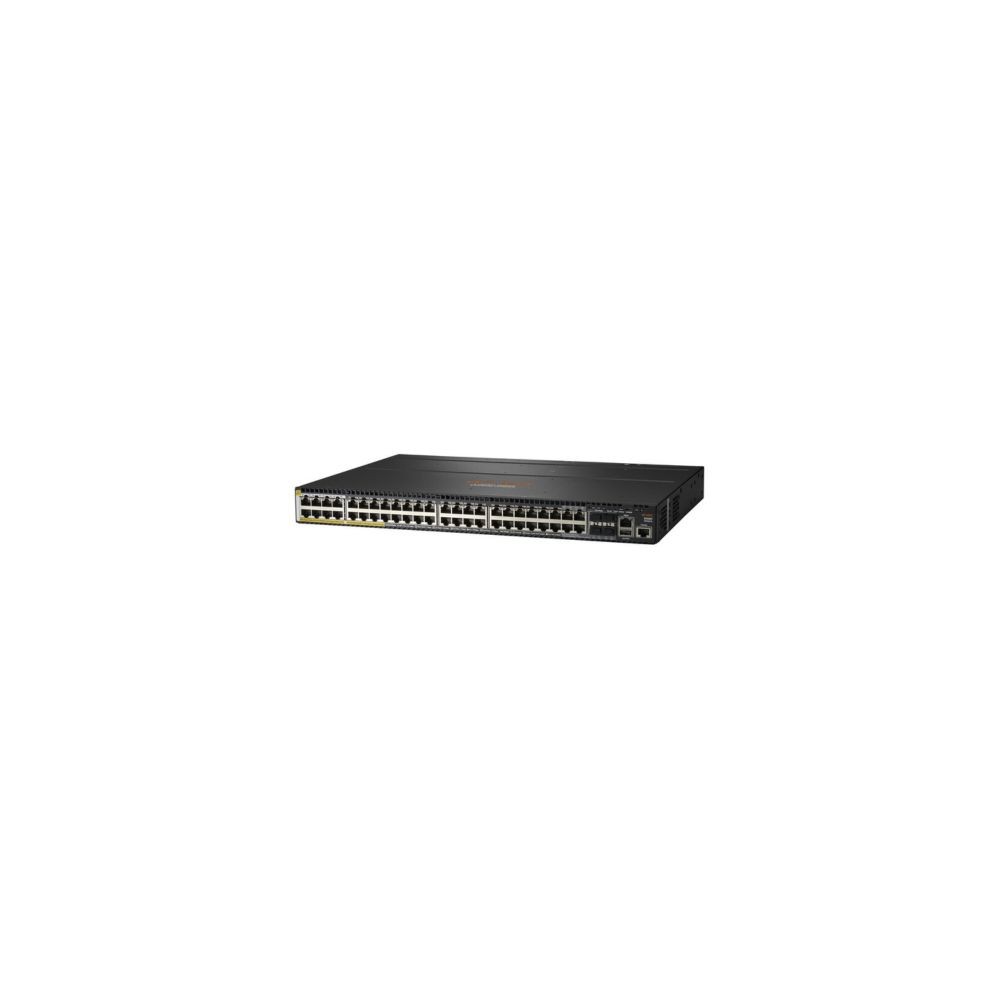

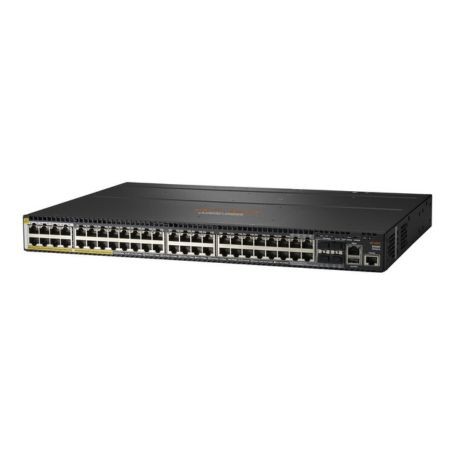

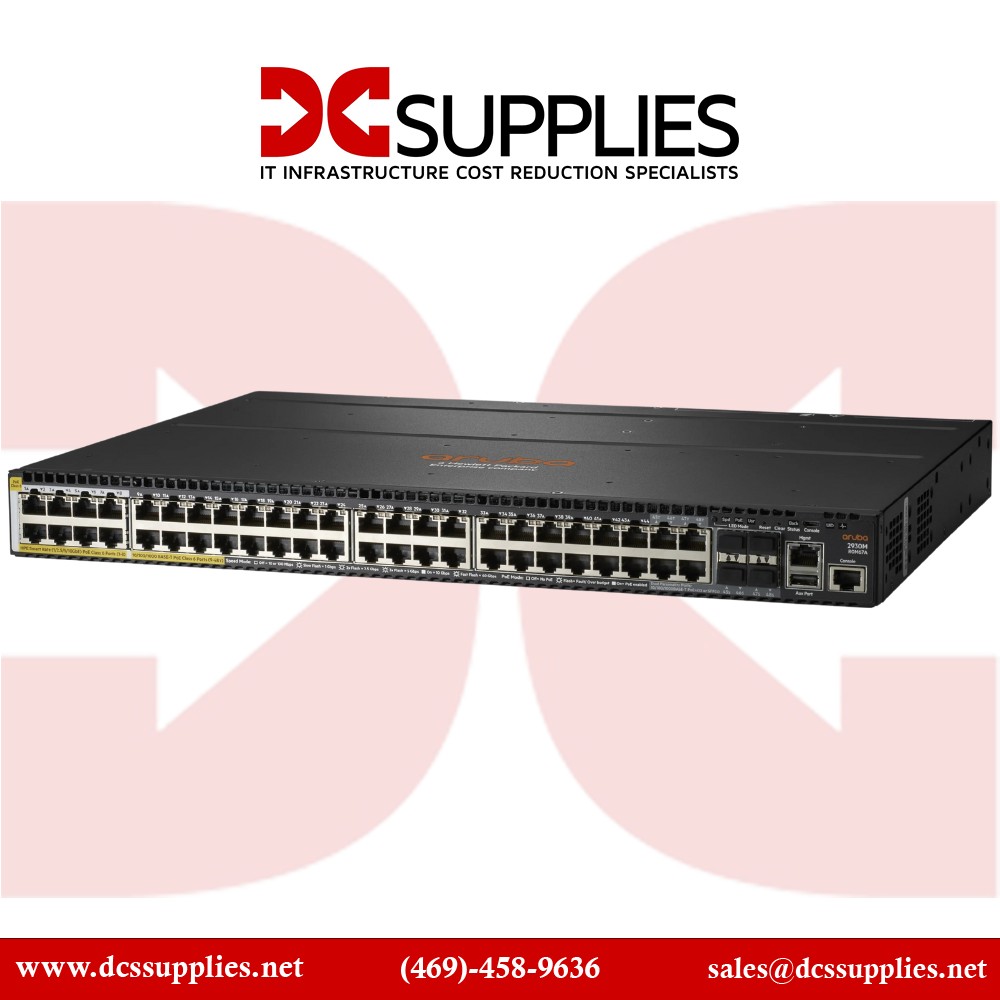

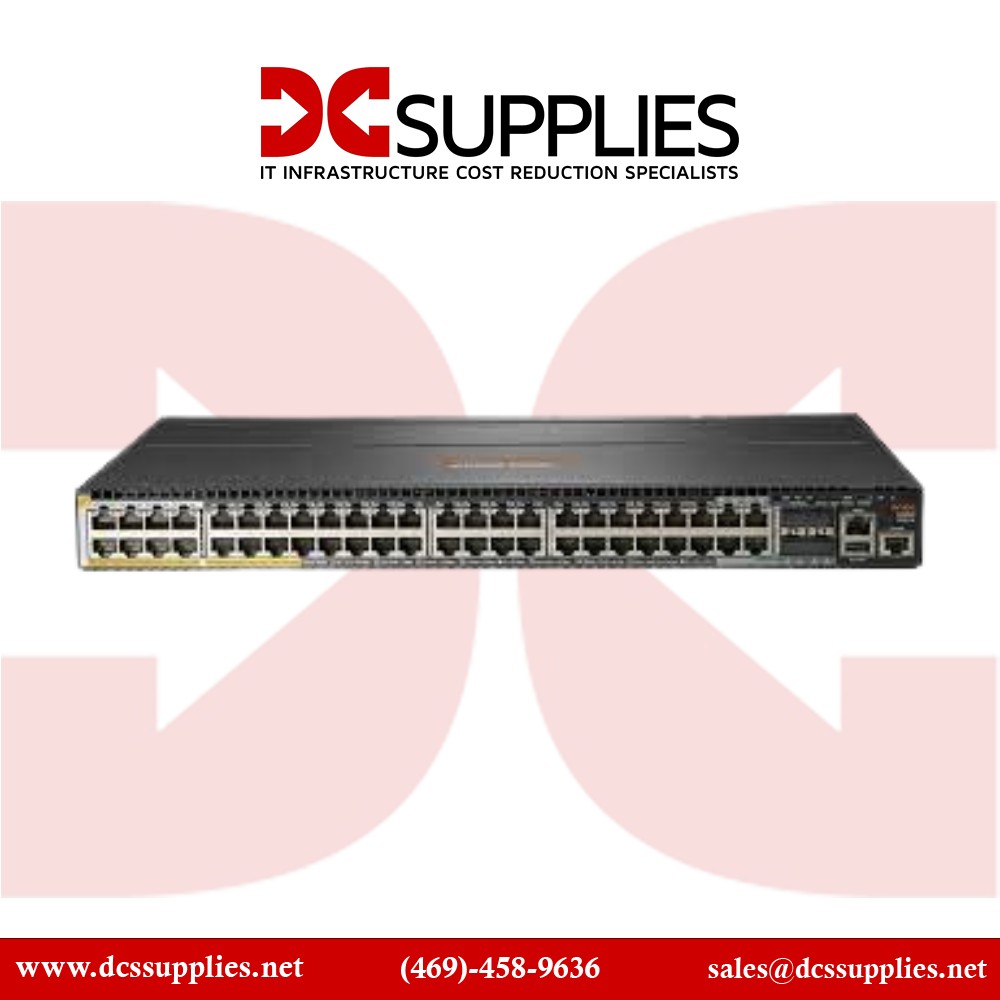

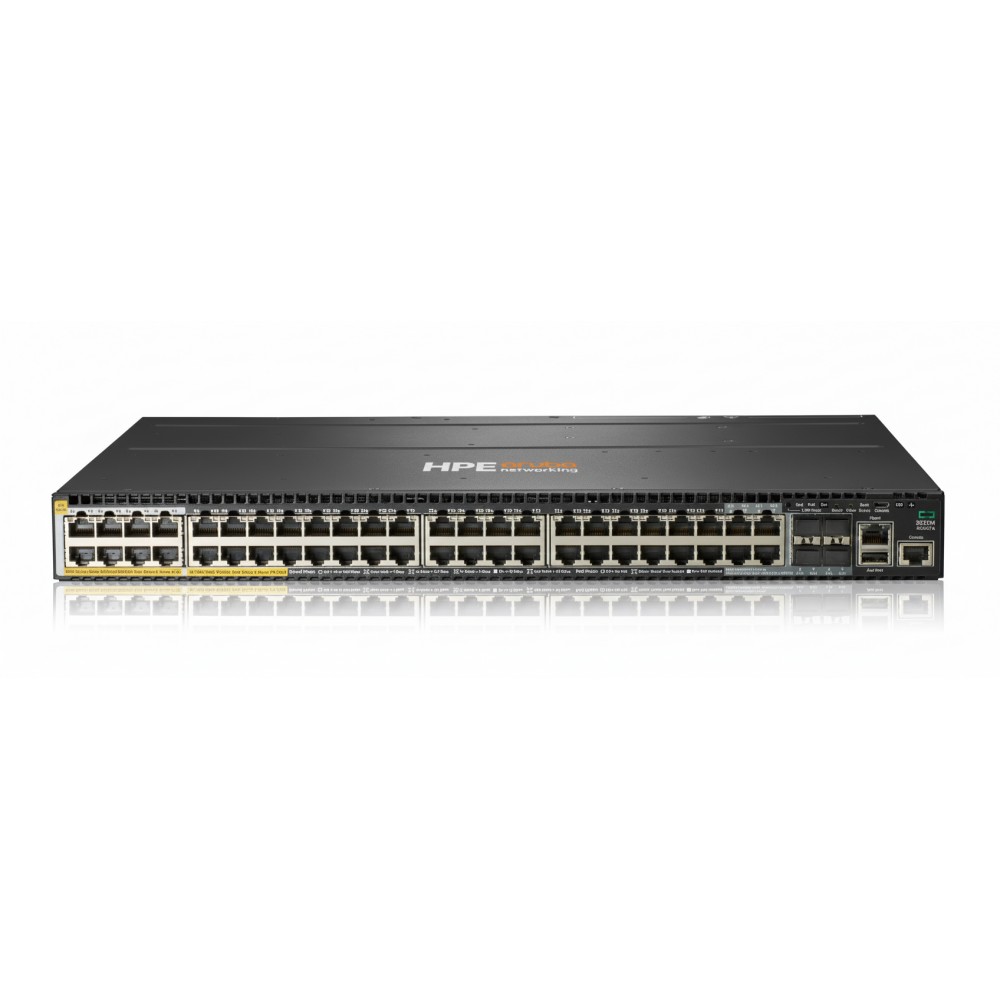

The HPE Aruba 2930M R0M67A switch is a full-featured managed Layer 3, rack-mountable switch offering 48 ports, including high-speed Smart Rate PoE Class 6 multi-gigabit support. It's tailored for enterprise edge, branch offices, or SMB environments requiring robust PoE delivery, high throughput, and advanced network segmentation.

Features

Built on Aruba's ProVision ASIC architecture, the 2930M supports enterprise routing protocols like OSPF, RIP, and static routing, along with full IPv6 support×all without extra licensing It features modular uplinks via expansion slots (QSFP+ for 40 Gb and SFP+ for 10 Gb), offering flexibility to adapt to growing backbone requirements.

Advanced Options

The switch's integrated PoE Class 6 delivers up to 60 W per port, supported by a total PoE budget of up to 1440 W×ideal for powering multi-radio access points, switches, and cameras from existing Ethernet cabling infrastructure Engineered for performance and resilience, the R0M67A delivers up to 320 Gbps switching capacity and 112 Mpps forwarding rate. Latencies remain low×even at 10 Gb speeds (< 3.4 µs)×ensuring smooth user experience.

Product Key Features

• 36 × 1 Gb PoE Class 6 ports + 8 × multi-gigabit 1/2.5/5/10 Gb PoE Class 6 copper

• Modular uplinks: 4 combo 1 Gb SFP/RJ45 + optional QSFP+ 40 Gb and SFP+ modules

• PoE budget up to 1440 W to power high-density wireless and IP devices

• ProVision ASIC with Layer 3 routing: OSPF, RIP, static, IPv6

• Stackable (up to 10 chassis) with 100 Gbps stacking bandwidth

• Advanced security: 802.1X, ACLs, dynamic segmentation, DHCP snooping, OpenFlow support

---

Reliability & Performance

Stackable up to 10 units with 100 Gbps inter-switch bandwidth enhances redundancy and scalability. Hot-swappable power modules (dual PSU support) ensure minimal downtime and flexible deployment options.

Key Features :

• 36× 10/100/1000 RJ-45 PoE Class 6 ports

• 8× multi-gig (1/2.5/5/10 Gb) RJ-45 PoE Class 6 ports

• 4× combo 1 Gb SFP/RJ-45 uplink ports

• 1 expansion slot for QSFP+ / SFP+ uplinks

• Layer 3 routing: OSPF, RIP, static, IPv6 native

• Smart Rate multi-gigabit support (IEEE 802.3bz)

• PoE budget: up to 1440 W (60 W per port)

• Stackable up to 10 chassis with 100 Gbps stacking

• Low latency and high throughput performance

• Advanced security and QoS support, including ACLs, dynamic segmentation, OpenFlow

• Zero-Touch Provisioning and cloud management support

Specification	Details
Model Number	R0M67A / Aruba 2930M 40G 8 Smart Rate PoE Class 6
Product Type	Fixed Port Layer 3 Managed Switch, rack-mountable, 1U
PoE Ports	36× 1 Gb PoE Class 6 + 8× 1/2.5/5/10 Gb PoE Class 6 (RJ-45)
Uplink Ports	4× combo 1 Gb SFP/RJ-45; 1 expansion slot for QSFP+/SFP+
Maximum PoE Budget	1440 W (up to 60 W per port)
Switching Capacity	320 Gbps (stacked: 420 Gbps)
Forwarding Rate	112 Mpps
Routing Protocols	OSPF, RIP, Static, IPv4/v6 hardware.table entries
MAC Table Size	32,768 entries
Jumbo Frame Support	Up to ~9,220 Bytes
Stackable	Yes (up to 10 units, 100 Gbps stacking bandwidth)
Security & QoS Features	ACLs, 802.1X, DHCP snooping, Dynamic Segmentation, OpenFlow
Management	CLI, SNMP v1/v2/v3, SSH, Telnet, HTTP(s), USB, out-of-band port
Latency	1 Gb: < 3.1 µs; 2.5 Gb: < 6.5 µs; 5 Gb: < 4.2 µs; 10 Gb: < 3.4 µs
Environmental	0-55 °C operating; 15-95% non-condensing humidity

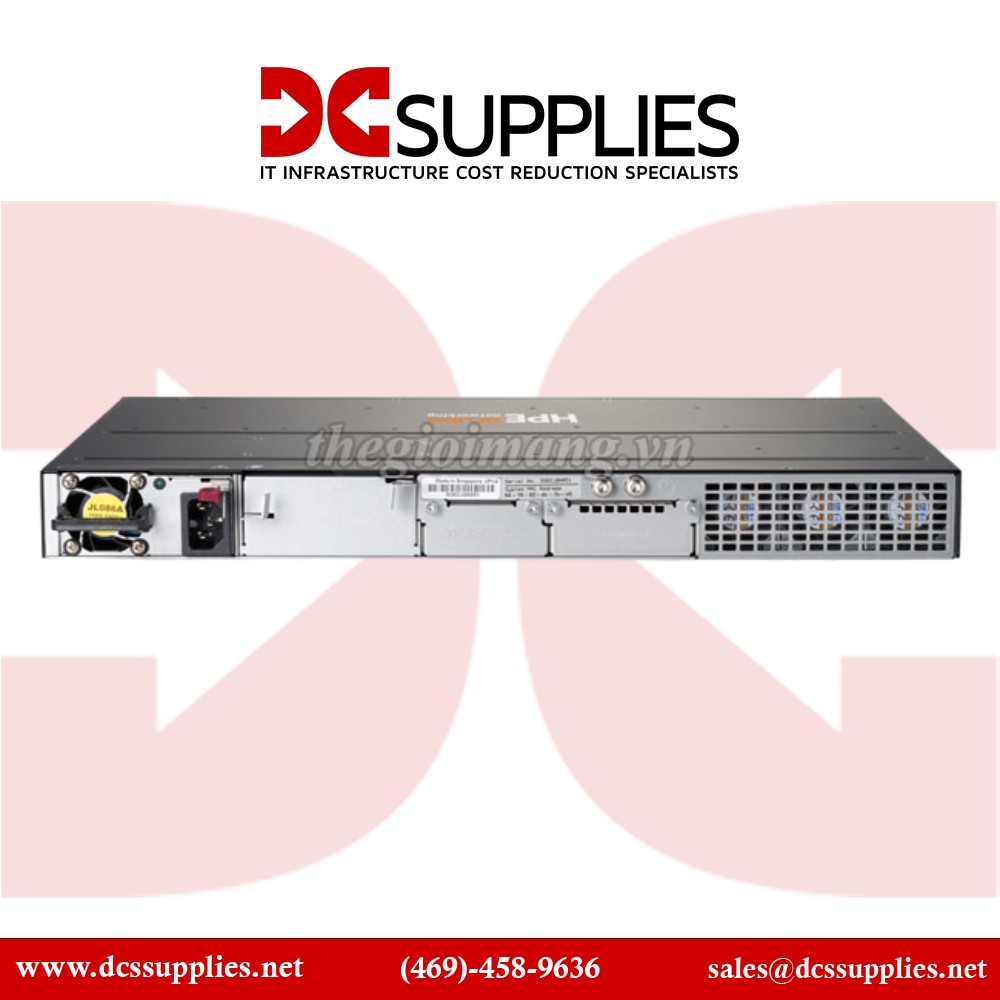

Power	Dual PSU slots; internal PSUs optional (e.g. JL086A 680 W, JL087A 1050 W)
Dimensions	1 U Rack size (approx. 44 cm width)
