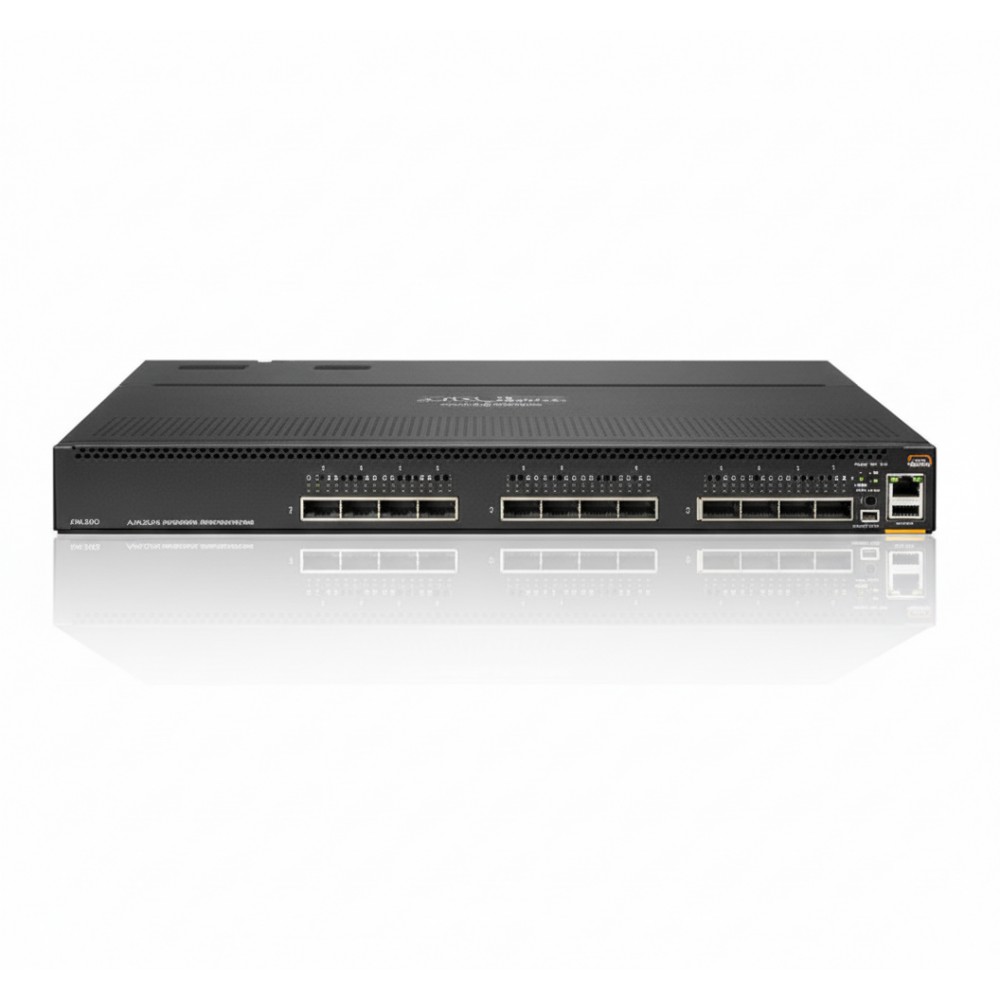

HPE Aruba R9G15A CX 8360-12C v2 12-Port Switch, 3 Fans, 2 PSUs Bundle View larger

HPE R9G15A Aruba CX 8360-12C v2 12-Port Switch, 3 Fans, 2 PSUs Bundle

New

HPE Aruba CX 8360-12C v2 12-Port Switch
×




  • New

Detailed Specifications

HPE Aruba CX 8360‑12C v2 (R9G15A) – 12 × 40/100 Gb QSFP28 Fixed L3 Switch

Overview

HPE Aruba CX 8360‑12C v2 (R9G15A) ek data‑center grade switch hai jo spine ya aggregation ke role mein use ho sakta hai. Isme 12 QSFP28 ports hain jo 40G ya 100G pe operate kar sakte hain, jisse high-bandwidth uplinks ya fabric interconnects possible hain. Switch ka switching capacity 2.4 Tbps hai (per datasheet) aur backplane architecture aise hai ke aap high throughput fabrics build kar sakte hain. OS‑CX operating system ke saath, aap Layer‑3 routing (BGP, OSPF), VSX redundancy, and telemetry + automation features (REST API, Python) ka use kar sakte hain.Reliability ke liye, R9G15A me 2 hot-swap power supplies aur 5 replaceable fans hain.

Key Features

  • 12 × 40/100Gb QSFP28 ports — ultra-high speed interconnects.

  • 2.4 Tbps switching capacity — sufficient for spine‑leaf or core fabrics.

  • L3 routing: Supports BGP, OSPF, static, and more via AOS‑CX.

  • Redundant hardware — 2 PSUs + 5 fans to minimize downtime.

  • Programmable OS — Full OS‑CX support with APIs and scripting.

Technical Specifications

SpecificationDetail
Brand HPE Aruba
Part Number R9G15A
Product Type Fixed L3 Switch
Port Configuration 12 × QSFP28 (40/100 Gb)
Switching Capacity 2.4 Tbps
CPU / Memory 1.8 GHz quad-core, 16 GB RAM, 32 GB Flash
Packet Buffer 32 MB
Power Supply 2 × hot-swap PSUs (1+1)
Cooling 5 hot-swap fans
Operating Temperature 0 °C to 45 °C (typical for 8360 v2)
Management Aruba OS‑CX (CLI, REST API, SNMP)
