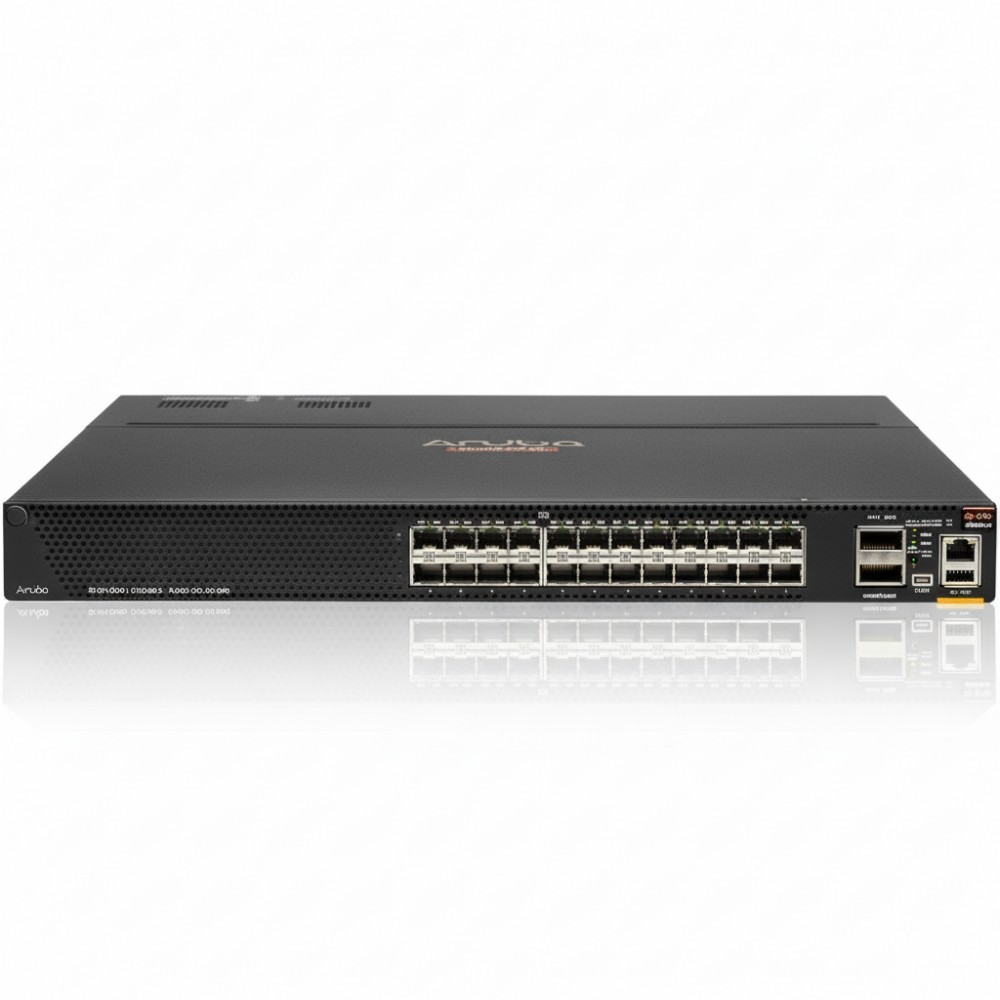

HPE Aruba JL722C CX 8360-24XF2c 24 ports Ethernet Switch View larger

HPE JL722C Aruba CX 8360-24XF2c 24 ports Ethernet Switch

New

HPE Aruba JL722C CX 8360-24XF2c 24-Port Ethernet Switch
×




  • New

Detailed Specifications

HPE Aruba CX 8360‑24XF2C v2 (JL722C) – 24 × 10G SFP+ + 2 × 100G QSFP28 Switch

Overview

Aruba JL722C ek 1U Layer‑3 switch hai jo CX 8360 v2 series ka hissa hai. Ismein 24 SFP+ (1/10G) ports hain jo high-speed server ya uplink devices ko connect karne ke liye ideal hain, aur 2 QSFP28 ports hain jo 40 Gb ya 100 Gb uplinks support karte hainYeh design core‑aggregation ya ToR (Top‑of‑Rack) fabrics ke liye suitable hai. Aruba OS‑CX ke saath, aap L3 routing (BGP, OSPF), VSX (redundant control plane), aur automation (REST API / Python) features ko utilize kar sakte hain

Key Features

  • 24 × 10G SFP+ ports for dense fiber / server links

  • 2 × 40/100G QSFP28 uplinks for high-speed backbone

  • 880 Gbps switching capacity (per SuperWarehouse spec)

  • VSX-capable for active-active resiliency

  • AOS‑CX OS with API, scripting, and telemetry

  • Compact 1U form factor — efficient rack deployment

Technical Specifications

SpecificationDetail
Brand HPE Aruba
Part Number JL722C
Product Type Fixed L3 Managed Switch
Port Configuration 24 × 1/10G SFP+ + 2 × QSFP28 (40/100G)
Switching Capacity 880 Gbps
Memory / CPU 1.8 GHz multi-core, 16 GB RAM, 32 GB Flash
Packet Buffer 32 MB
Power Supply Supports 2 hot-swap PSUs (per spare / bundle)
Operating System Aruba AOS‑CX (version 10.09+ for v2)
