Detailed Specifications

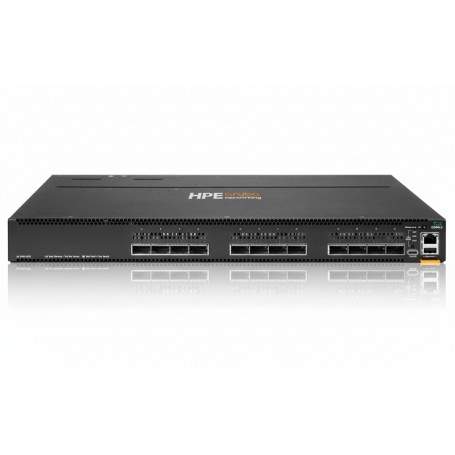

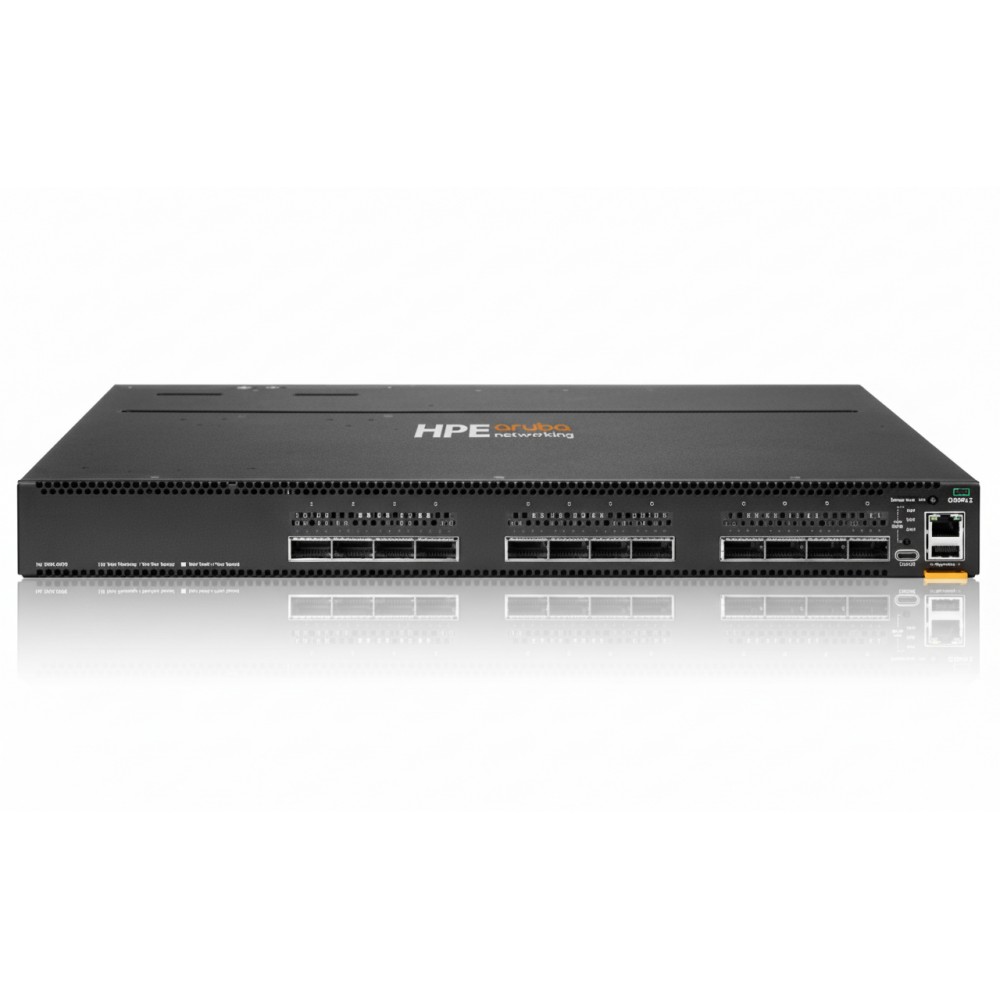

HPE Aruba CX 8360-12C v2 (JL721C) - 12 × 40/100 Gb QSFP28 Fixed Switch
Overview
HPE Aruba CX 8360-12C v2 (JL721C) ek compact, fixed 1U switch hai jo data-center backbone ya aggregation ke liye optimized hai. Isme 12 QSFP28 ports hain jo 40 Gb ya 100 Gb pe run kar sakte hain, isliye aap is switch ko high-speed uplink ya spine use kar sakte hain.Switch ka switching capacity lagbhag 1.2 Tbps (model aur configuration pe depend karega) hai. AOS-CX operating system ke saath, yeh Layer-3 routing protocols (jaise BGP, OSPF), VSX for high-availability, aur automation via REST API / Python support karta haReliability ke liye, is model mein redundant power supplies aur swappable modules ka design ho sakta hai (datasheet mein power range diya gaya hai).
Key Features
12 × QSFP28 (40 / 100Gb): High-bandwidth fabric links ya uplink ports.
Layer-3 routing: BGP, OSPF, VRF aur advanced routing features.
VSX support: Active-active redundancy for core deployments.
Programmable AOS-CX: REST APIs, Python scripting, telemetry.
Redundant power design: High availability architecture.
Compact 1U form factor: Ideal for spine, core, or aggregation racks.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | JL721C |
| Product Type | Fixed L3 Data-Center Switch |
| Port Configuration | 12 × QSFP28 (40 / 100 Gb) |
| Switching Capacity | ~1.2 Tbps (model-dependen |
| Memory / CPU | 1.8 GHz quad-core CPU, 16 GB RAM, 32 GB Flash |
| Packet Buffer | 32 MB |
| Power Supply | 2 × field-replaceable, hot-swappable PSUs (per spec) |
| Power Consumption | Idle: ~110W, Max: up to ~725W (model dependent) |
| Cooling | Hot-swappable fans (typical in 1U CX series) |
| Operating Temperature | 0°C to ~40°C (per CX 8360 spec) |
