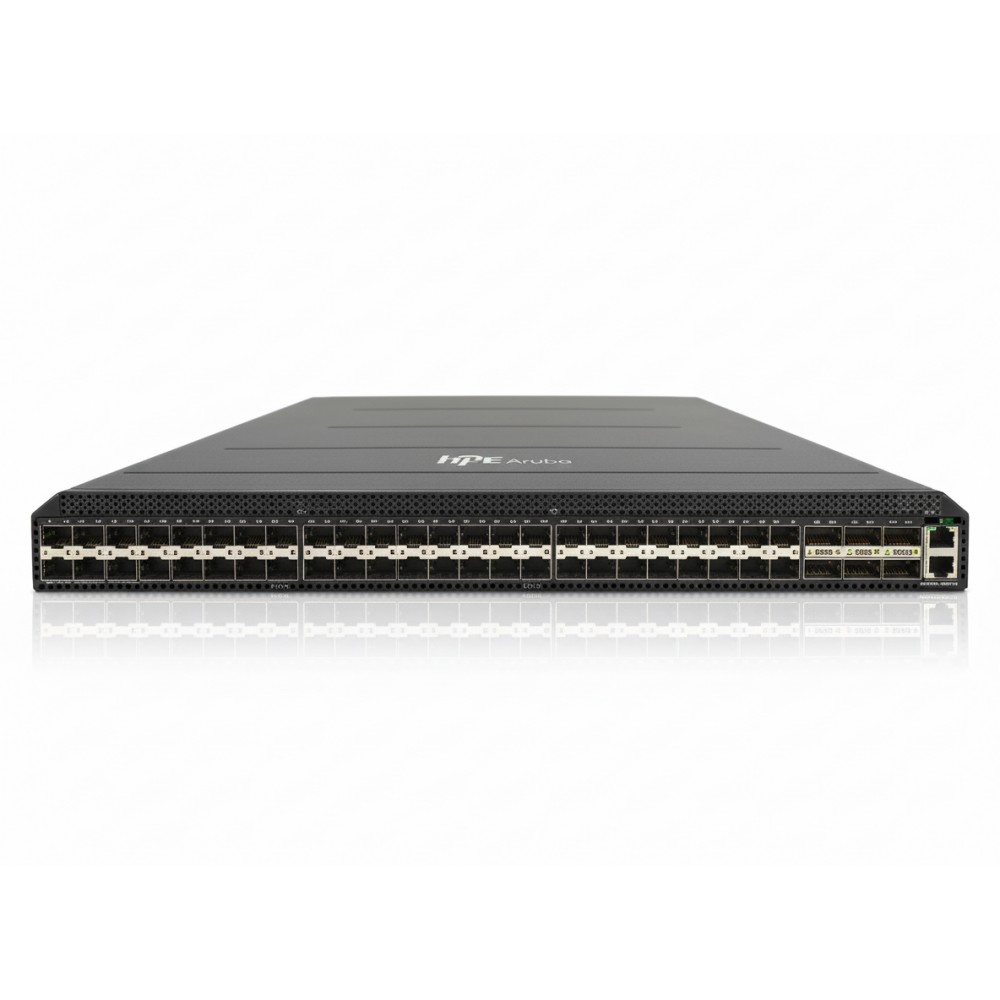

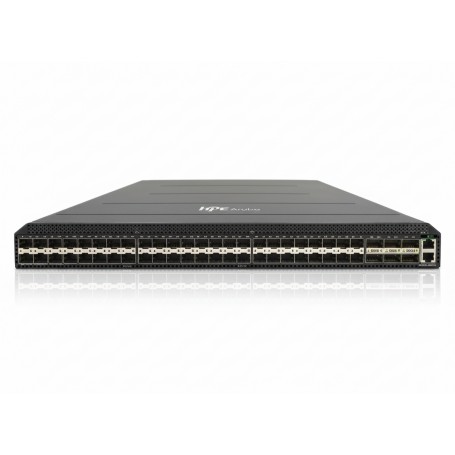

HPE Aruba R8S96A CX 10000 Ethernet Switch 48 Port View larger

HPE R8S96A Aruba CX 10000 Ethernet Switch 48 Port

New

HPE Aruba R8S96A CX 10000 Ethernet Switch
×




  • New

Detailed Specifications

HPE Aruba CX 10000‑48Y6C R8S96A – 48 × 25G + 6 × 100G DPU‑Capable Switch

Overview

HPE Aruba CX 10000‑48Y6C (R8S96A) ek high-performance, fixed 1U switch hai jo data center leaf ya aggregation role ke liye tayar kiya gaya hai. Ismein 48 SFP28 ports hain jo 1 / 10 / 25 Gb speeds support karte hain, aur 6 QSFP28 ports jo 40/100 Gb uplinks ke liye use ho sakte hain.Yeh design 3.6 Tbps switching capacity deliver karta hai, jo modern fabric architectures (jise EVPN-VXLAN ya leaf-spine) mein bahut effective hai. Switch L3 routing protocols (BGP, OSPF, static) ko support karta haiCooling aur reliability ke liye, ismein 6 hot-swappable fan trays hain aur dual hot-swap power supplies ki support hai.Switch modular structure mein hai aur 48 + 6 expansion slots provide karta hai — matlab port flexibility aage bhi scalable hai. Management ke liye yeh OS‑CX run karta hai — CLI, REST API, SNMP, aur Aruba Fabric Composer / NetEdit ke zariye automation aur visibility milti hai.

Key Features

  • 48 × 1/10/25 Gb (SFP/SFP+/SFP28): Dense high-speed server connectivity.

  • 6 × 40/100 Gb (QSFP+/QSFP28): High-throughput uplinks for spine or aggregation.

  • 3.6 Tbps switching capacity: Wire-rate performance for large fabrics.

  • Redundant hardware: Dual power supplies aur 6 fan trays for availability.

  • Layer 3 routing: OSPF, BGP-4, ECMP, PBR etc. supported.

  • Scalable chassis design: Expansion slots for future port requirements.

  • Automated & programmable: Integration with REST API, NetEdit, Fabric Composer.

  • Hot-swap parts: Powers and fans can be replaced without shutdown.

Technical Specifications

SpecificationDetail
Brand HPE Aruba
Part Number R8S96A
Product Type Fixed L3 / Distributed‑Services Switch
Port Configuration 48 × 1/10/25 Gb SFP/SFP+/SFP28 + 6 × 40/100 Gb QSFP/QSFP28
Switching Capacity 3.6 Tbps
Latency < 1.30 μs (typical)
Management Aruba OS‑CX; CLI, REST API, SNMP, Fabric Composer, NetEdit
Redundancy 2 × hot-swappable PSUs, 6 × hot-swap fans
Memory / Storage 32 GB RAM, 64 GB SSD (per spec)
MAC Table Size ~98K entries
Max Routes / Hosts IPv4 hosts up to ~120,000, IPv6 hosts ~52,000
Dimensions & Weight 1U, 43.82 cm × 51.1 cm × 4.44 cm, ~9.75 kg
