Detailed Specifications

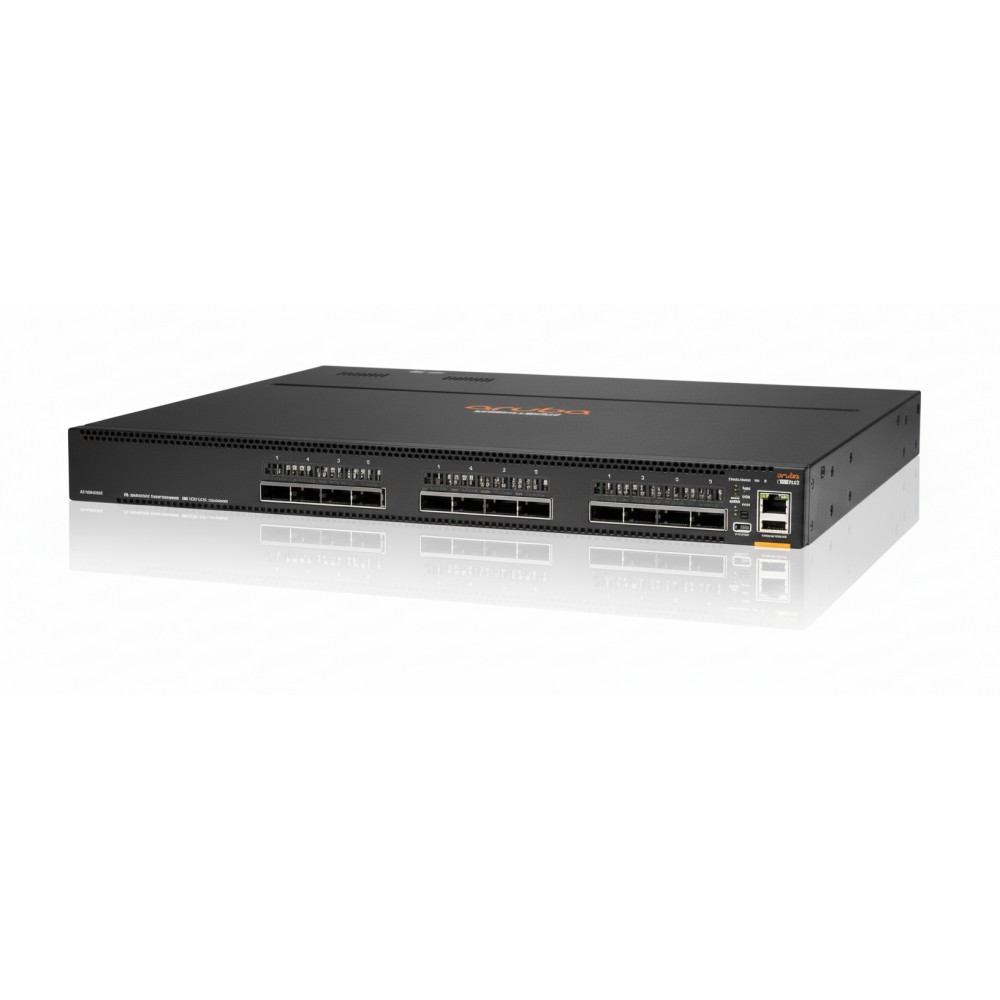

HPE Aruba CX 8360-12C v2 (R9G14A) - 12 × 40/100 Gb QSFP28 L3 Switch
Overview
HPE Aruba CX 8360-12C v2 (R9G14A) ek 1U, high-speed switch hai jo Layer-3 routing ke liye design kiya gaya hai. Isme 12 QSFP-28 ports hain jo 40 Gb ya 100 Gb ke links support karte hain × ideal for spine or aggregation roles jahan aapko very high-bandwidth interconnect chahiye ho.Yeh switch 4.8 Tbps switching capacity aur 2,678 Mpps forwarding rate tak pohanch sakta hai. VSX support ke saath, aap high availability ya active-active pairing configure kar sakte hain. OS-CX operating system ke zariye aap BGP, OSPF, VRF jaise L3 features ke saath automation aur telemetry bhi istemal kar sakte hain. Iska design MACsec encryption ka bhi support deta hai, jo un networks ke liye useful hai jahan secure link ki requirement ho.
Key Features
12 × QSFP28 (40/100 Gb): High-bandwidth uplink / spine connectivity.
4.8 Tbps switching capacity: Heavy throughput for aggregation or core.
2,678 Mpps forwarding rate: Efficient packet processing.
VSX support: Redundant control-plane aur active-active pairing.
Full Layer-3 routing: BGP, OSPF, VRF aur IPv6 support.
MACsec encryption: Secure high-speed links over untrusted domains.
Programmable OS-CX: REST API, Python scripts, automation.
Redundant power / fans: Designed for reliability.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | R9G14A |
| Product Type | Fixed L3 Managed Switch |
| Port Configuration | 12 × QSFP28 (40 / 100 Gb) |
| Switching Capacity | 2.4 Tbps (per spec sheet) |
| Forwarding Rate | 2,678 Mpps |
| Management / OS | Aruba OS-CX (CLI, REST API, SNMP) |
| Routing Support | Static routes, OSPF, BGP, ECMP, VRF |
| Security | MACsec on 10 / 25 / 100G capable ports |
| Power Supply | 2 hot-swappable PSUs, port-to-power design |
| Cooling | 3 fan trays, front-to-back airflow |
| Memory / CPU | 16 GB RAM, 32 GB Flash / Storage |
| Packet Buffer | 32 MB |
| Operating Temperature | 0°C to 45°C |
