HPE Aruba CX 5420 S0U63A - 20-Port PoE Module with 4 × 1G/10G SFP+

Overview

The HPE Aruba S0U63A is a modular line card designed for the CX 5420 chassis. It provides 20 ports of 10 M / 100 M / 1 G Ethernet with Class-4 PoE, plus 4 SFP+ ports that support either 1 Gb or 10 Gb uplinks. This line card is built to deliver both power and data in a flexible access-layer setup, ideal for enterprise campus networks.With the CX 5420 chassis, the S0U63A can be deployed in environments that require moderate densities of powered devices like Wi-Fi access points, IP phones, or security cameras. The module uses a Gen-7 ASIC architecture for low-latency performance and integrates fully with the AOS-CX operating system. With support for MACsec (hardware), analytics via Aruba's telemetry engine, and modular power/fan trays in the chassis, it ensures resilient and secure access-layer switching.

Key Features

• 20 × 10M/100M/1G RJ-45: Provides PoE Class-4 ports to power devices like APs and phones.

• 4 × SFP+ (1G/10G): High-speed uplink or stacking connectivity.

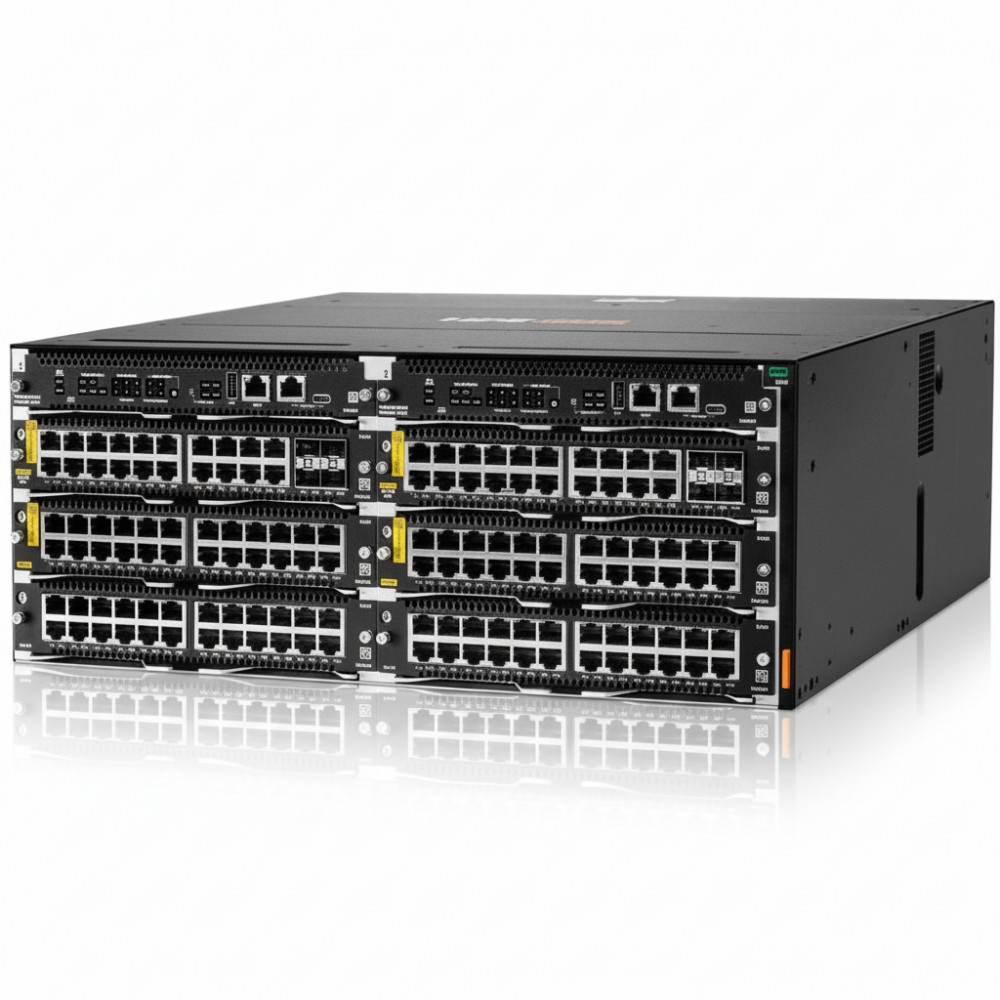

• Modular design: Fits into a CX 5420 4U chassis, allowing flexibility and scalability.

• Power over Ethernet (PoE): Class-4 PoE support, useful for delivering up to ~30 W per port.

• High performance: Gen-7 ASIC enables wire-speed switching and routing.

• Layer 3 capable: Supports routing protocols (BGP, OSPF) when used with AOS-CX.

• MACsec ready: Hardware support for MACsec for secure link encryption.

• High availability: Compatible with redundant power supplies and hot-swap design in the chassis.

Technical Specifications
