Detailed Specifications

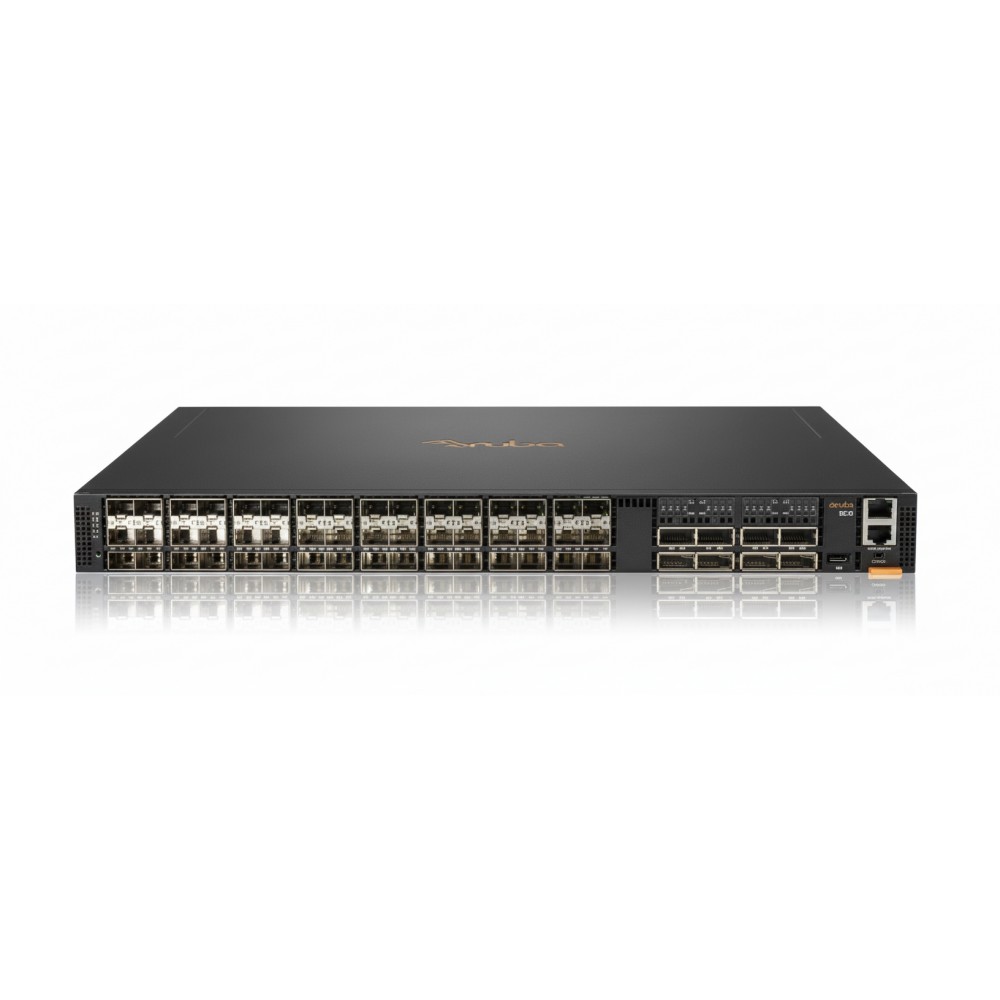

HPE Aruba CX 8325-48Y8C JL635A - 48 × 25G + 8 × 40/100G High-Density Switch
Overview
HPE Aruba CX 8325-48Y8C (JL635A) ek 1U fixed Ethernet JL635Aswitch hai, jo data-center core ya aggregation use cases ke liye banaya gaya hai. Ismein 48 ports hain jo SFP28 (1 / 10 / 25 GbE) ko support karte hain, aur 8 QSFP28 ports jo 40 Gb ya 100 Gb tak ja sakte hain.Yeh switch high throughput aur low latency workloads ko support karne ki salahiyat rakhta hai, aur Aruba OS-CX ke sath chalne ki wajah se aap automation, routing, aur modern data center features istemal kar sakte hain. Redundant power supply aur hot-swappable fans ise uptime-critical environments mein reliable banate hain.
Key Features
48 × SFP28 (1/10/25 Gb): Dense SFP-link uplinks ya server connections.
8 × QSFP28 (40/100 Gb): High-speed uplinks ya spine links.
6.4 Tbps switching capacity: Enough bandwidth for aggregation / core layers.
2,000 Mpps forwarding rate: Very high packet-per-second capacity.
Redundant, hot-swap PSUs: Reliable power with flexibility.
Hot-swappable fan modules: Maintain cooling without downtime.
L3 routing support: Includes BGP, OSPF, VRF, IPv6.
Programmable OS-CX: REST API, Python scripting, automation.
Time-series database & analytics: For monitoring, trending, troubleshooting.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | JL635A |
| Product Type | Fixed L3 / Core / Aggregation Switch |
| Port Configuration | 48 × SFP28 (1 / 10 / 25 Gb) + 8 × QSFP28 (40 / 100 Gb) |
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | ~2,000 Mpps |
| Management | Aruba OS-CX, CLI / REST API / SNMP |
| Power Supply | 100-240 V AC, up to 2 field-replaceable PSUs supported |
| Power Consumption (Max) | ~586 W |
| Cooling / Fans | 6 hot-swappable fan modules |
| Memory / CPU | 16 GB RAM, 64 GB SSD, 8 GB Flash |
| Packet Buffer | 32 MB |
| Dimensions & Weight | 4.35 cm × 43.84 cm × 53.6 cm, ~10 kg |
| Operating Temperature | 0 °C to 40 °C |
