Detailed Specifications

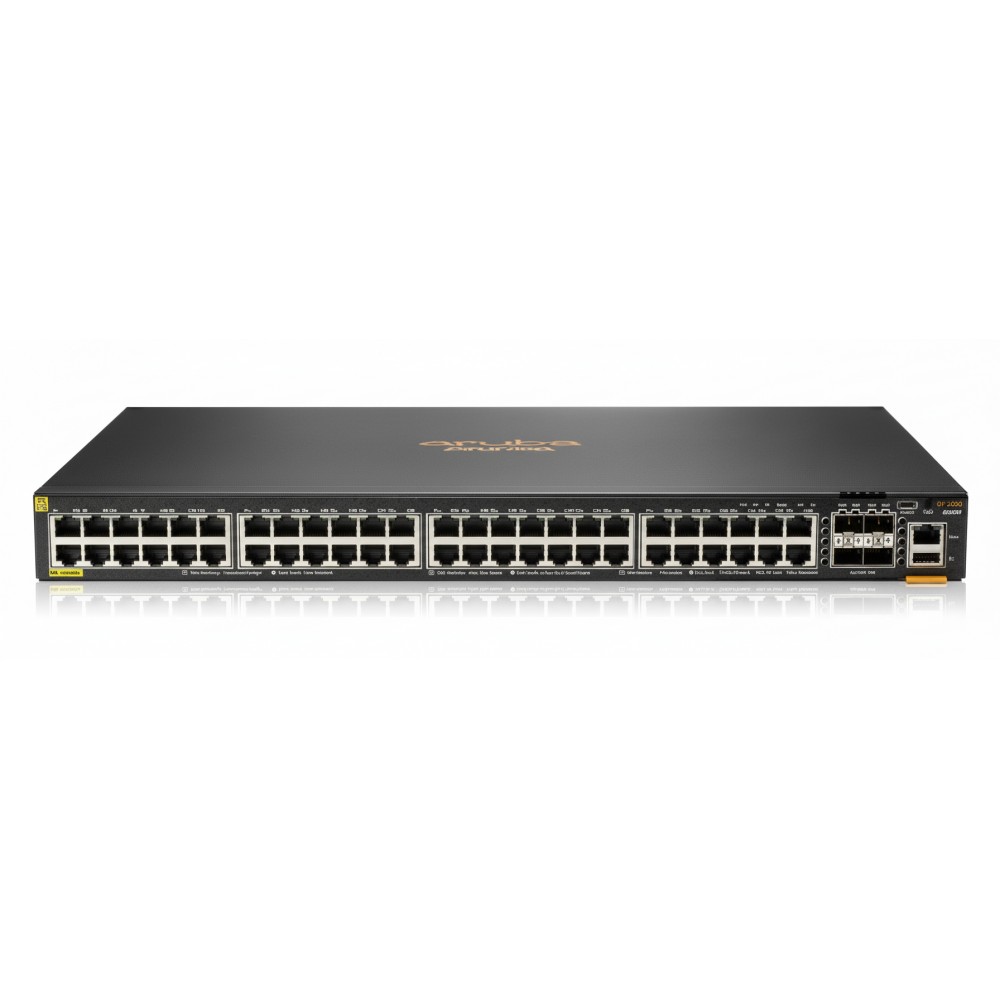

HPE Aruba CX 6300F JL667A - 48-Port 1 GbE + 4 × SFP56 Switch (L3, Stackable)
Overview
The HPE Aruba CX 6300F (JL667A) is a 48-port fixed Gigabit Ethernet switch with four SFP56 uplink/stacking ports, designed for enterprise campus access or distribution layers. It provides reliable L3 switching, high stacking capacity, and flexible uplinks for modern networks.With support for up to 10-member VSF stacks, the JL667A allows multiple switches to operate as a single logical unit, simplifying management and expanding port capacity without extra complexity. Its 496 Gbps switching capacity and 369 Mpps forwarding rate handle typical enterprise workloads efficiently.This 1U switch is built for standard rack deployments, with proper airflow and hardware design for dense environments. Running Aruba OS-CX, it supports advanced Layer-3 routing, automation, and analytics to help IT teams monitor and optimize the network.
Key Features
48 × 1 Gb RJ-45 ports: Provides dense access-layer connectivity for user devices.
4 × SFP56 ports: Flexible uplinks or VSF stacking, supporting higher-speed connections.
496 Gbps switching capacity: Handles heavy access-layer traffic efficiently.
369 Mpps forwarding rate: Ensures smooth packet handling under load.
VSF stacking up to 10 switches: Scales access layers while maintaining a single control plane.
Fixed internal PSU: Reliable power without external modules.
Hot-swappable fans: Maintain operation without downtime during fan replacements.
Advanced Layer 3 support: Includes BGP, OSPF, VRF, and static routing capabilities.
Management options: CLI, REST API, SNMP v2/v3, AirWave, Aruba Central.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | JL667A |
| Product Type | Fixed L3 Managed Switch |
| Port Configuration | 48 × 10/100/1000 RJ-45 + 4 × SFP56 (1/10/25/50 Gb) |
| Switching Capacity | 496 Gbps |
| Forwarding Rate | 369 Mpps |
| Management | Aruba OS-CX (CLI / REST / SNMP / AirWave / Central) |
| Stacking | Up to 10 switches via VSF on SFP56 ports |
| Power Supply | Fixed internal AC (100-120 / 200-240 V) |
| Power Consumption | Idle: ~52 W, Max: ~74 W |
| Dimensions & Weight | 44.2 × 32.7 × 4.39 cm, ~4.46 kg |
| Operating Temperature | 0°C to 45°C |
