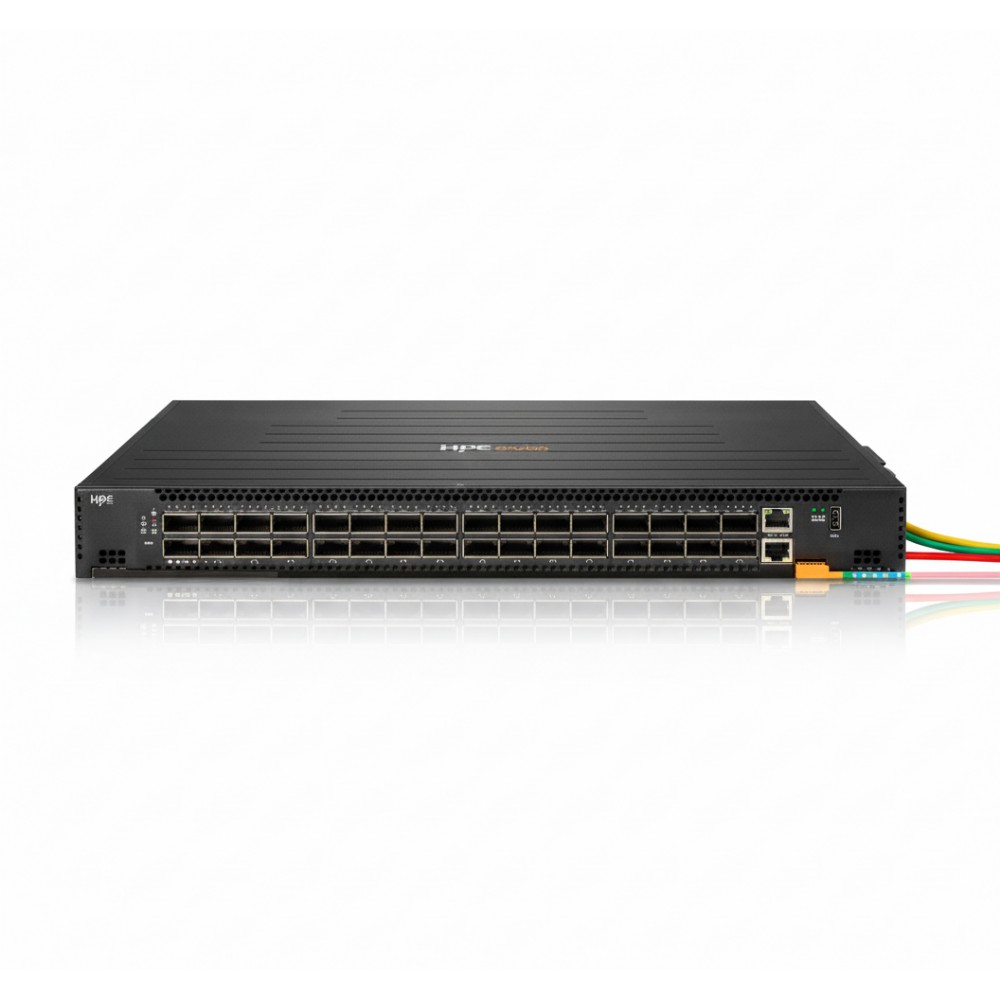

HPE Aruba S1D11A CX 8325-32C Port Switch, 6 Fans, 2 DC PSU View larger

HPE S1D11A Aruba CX 8325-32C Port Ethernet Switch

New

HPE Aruba CX 8325-32C Port Switch, 6 Fans, 2 DC PSU
×




  • New

Detailed Specifications

HPE S1D11A – Aruba CX 8325-32C 32-Port 100G QSFP28 Switch

Overview

The HPE S1D11A is a high-performance fixed-port switch from the Aruba CX 8325 series, delivering 32 QSFP28 ports in a 1U form factor. This model is built to handle the demands of modern data center top-of-rack (ToR) or aggregation layer traffic, especially for high-throughput environments. With a switching capacity of 6.4 Tbps, dual DC power supplies, and six fans with port-to-power airflow, it’s engineered for resiliency and cooling in dense deployments.The S1D11A runs Aruba’s AOS-CX operating system, providing advanced Layer-2/Layer-3 capabilities, BGP/OSPF, VRF, and VXLAN for scalable campus or data-center fabrics. It’s ideal where you need high port density, line-rate forwarding, and full programmability via scripting or REST APIs.

Key Features

  • 32 × 100 Gb QSFP28 ports for ultra-high-bandwidth ToR or aggregation deployment.

  • 6.4 Tbps switching capacity with 2,000 Mpps forwarding for line-rate performance.

  • Dual DC power supplies (-36 V to -72 V) with redundant design for high availability.

  • Port-to-power airflow and 6 hot-swappable fans ensure effective cooling in dense racks.

Technical Specifications

SpecificationDetail
Brand HPE Aruba Networking
Part Number S1D11A
Product Type Fixed Ethernet Switch (Layer 3)
Port Configuration 32 × QSFP28 (100 Gb)
Switching Capacity 6.4 Tbps (bidirectional)
Forwarding Rate 2,000 Mpps
Management / OS AOS-CX (CLI, REST API, Python, SNMP)
Power Dual DC PSU, -36 to -72 V
Power Consumption (Max) ~618 W
Cooling 6 fans, port-to-power airflow
Switch Size / Form Factor 1U rack-mount
