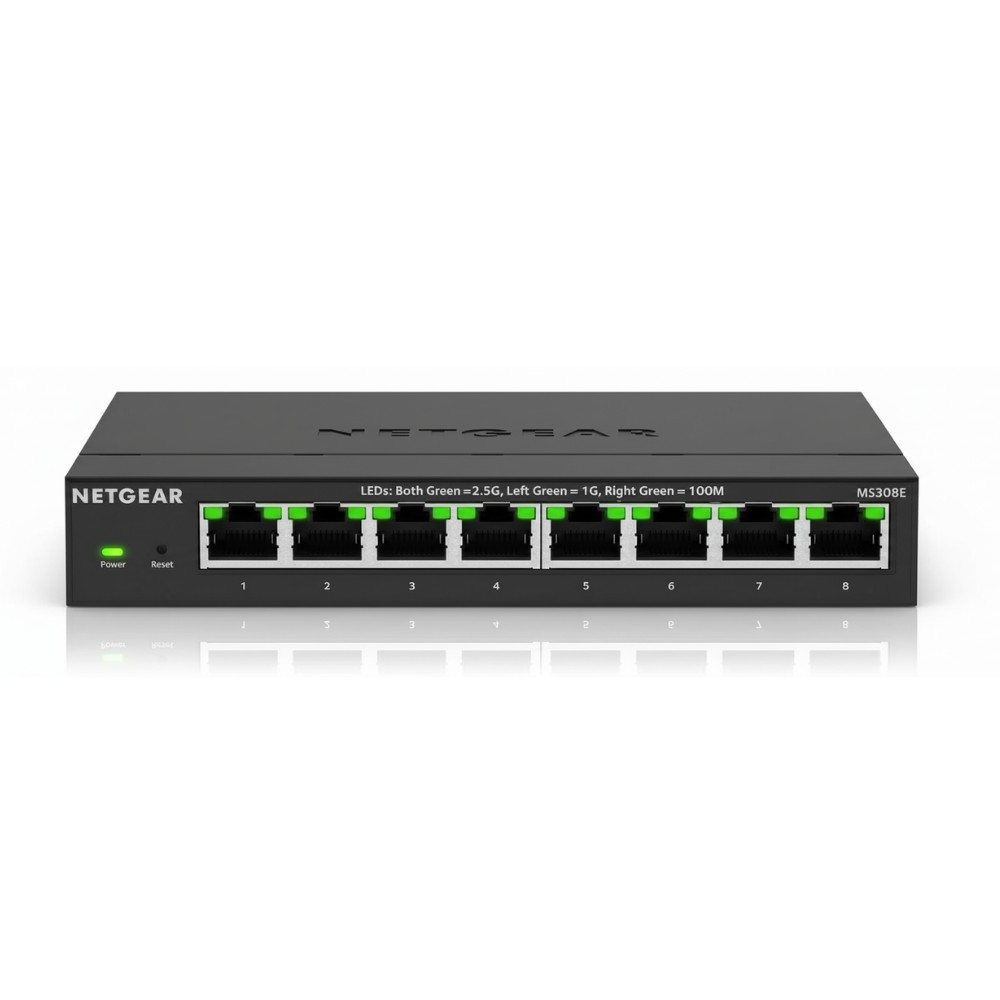

NETGEAR MS308E-100NAS 8 Port Multigig Plus Switch View larger

NETGEAR MS308E-100NAS 8 Port Multigig Ethernet Plus Switch

New

8-Port 2.5G Multi-Gigabit Plus Switch.
×




  • New

Detailed Specifications

Netgear MS308E-100NAS – 8-Port 2.5G Multi-Gigabit Plus Switch

Overview :

The Netgear MS308E-100NAS is a high-performance 8-port Multi-Gigabit Ethernet Plus switch engineered to address the bandwidth bottlenecks common in modern small-to-medium business (SMB) networks. As wireless standards evolve toward WiFi 6E and WiFi 7, and high-speed NAS units become standard, traditional Gigabit switching often becomes a point of congestion. This switch provides eight dedicated 2.5GBASE-T ports, delivering 2.5 times the speed of standard Gigabit connections over existing Cat5e or better copper cabling.

Positioned within the Netgear Plus series, the MS308E bridges the gap between unmanaged plug-and-play devices and complex managed infrastructure. It offers essential Layer 2 management capabilities, including VLAN support for traffic segmentation, Quality of Service (QoS) for voice and video prioritization, and IGMP snooping for multicast optimization. Its fanless, compact metal chassis ensures silent operation, making it ideal for noise-sensitive environments such as conference rooms, open-plan offices, or home laboratories. Whether deployed at the network edge or as a central hub for a small creative studio, the MS308E-100NAS provides the necessary throughput for high-bandwidth applications without the complexity or cost of 10G hardware.

Key Features :

Eight 2.5G Multi-Gigabit ports for high-speed backhaul.

Essential L2 management including VLANs and QoS control.

Fanless design ensures silent operation in office spaces.

Energy Efficient Ethernet (IEEE 802.3az) for power savings.

Specifications :

Brand Netgear
Part Number MS308E-100NAS
Product Type Multi-Gigabit Plus Switch
Total Ports 8 x 2.5GBASE-T
Switching Capacity 40 Gbps
Forwarding Rate 29.7 Mpps
MAC Address Table 16K entries
Packet Buffer 1.5 MB
VLAN Support Up to 64 VLANs (Port-based, 802.1Q)
Power Supply External 12V / 1.5A DC
Max Power Consumption 13.8 W
Operating Temperature 0° to 40° C
Dimensions (WxDxH) 158 x 101 x 27 mm
Weight 0.49 kg

Frequently Asked Questions :

Does this switch require specialized cabling for 2.5G speeds?

No, the MS308E supports 2.5GBASE-T over standard Cat5e or better copper cabling, allowing for easy bandwidth upgrades without the need for rewiring.

Is the MS308E-100NAS rack-mountable?

This model is designed for desktop or wall-mount use. It features a compact form factor and does not include rack-mount ears, making it optimized for small-footprint deployments.

Can I manage this switch via the cloud?

The MS308E is a Plus series switch managed via a local web-based browser interface or the ProSAFE Plus Utility. It does not support Netgear Insight cloud management.
