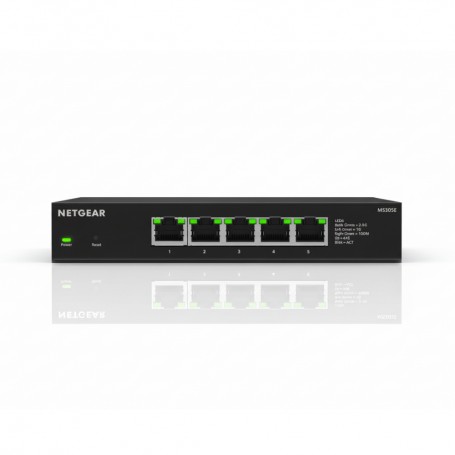

NETGEAR MS305E-100NAS 5 Port Multigig Plus Switch View larger

NETGEAR MS305E-100NAS 5 Port Multigig Plus Switch

New

In Stock

5-Port 2.5G Multi-Gigabit Plus Switch.
×




$157.50

  • New

Detailed Specifications

Netgear MS305E-100NAS – 5-Port 2.5G Multi-Gigabit Plus Switch

Overview :

The Netgear MS305E-100NAS is a 5-port Multi-Gigabit Plus switch designed to eliminate network bottlenecks in modern small-to-medium business (SMB) environments and high-performance home offices. As WiFi 6/6E access points and high-speed Network Attached Storage (NAS) units become standard, traditional Gigabit Ethernet often becomes a performance constraint. This switch provides five dedicated 2.5G ports, delivering 2.5 times the speed of standard 1G connections without requiring a transition to expensive 10G infrastructure or specialized Cat6A cabling in many short-run scenarios.

Positioned within the Netgear Plus series, the MS305E offers a middle ground between unmanaged simplicity and complex managed switches. It provides essential Layer 2 features such as VLANs for traffic segmentation, Quality of Service (QoS) for voice and video prioritization, and IGMP snooping for multicast optimization. Its fanless, compact metal chassis makes it ideal for noise-sensitive deployments at the network edge, such as conference rooms, retail points of sale, or desktop workstations. Integration is straightforward via a web-based browser interface or the Netgear Switch Discovery Tool, allowing administrators to monitor port health and configure basic security protocols without extensive CLI knowledge.

Key Features :

Five 2.5G ports for high-speed NAS and AP backhaul.

Essential Layer 2 management via Plus software.

Fanless metal housing for silent, durable operation.

Plug-and-play setup with VLAN and QoS optimization.

Specifications :

Brand Netgear
Part Number MS305E-100NAS
Product Type Multi-Gigabit Plus Switch
Total Ports 5 x 100M/1G/2.5G RJ-45
Switching Capacity 25 Gbps
Management Plus (Web GUI / Utility)
Form Factor Desktop or Wall-mount
Housing Material Metal
Power Supply External 12V / 1.0A DC
Max Power Consumption 9.24 W
MTBF 1,141,346 hours
Dimensions (WxDxH) 158 x 101 x 29 mm
Weight 0.48 kg
Operating Temperature 0° to 40° C

Frequently Asked Questions :

Does the MS305E-100NAS support Power over Ethernet (PoE)?

No, this model does not provide PoE. It is designed for high-speed data transport for devices with their own power sources, such as NAS units, servers, or high-end workstations.

Can this switch be mounted in a standard 19-inch server rack?

The MS305E is a compact desktop form factor switch. While it includes a wall-mount kit, it does not include rack-mount ears and is not natively sized for standard 19-inch racks.

What cabling is required to achieve 2.5Gbps speeds on this switch?

You can achieve 2.5Gbps speeds over existing Cat5e or better copper cabling at distances up to 100 meters, making it a cost-effective upgrade for existing infrastructure.

What management features are included in the "Plus" software?

The Plus software provides essential Layer 2 management, including VLAN configuration for security, QoS for traffic prioritization, IGMP snooping for multicast, and basic cable health testing.
