Detailed Specifications

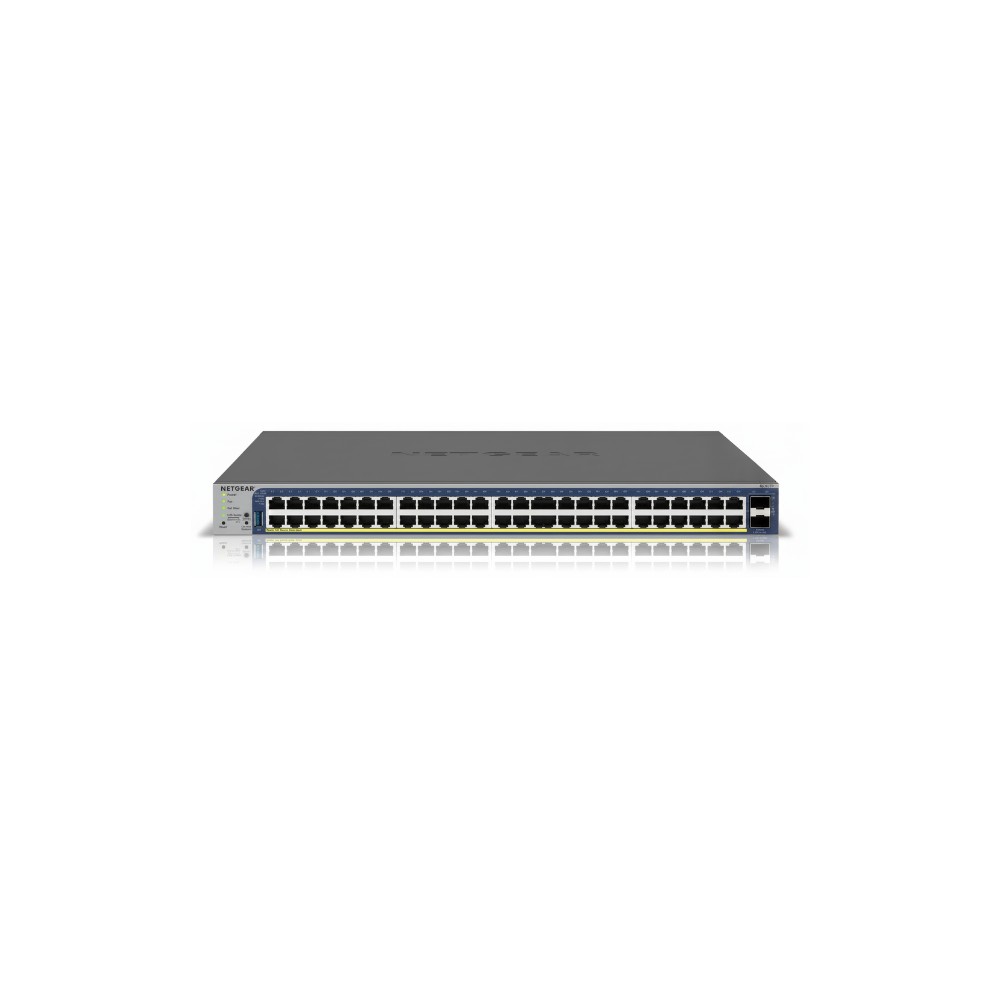

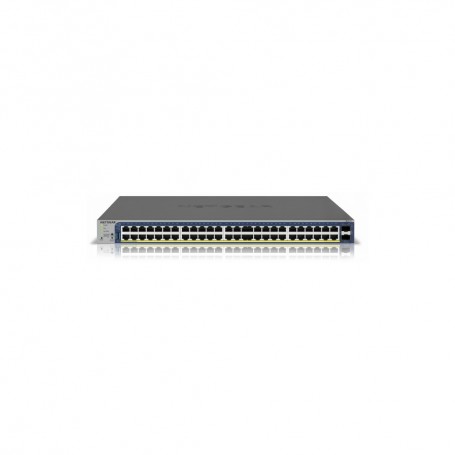

Netgear GS752TXP-300NAS - 48-Port PoE+ Smart Managed Pro Switch with 10G SFP+
Overview :
The Netgear GS752TXP-300NAS is a high-density Layer 2+ Smart Managed Pro switch engineered for SMBs and distributed enterprise environments requiring robust power delivery and high-bandwidth uplinks. As part of the S3300 series, this switch features 48 Gigabit Ethernet ports with PoE+ support and four dedicated 10G SFP+ ports. These 10G interfaces serve a dual purpose: providing high-speed uplinks to core network layers or enabling resilient stacking.
In modern deployment contexts, such as branch offices or campus edges, the GS752TXP-300NAS solves the bottleneck issues associated with converging high-resolution IP surveillance, WiFi 6 access points, and VoIP infrastructure. Its stacking capability allows IT administrators to manage up to six units as a single logical entity with a 40Gbps bi-directional stacking backplane, significantly simplifying scalability. Management is handled through a streamlined web-based GUI, offering advanced traffic management, including IPv4/IPv6 static routing, LACP, and sophisticated QoS. This provides the granular control of an enterprise-grade switch without the operational complexity of a full CLI-only system, making it a reliable backbone for growing digital infrastructures.Key Features :
48 PoE+ ports with a total power budget of 390W.
Four dedicated 10G SFP+ ports for uplinks or stacking.
Stack up to six units for 40Gbps bi-directional throughput.
Advanced Layer 2+ features including IPv4 static routing.
Specifications :
| Brand | Netgear |
| Part Number | GS752TXP-300NAS |
| Product Type | Smart Managed Pro Switch |
| Total Ports | 52 (48 GbE + 4 10G SFP+) |
| PoE Standard | IEEE 802.3at (PoE+) |
| PoE Budget | 390 W |
| Switching Capacity | 176 Gbps |
| Stacking Bandwidth | 40 Gbps |
| MAC Address Table | 16K entries |
| VLAN Support | 256 VLANs |
| Form Factor | 1U Rackmount |
| Dimensions | 440 x 310 x 43 mm |
| Weight | 5.03 kg |
| Operating Temperature | 0° to 50° C |
