Detailed Specifications

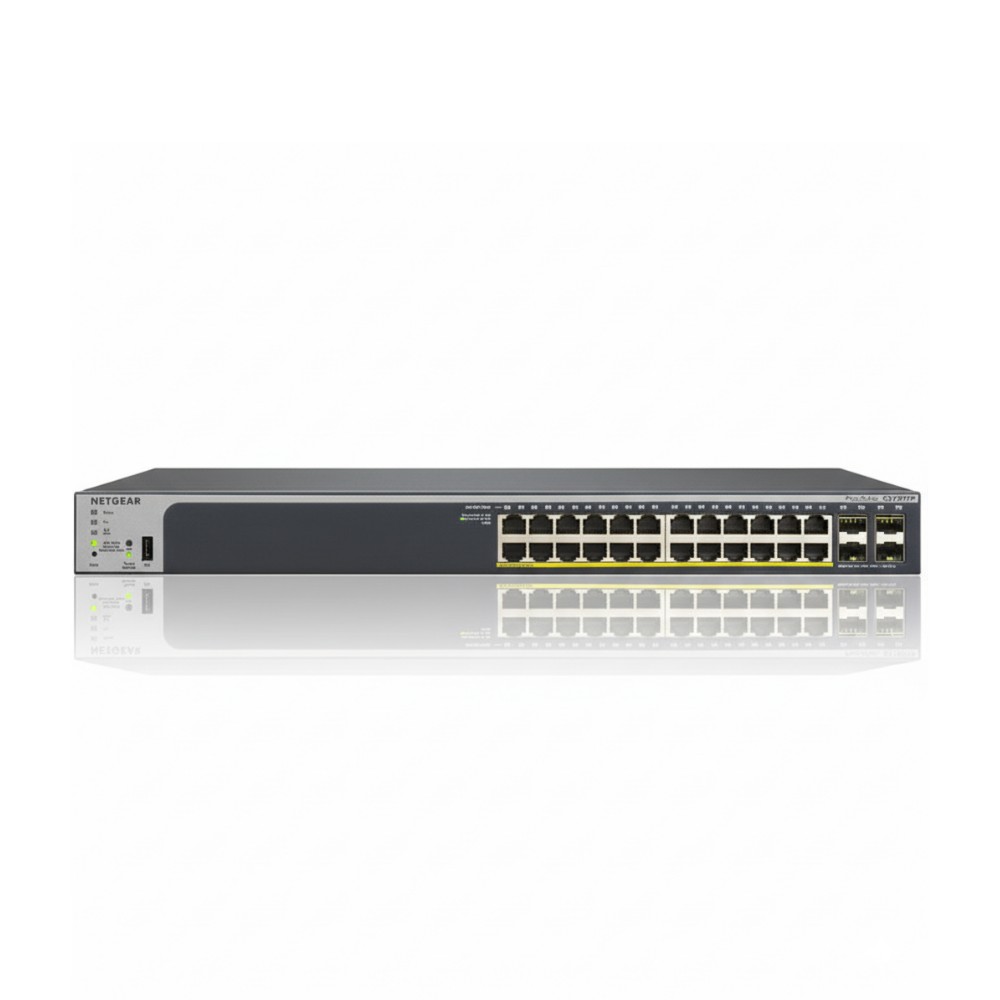

Netgear GS728TXP-300NAS - 24-Port PoE+ Smart Managed Pro Switch with 10G Stacking
Overview :
The Netgear GS728TXP-300NAS is a high-performance member of the S3300 Smart Managed Pro series, specifically engineered to serve as a reliable access layer for growing SMBs and distributed enterprise branch offices. This switch addresses the critical need for high-bandwidth uplinks and scalable power delivery in modern networking environments. It features 24 Gigabit Ethernet ports with PoE+ support, alongside four dedicated 10G ports×two 10GBASE-T copper and two SFP+ fiber×ensuring versatile connectivity for high-speed servers and storage arrays.
In a deployment context, the GS728TXP-300NAS excels at the network edge or within a campus environment where stacking is required for simplified management and redundancy. With a 40Gbps bi-directional stacking backplane, administrators can manage up to six units as a single logical entity, significantly reducing operational complexity. The integration of Layer 2+ features, including static routing, allows for efficient inter-VLAN traffic management at the hardware level, offloading tasks from the primary router. This switch provides a cost-effective, future-proof solution for organizations transitioning to 10G infrastructure while maintaining the power requirements for VoIP, IP surveillance, and 802.11ac/ax wireless access points.Key Features :
24 PoE+ ports providing a total power budget of 190W.
Dual 10GBASE-T and dual SFP+ ports for flexible 10G uplinks.
True stacking capability for up to six units at 40Gbps.
Layer 2+ static routing for optimized inter-VLAN traffic.
Specifications :
| Brand | Netgear |
| Part Number | GS728TXP-300NAS |
| Product Type | Smart Managed Pro Switch |
| Total Ports | 28 (24 x 1G, 4 x 10G) |
| PoE+ Ports | 24 x IEEE 802.3at |
| PoE Power Budget | 190 W |
| Switching Capacity | 128 Gbps |
| Stacking Bandwidth | 40 Gbps (Bi-directional) |
| Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 256 VLANs |
| Form Factor | 1U Rackmount |
| Dimensions | 440 x 257 x 43 mm |
| Weight | 3.77 kg |
| Operating Temperature | 0° to 50° C |
