Detailed Specifications

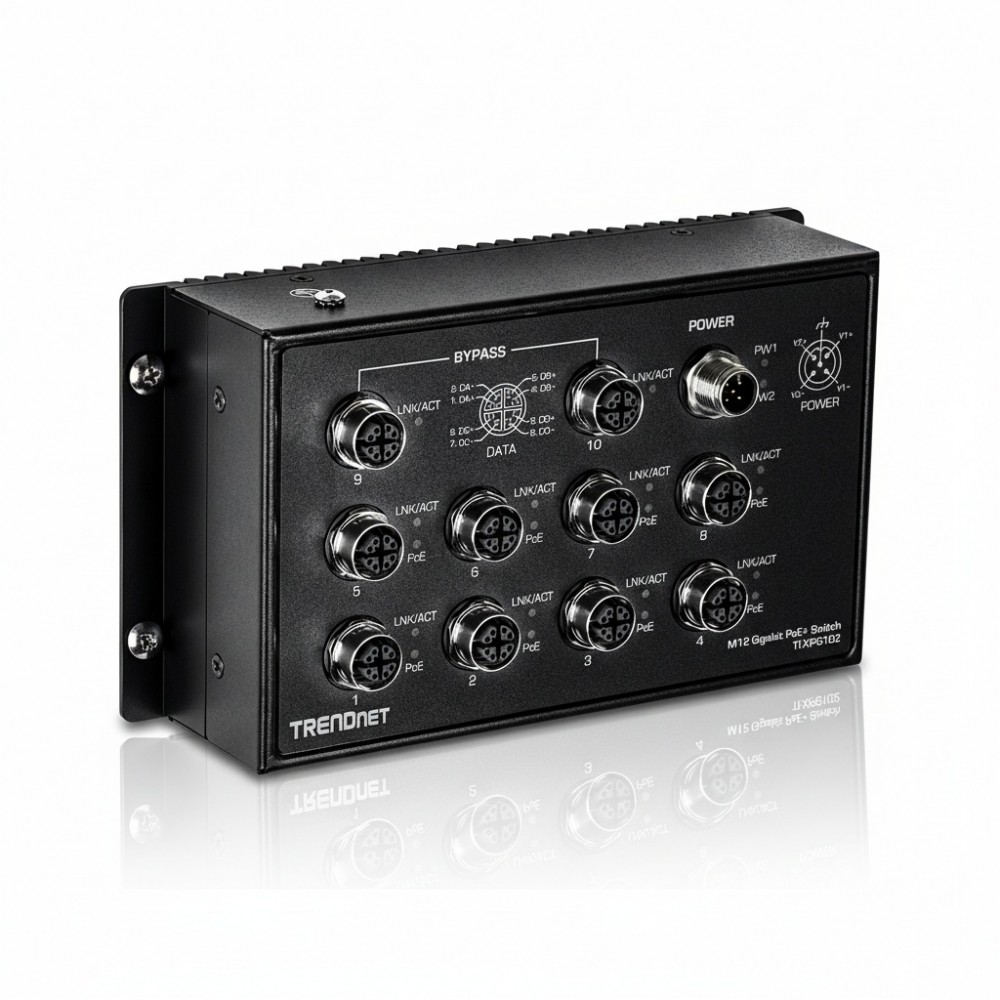

TRENDnet TI-XPG102 - Industrial EN 50155 PoE+ Switch
Overview
The TRENDnet TI-XPG102 is a hardened, unmanaged Ethernet switch built for railway and other industrial rolling-stock applications. It delivers 8 M12 (X-code) Gigabit PoE+ ports plus 2 M12 bypass Gigabit ports, enabling robust connectivity for devices like cameras, sensors, and access points in moving vehicles. Its PoE budget supports up to 200 W at 56 V DC (or 100 W at 24 V DC), making it viable for power-intensive field equipment. The rugged metal housing meets IP40 protection standards and complies with EN 50155, giving it durability under high shock, vibration, and wide temperature extremes (-40 °C to 75 °C). With 20 Gbps of switching capacity and jumbo frame support (up to 9 KB), the TI-XPG102 handles high-throughput applications reliably. The design supports a redundant 24-56 V DC input for resilience in fluctuating power environments. It mounts securely on walls and features a grounding point to guard against electrical surges. Overall, this switch is suited for transport systems such as trains and trams, or industrial automation environments where certified, rugged PoE switching is needed.
Key Features
8 × M12 (X-code) Gigabit PoE+ ports
2 × M12 (X-code) Gigabit ports with bypass
Built for EN 50155 railway power and shock
200 W PoE budget @ 56 V DC
Metal housing rated IP40
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TI-XPG102 |
| Product Type | Industrial M12 Gigabit PoE+ Switch |
| PoE Power Budget | 200 W @ 56 V DC / 100 W @ 24 V DC |
| Ports | 8 × M12 (X-code) PoE+, 2 × M12 (X-code) bypass, 1 × M12 (A-code) power |
| Switching Capacity | 20 Gbps |
| Buffer / RAM | 512 KB |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | Up to 9 KB |
| Input Voltage | 24-56 V DC |
| Power Consumption (no PoE) | 5.76 W |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Humidity | Up to 95% non-condensing |
| Dimensions (L × W × H) | 6.3 in × 3.8 in × 2 in |
| Weight | 1.95 lb (31.2 oz ≈ 0.88 kg) |
| Shock / Vibration | EN 60068-2-27 (shock), EN 60068-2-6 (vibration) |
| Certifications | EN 50155, EN 50121-3, EN 50121-4, CE, FCC |
| MTBF | 510,037 hours |
