Detailed Specifications

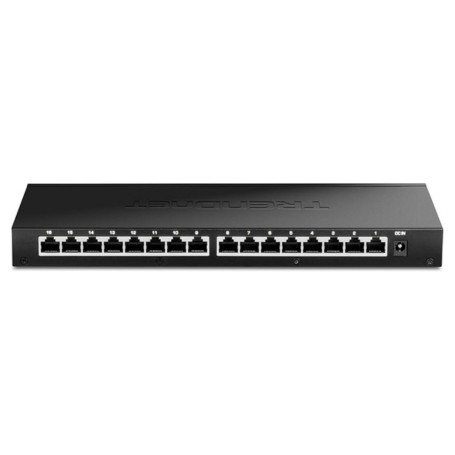

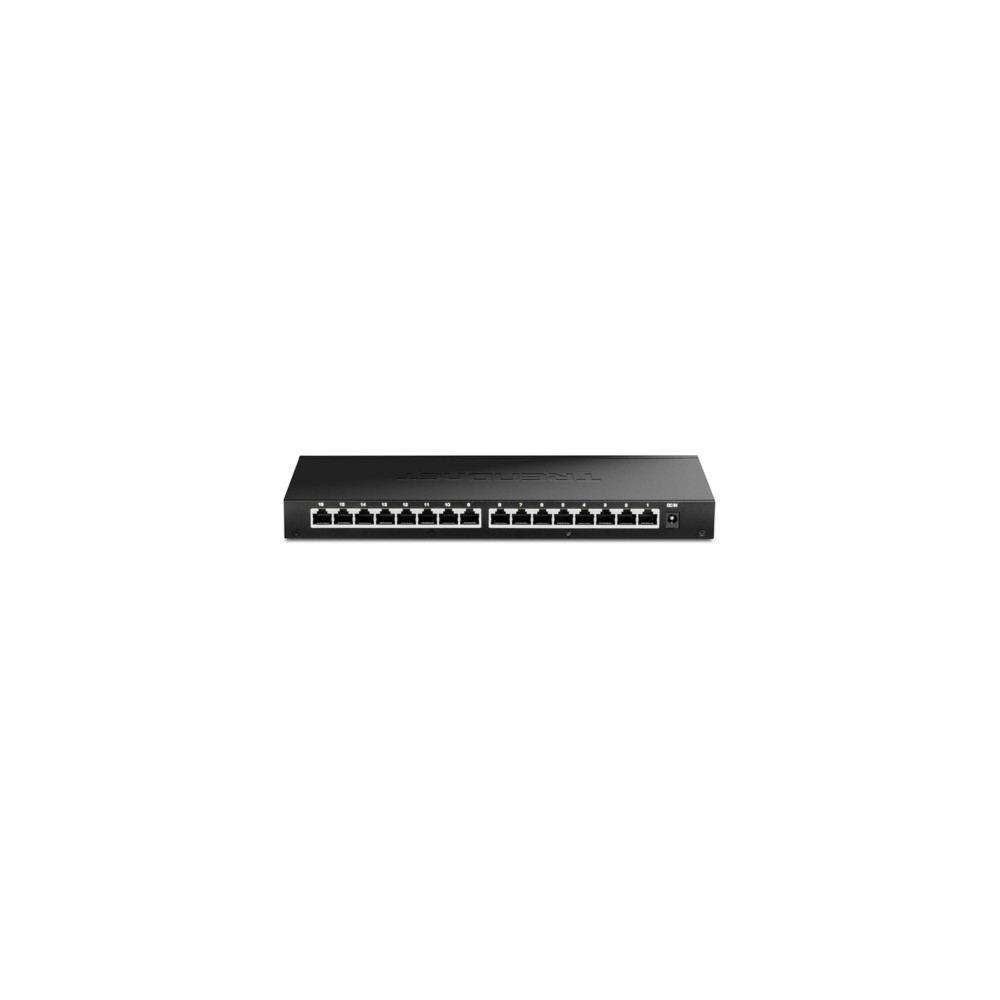

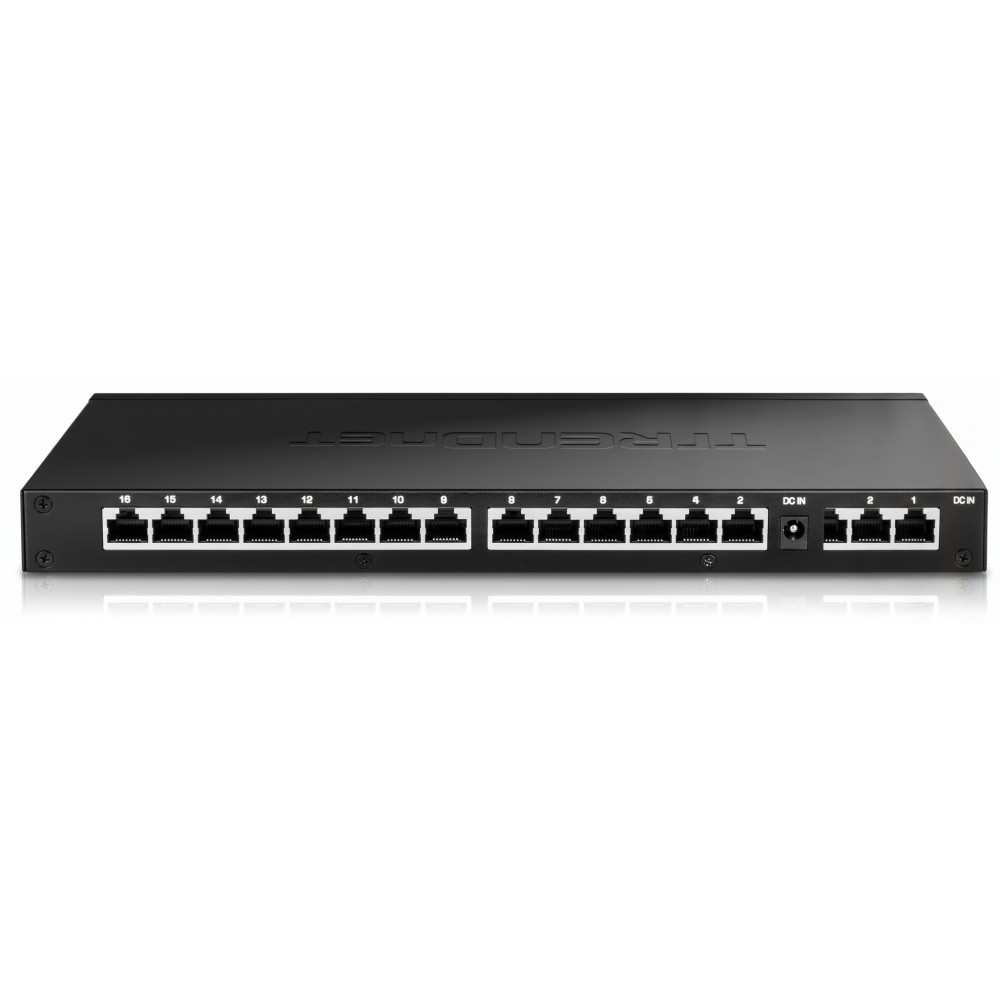

TRENDnet TEG-S3160 - 16-Port 2.5G Ethernet Switch
Overview :
The TRENDnet TEG-S3160 is an unmanaged multi-gigabit switch designed for environments that need to boost connectivity without redesigning cabling. It provides 16 RJ-45 ports capable of 100/1000/2.5 Gbps, allowing existing Cat5e or better infrastructure to deliver higher throughput. With its fanless design and solid metal housing, the switch operates silently and reliably, making it suitable for both desktop and rack installations. It supports a switching capacity of 80 Gbps, ensuring no-performant bottleneck under heavy aggregated traffic. The device supports jumbo frames up to 12 KB and maintains a MAC address table of 16K entries. Its installation flexibility comes from included rack-mount brackets and wall-mount capability. This switch is ideal for small to midsize offices, edge deployments, or high-speed access layers in converged networks. Power is supplied via a 12 V DC adapter, and its wide AC input range (90-264 V) supports global deployment. With a lifetime warranty, the TEG-S3160 is a practical choice for long-term, unmanaged multi-gig access.
Key Features
16 × 2.5 GbE RJ-45 ports
Fanless metal housing for silent operation
80 Gbps switching capacity
Rack-mount + wall-mount support
Jumbo frame support up to 12 KB
Specifications
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TEG-S3160 |
| Product Type | Unmanaged Multi-Gigabit Switch |
| Number of Ports | 16 × RJ-45 |
| Port Speeds Supported | 100 / 1000 / 2500 Mbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps (64-byte packet) |
| MAC Address Table Size | 16,000 entries |
| Buffer (RAM) | 1.5 MB |
| Jumbo Frame Size | 12 KB |
| Power Input | 90-264 V AC, 47/63 Hz |
| Power Output | 12 V DC, 3 A |
| Power Consumption | ≈ 7.26 W |
| Operating Temp | 0°C - 40°C (32°F - 104°F) |
| Operating Humidity | Max 90% non-condensing |
| Dimensions (L × W × H) | 11.25 in × 5.02 in × 1.06 in |
| Weight | 2.16 lb (≈ 0.98 kg) |
