Detailed Specifications

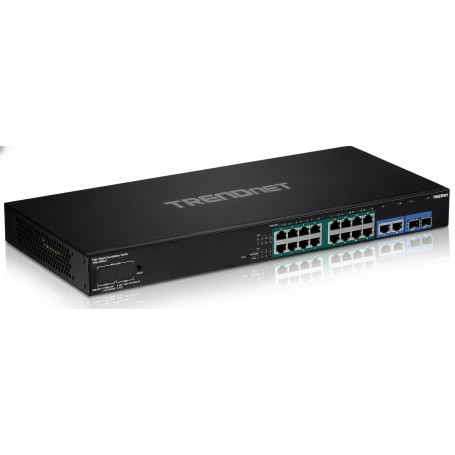

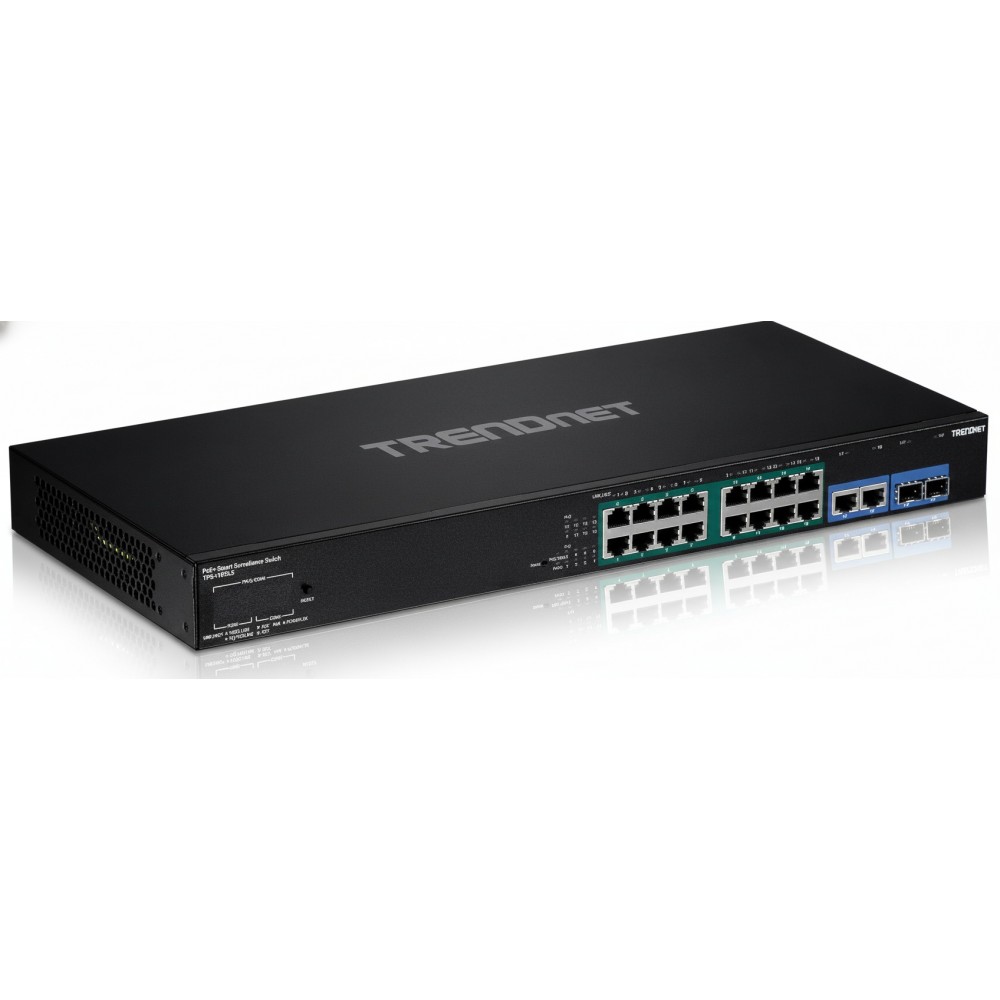

TRENDnet TPE-3018LS - 18-Port Gigabit PoE+ Smart Surveillance Switch
Overview
The TRENDnet TPE-3018LS is a managed 18-port Gigabit switch engineered for surveillance system integrators and network engineers deploying IP cameras and NVRs. It features 16 dedicated Gigabit PoE+ ports for powering devices plus 2 shared Gigabit ports (either RJ-45 or SFP) to extend uplink flexibility. With a total PoE budget of 220 W the device supports full 30 W per port on the PoE ports and offers long-distance PoE+ support up to 200 m at 10 Mbps. It is designed for 1U rack-mount installation in network rooms or surveillance closets and supports advanced traffic management: IPv4/IPv6, LACP, 802.1Q VLANs, IGMP snooping, QoS, and SNMP monitoring. The built-in "surveillance" GUI simplifies discovery and management of ONVIF-compliant cameras, making this switch a practical choice for campus, branch or data-centre surveillance edge deployments.
Key Features
16 Gigabit PoE+ ports plus 2 shared RJ-45/SFP ports
220 W PoE budget, up to 30 W per port (ports 1-16)
Long-distance PoE+ support up to 656 ft (200 m) at 10 Mbps
36 Gbps switching fabric and 8K MAC address table
Front-panel 4-digit LED display showing PoE power statistics
Technical Specifications
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TPE-3018LS |
| Product Type | 18-Port Gigabit PoE+ Smart Surveillance Switch |
| PoE Ports | 16 × Gigabit RJ-45 (ports 1-16) |
| Uplink Ports | 2 × Shared ports (RJ-45 or SFP, 100/1000 Mbps) |
| Total PoE Budget | 220 W |
| Switching Capacity | 36 Gbps |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | 10 KB |
| Port Buffer Memory | 512 KB |
| Maximum Forwarding Rate | 26.7 Mpps (64-byte packets) |
| Input Power | 100-240 V AC, 50-60 Hz |
| Dimensions (W × D × H) | 17.3″ × 9.8″ × 1.74″ (440 × 249 × 44.45 mm) |
| Weight | 6.45 lbs (2.93 kg) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
