Detailed Specifications

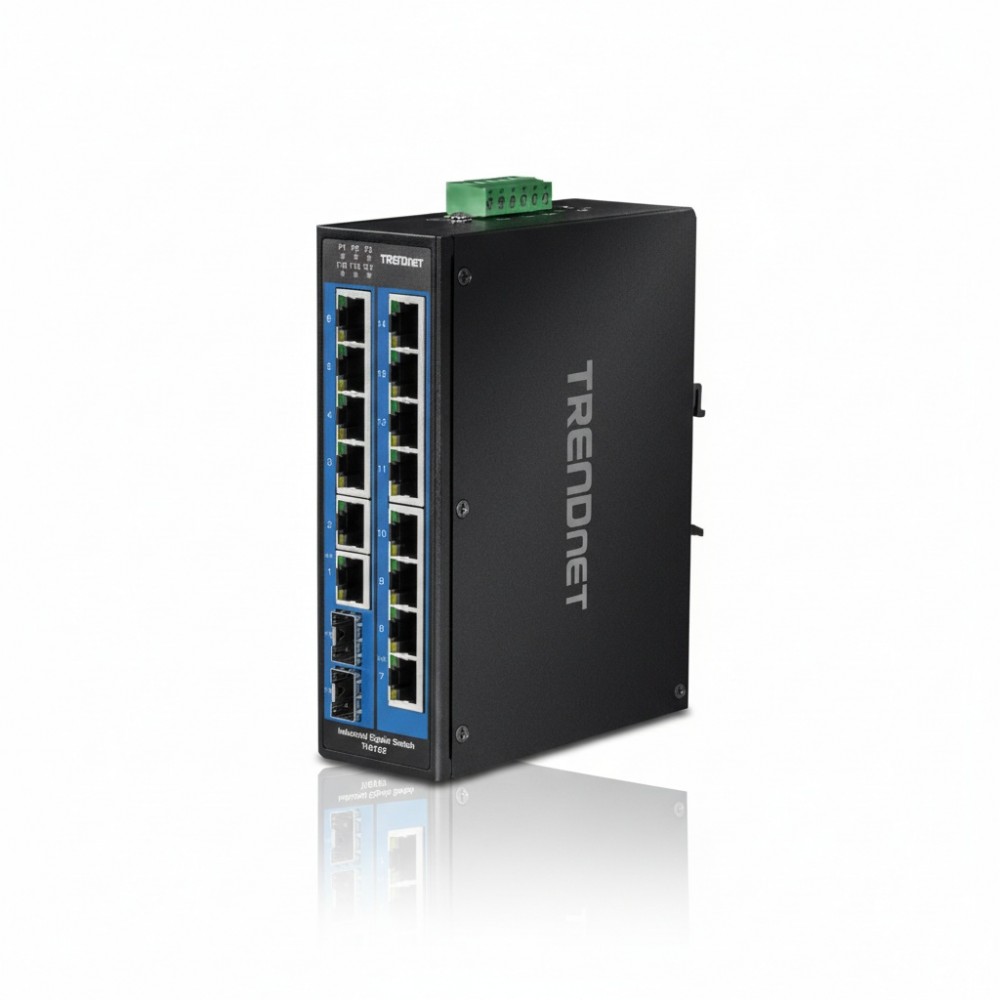

TRENDnet TI-G162 - 16-Port Industrial Gigabit Switch
Overview :
The TRENDnet TI-G162 is a hardened industrial Ethernet switch for engineers deploying reliable, high-speed connectivity in demanding environments. It provides 14 copper Gigabit ports plus 2 SFP slots supporting 1000Base-FX, allowing long-distance fiber connections. With a switching capacity of 32 Gbps, it can handle heavy network loads without bottlenecks. Built in a metal chassis with IP30 ingress protection, the TI-G162 tolerates severe vibration, shock, and wide-temperature operation from -40 °C to +75 °C, making it suitable for industrial sites, automation systems, or remote infrastructure. Its redundant power input design with overload protection and an alarm relay for power failures supports high availability. Mountable on DIN-rail or wall, it integrates well in control cabinets and supports grounding for surge protection × ideal for engineers building robust, resilient industrial networks.
Key Features
14 x 10/100/1000 Mbps copper ports
2 x Gigabit SFP slots for fiber modules
32 Gbps switching fabric capacity
Redundant power inputs with overload protection
Alarm relay for power-failure notifications
Technical Specifications
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TI-G162 |
| Product Type | Industrial Gigabit DIN-Rail Switch |
| Copper Ports | 14 × Gigabit RJ-45 |
| SFP Slots | 2 × Gigabit |
| Switching Capacity | 32 Gbps |
| MAC Address Table | 8 K entries |
| Jumbo Frame Support | Up to 9 KB |
| Forwarding Rate | 23.8 Mpps (64-byte packets) |
| Operating Temperature | -40 °C to +75 °C |
| Storage / Shock / Vibration Tolerance | Shock: EN 60068-2-27; Free-fall: EN 60068-2-32; Vibration: EN 60068-2-6 |
| Enclosure Rating | Metal, IP30 |
| Redundant Power Input | 12-56 V DC |
| Alarm Relay | 1 A, 24 V DC contact |
| MTBF | ~514,167 hours @ 50 °C |
| Dimensions (L × W × H) | 6.1″ × 4.7″ × 1.9″ (155 × 120 × 48 mm) |
| Weight | ~1.24 lb (0.562 kg) |
