Detailed Specifications

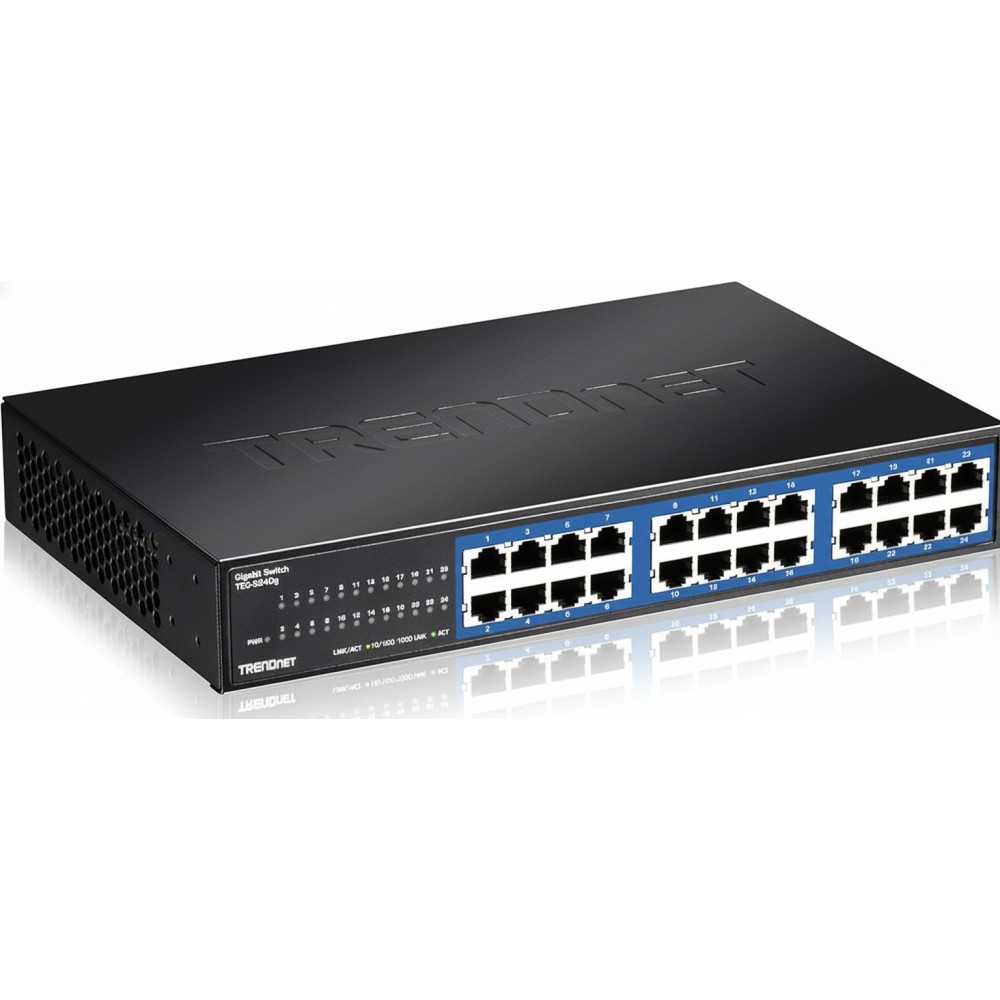

TRENDnet TEG-S25D - 24-Port Gigabit Desktop Switch
Overview :
The TRENDnet TEG-S25D is a 24-port unmanaged gigabit switch built for reliable, high-capacity connectivity in small to medium networks. It targets IT teams and network engineers who need simple, high-speed switching without configuration overhead. With all 24 RJ-45 ports offering gigabit performance and a switching fabric of 48 Gbps, the unit handles full-duplex traffic smoothly and minimizes congestion. Its metal housing × coupled with a fanless design × lowers the risk of mechanical failure and reduces noise in office or server-room environments. The built-in universal power supply (100-240 V AC) eliminates external power bricks and declutters wiring. Rack-mount brackets are included, enabling deployment on a 1U rack, making the TEG-S25D suitable for both desktop and rack environments. Diagnostic LEDs provide real-time visibility of link and activity, helping engineers quickly troubleshoot basic network issues.
Key Features :
24 × 10/100/1000 Mbps RJ-45 ports
48 Gbps full-duplex switching capacity
Metal chassis for desktop or rack use
Fanless design for silent, reliable operation
Jumbo frame support up to 9 KB
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TEG-S25D |
| Product Type | 24-Port Gigabit Unmanaged Switch |
| Port Count | 24 × RJ-45 Gigabit (10/100/1000 Mbps) |
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.71 Mpps (64-byte packet) |
| Buffer Memory | 512 KB |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | Up to 9 KB |
| Power Input | 100-240 V AC, 50/60 Hz, 1 A |
| Power Consumption | Max 14.24 W |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Operating Humidity | Up to 90% non-condensing |
| MTBF | 364,460 hours |
| Dimensions (L × W × H) | 10.51 × 6.38 × 1.65 in (267 × 162 × 42 mm) |
| Weight | 2.93 lb (1.3 kg) |
| Certifications | FCC, CE, ETL |
| Rack Support | 1U rack-mount brackets included |
