Detailed Specifications

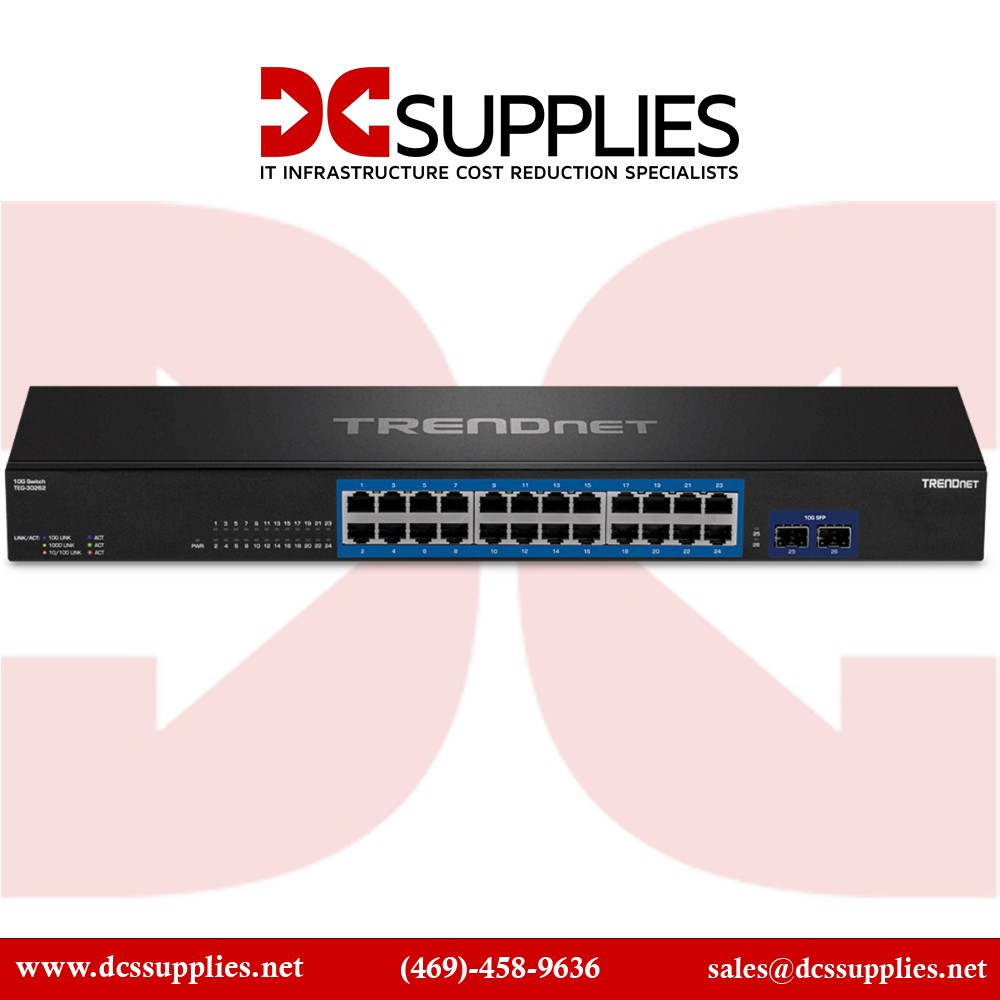

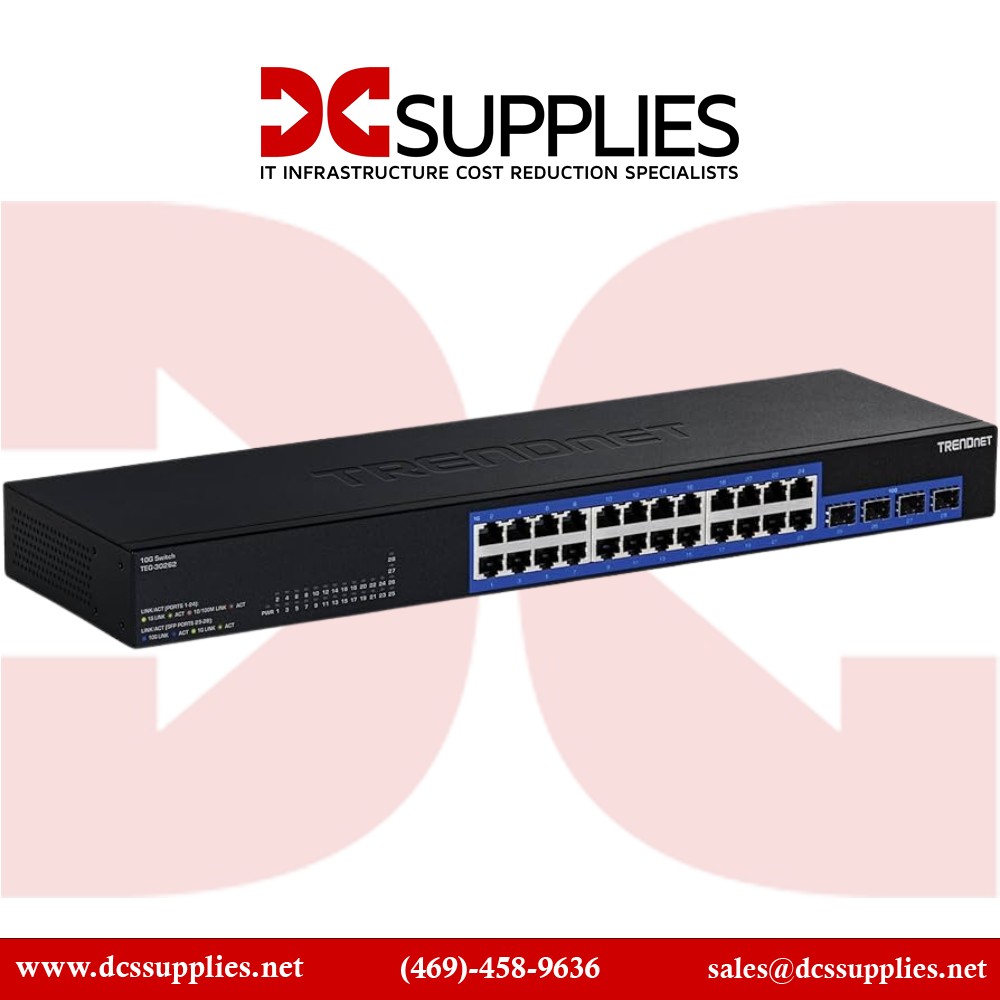

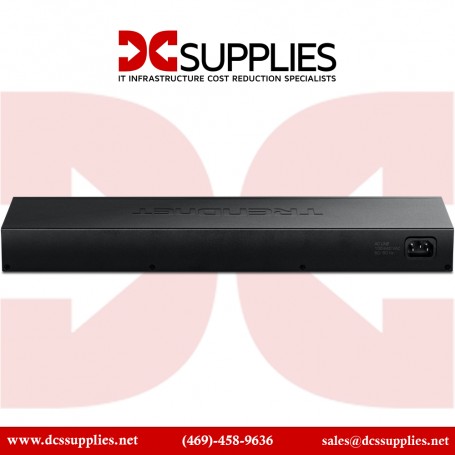

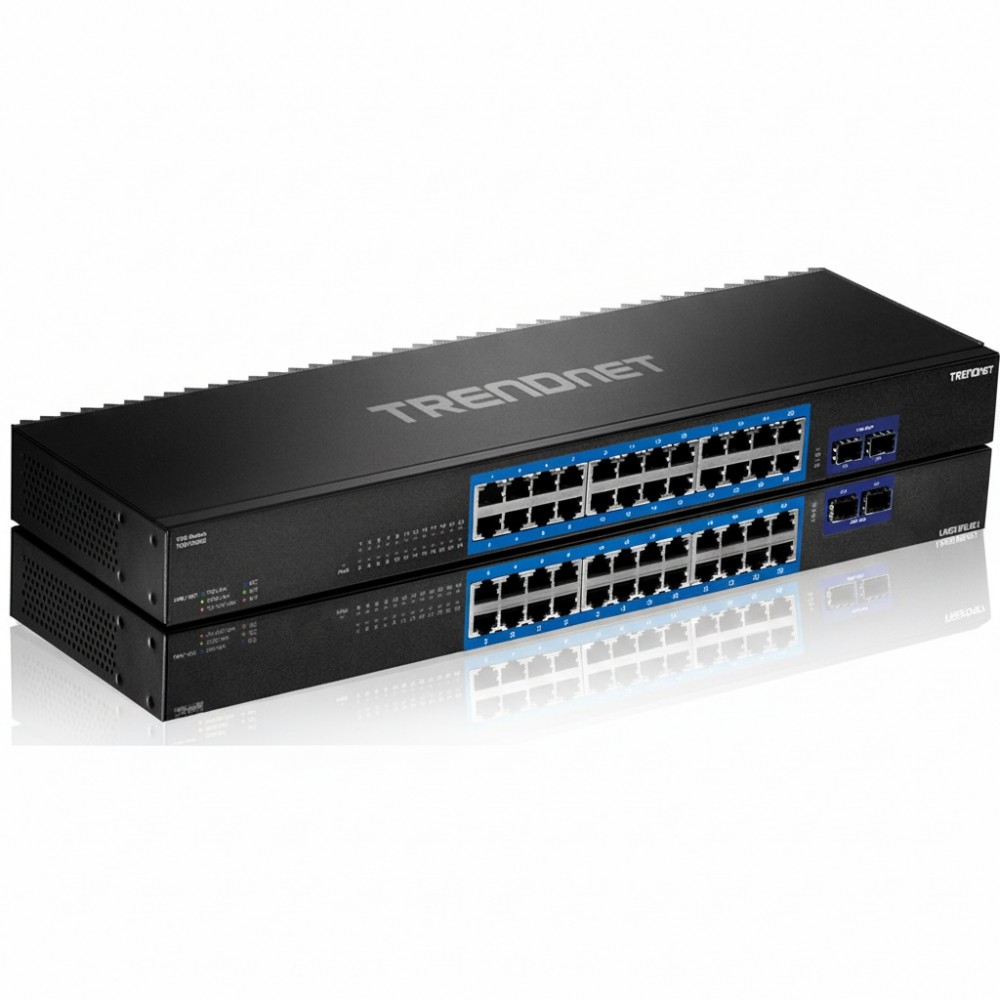

TRENDnet TEG-30262 - 24-Port Gigabit Switch with 10G SFP+
Overview :
The TRENDnet TEG-30262 is a high-bandwidth, unmanaged L2 switch designed for small to medium-sized businesses that need to add 10 Gbps uplink capacity without complex management overhead. It provides 24 Gigabit RJ-45 ports, plus dedicated SFP+ slots for uplinks or aggregation, enabling efficient expansion and backbone connectivity. The device is built in a rugged, fanless metal chassis that mounts in a standard 1U, 19-inch rack, making it suitable for server rooms, edge sites, or branch offices. Because it draws very little power and operates silently, it's practical for noise-sensitive environments. With a switching fabric capable of hundreds of gigabits per second, it supports large throughput and jumbo frame traffic, helping to future-proof the network backbone for virtualization, storage access, or server interconnects.
Key Features
24 Gigabit RJ-45 ports for dense access
2 (or 4) 10G SFP+ fiber uplink slots
128 Gbps switching capacity (v2.xR)
Fanless design for silent operation
1U metal chassis, rack-mountable
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TEG-30262 |
| Product Type | Unmanaged Network Switch |
| Ports | 24 × 10/100/1000 Mbps RJ-45, 2 (v1.0R) / 4 (v2.xR) × 10G SFP+ |
| Switching Capacity | 88 Gbps (v1.0R) / 128 Gbps (v2.xR) |
| Forwarding Rate | 65.5 Mpps (v1.0R) |
| MAC Address Table | 16K entries |
| Packet Buffer Memory | 1.5 MB |
| Jumbo Frames | Up to 10 KB (v1.0R) |
| Power Input | 100-240 V AC, 50/60 Hz |
| Power Consumption | 18.9 W (max) |
| Operating Temp | 0° to 40 °C (32°-104°F) |
| Humidity | Up to 90% non-condensing |
| Dimensions (L×W×H) | 17.32 × 5.11 × 1.73 in (440 × 130 × 44 mm) |
| Weight | 4.27 lb (1.935 kg) |
| Certifications | CE, FCC, ETL |
| Warranty | Lifetime (metal chassis), 1-year power supply/fan |
