Detailed Specifications

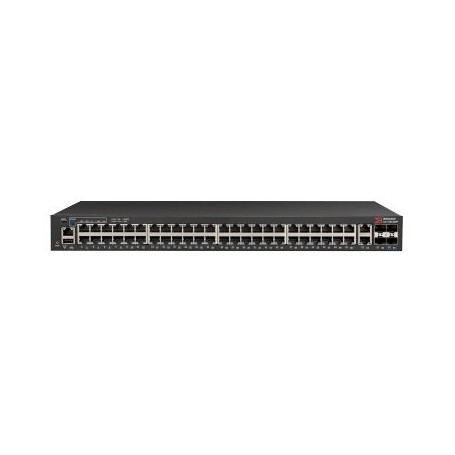

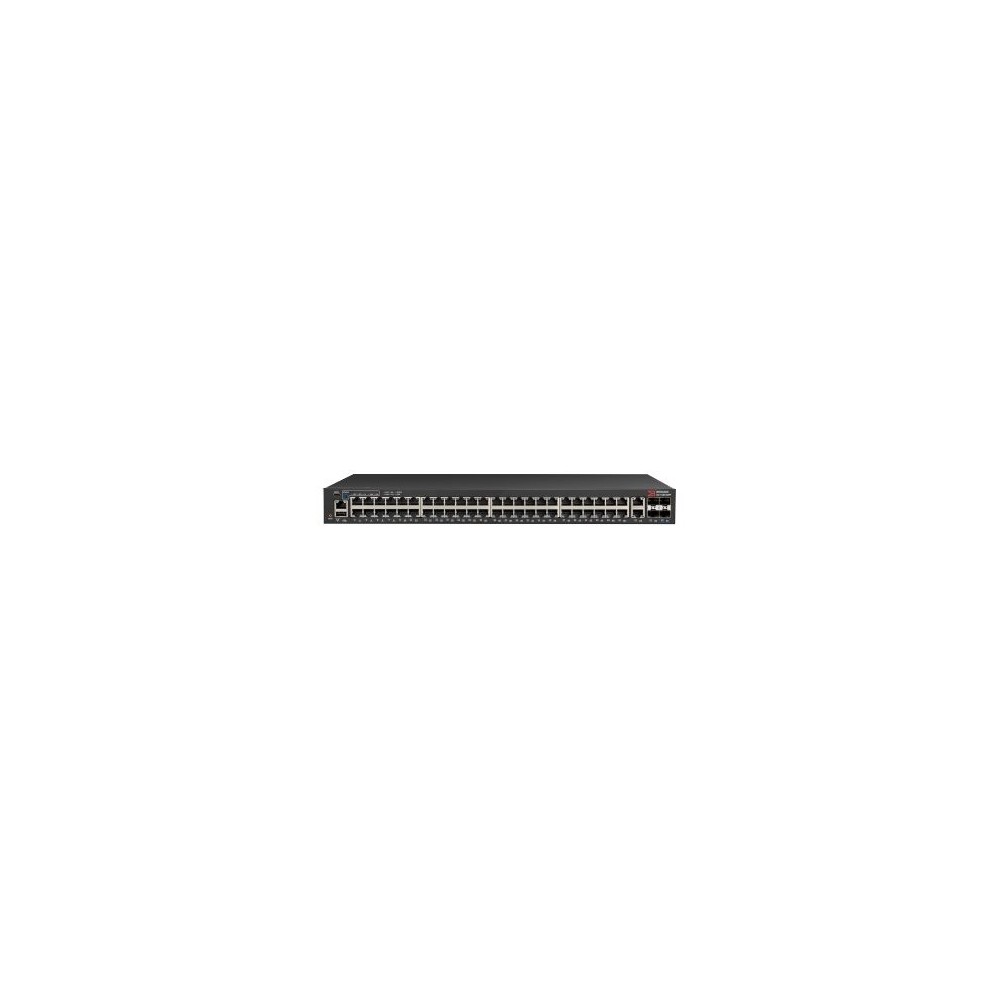

Ruckus ICX7150-48P-4X10GR-RMT3 – 48-Port PoE+ Switch with 4x10G SFP+ Uplinks
Overview :
The Ruckus ICX7150-48P-4X10GR-RMT3 is a high-performance Layer 3 managed switch designed for enterprise access networks. It features 48 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support, delivering up to 370W of power for connected devices. The switch includes 4 SFP+ ports for 10 Gigabit uplinks, providing high-speed connectivity for backbone or aggregation links. With a compact 1U form factor, it is suitable for data centers, server rooms, and edge deployments where space is limited. The device supports advanced Layer 3 features such as OSPF, VRRP, PIM, and Policy-Based Routing (PBR), enabling efficient traffic management and routing. Additionally, the switch offers stackable architecture, allowing for scalability and redundancy in network design. The RMT3 designation indicates that the switch comes with a three-year remote support package, ensuring ongoing assistance and firmware updates.
Key Features :
48 x 10/100/1000 Mbps PoE+ ports
4 x 10G SFP+ uplink ports
370W PoE power budget
Layer 3 features: OSPF, VRRP, PIM, PBR
Stackable architecture for scalability
Specifications
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | ICX7150-48P-4X10GR-RMT3 |
| Product Type | Managed Ethernet Switch |
| Ports | 48 x 10/100/1000 Mbps PoE+ |
| Uplink Ports | 4 x 10G SFP+ |
| PoE Power Budget | 370W |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Stacking | Yes |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.72" x 17.32" x 14.57" |
| Weight | 13.60 lbs |
| Power Supply | 525W AC Input |
| Operating Temperature | 0°C to 50°C |
| Management | Web GUI, CLI, SNMP |
