Detailed Specifications

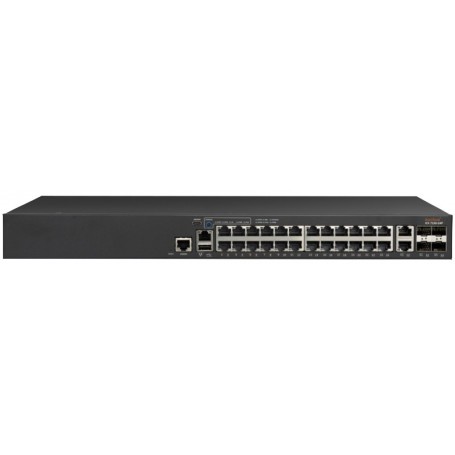

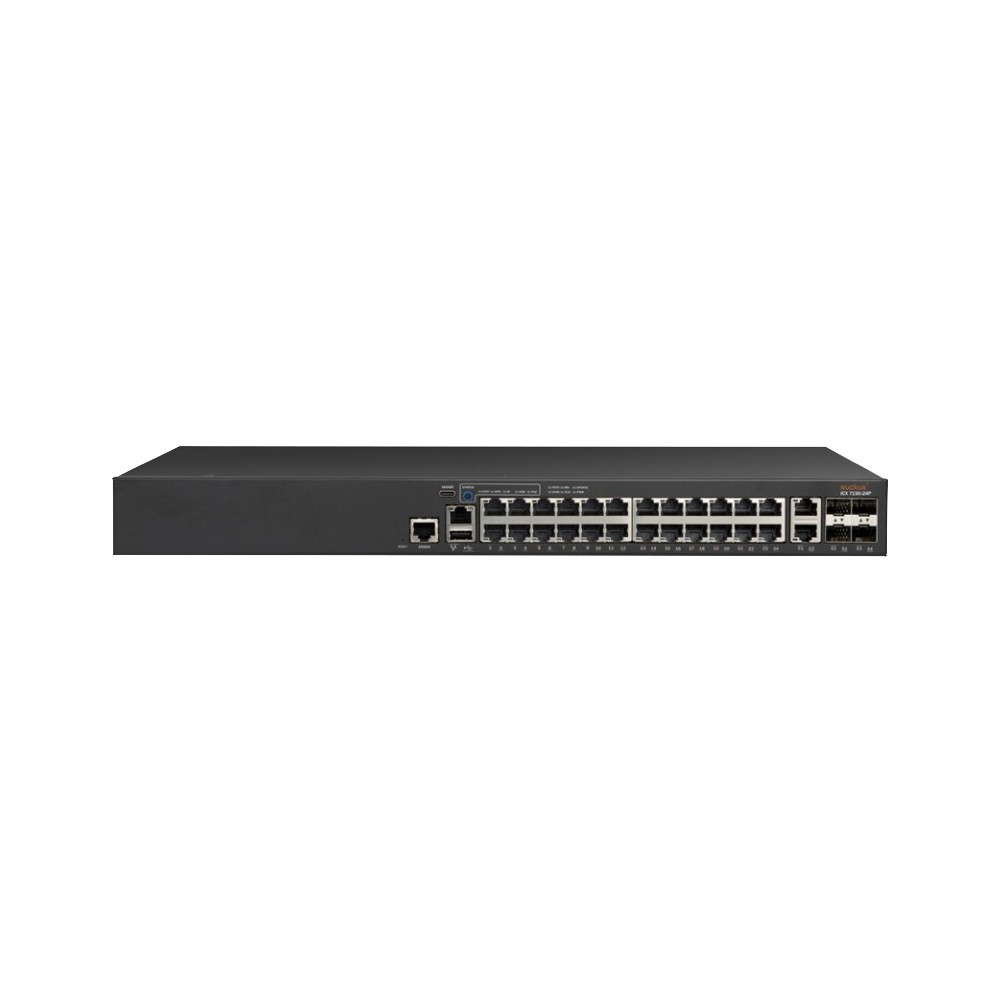

Ruckus ICX7150-24P-4X10GR-RMT3 – 24-Port PoE+ Managed Switch with 4x10GbE Uplinks
Overview :
The Ruckus ICX7150-24P-4X10GR-RMT3 is a Layer 3 managed Ethernet switch designed for enterprise access networks, offering 24 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support and four 10 Gigabit SFP+ uplink ports. This switch is ideal for powering and connecting devices such as IP phones, wireless access points, and surveillance cameras, providing a total PoE budget of 370W. It supports advanced Layer 3 features including Open Shortest Path First (OSPF), Virtual Router Redundancy Protocol (VRRP), Protocol Independent Multicast (PIM), and Policy-Based Routing (PBR), enabling efficient traffic management and redundancy. The switch is rack-mountable and comes with a three-year remote support package, ensuring reliable operation and support. Its compact design and robust feature set make it suitable for small to medium-sized enterprises, branch offices, and distributed campuses requiring high-performance networking solutions.
Key Features :
24 PoE+ Ports: Provides 24 x 10/100/1000 Mbps PoE+ ports for powering devices.
4x10GbE Uplinks: Equipped with four 10 GbE SFP+ ports for high-speed uplink connectivity.
370W PoE Budget: Delivers a total PoE budget of 370W to power connected devices.
Layer 3 Features: Supports OSPF, VRRP, PIM, and PBR for advanced routing capabilities.
Remote Support: Includes three years of remote support for maintenance and troubleshooting.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | ICX7150-24P-4X10GR-RMT3 |
| Product Type | Managed Ethernet Switch |
| Ports | 24 x 10/100/1000 Mbps PoE+ |
| Uplink Ports | 4 x 10 GbE SFP+ |
| PoE Budget | 370W |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Rack-Mountable | Yes |
| Remote Support | 3 Years |
| Power Supply | Internal, AC Input |
| Dimensions (H x W x D) | 1.73 x 17.32 x 10.51 inches |
| Weight | 7.7 lbs |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10% to 85% non-condensing |
