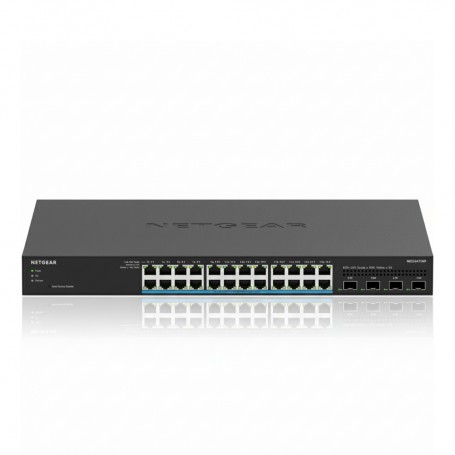

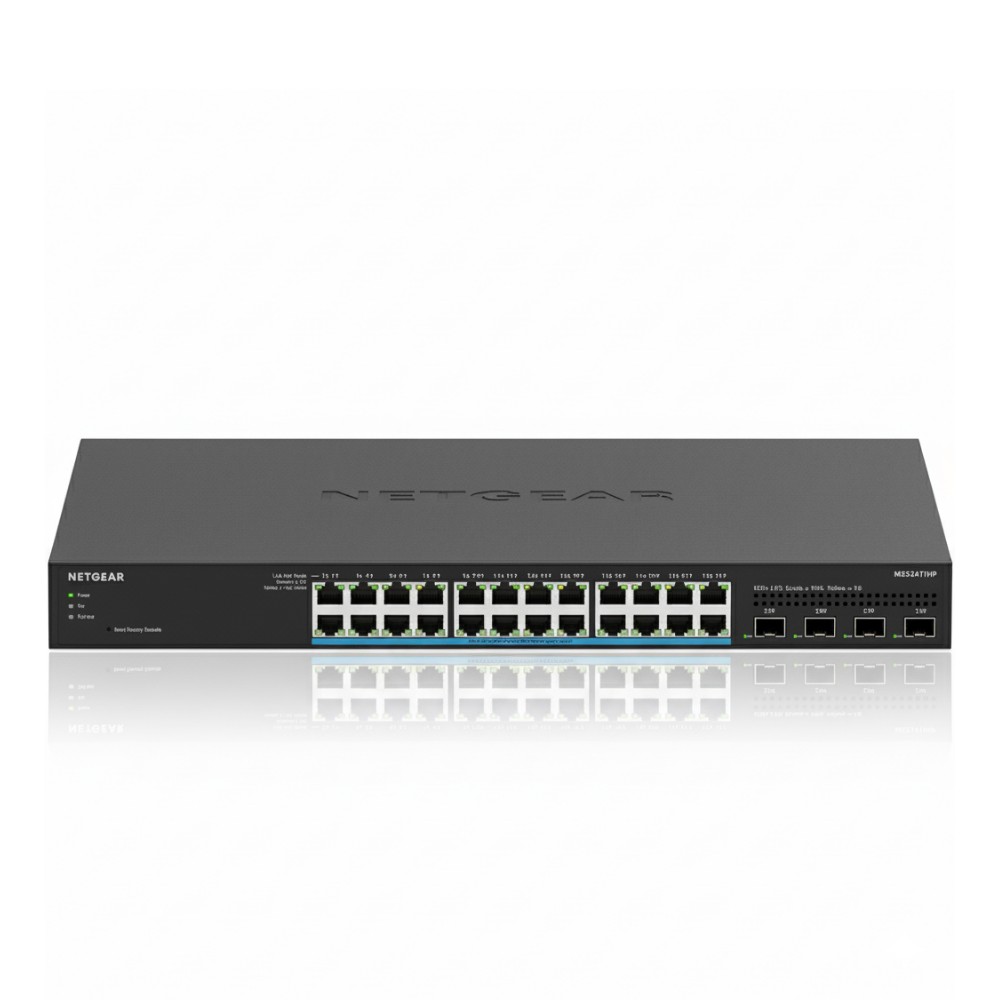

Netgear MS324TXUP-100NAS 24-Port Multi-Gigabit ethernet switch View larger

Netgear MS324TXUP-100NAS 24-Port Multi-Gigabit ethernet switch

New

24-Port Multi-Gigabit PoE++ Smart Switch.
×




  • New

Detailed Specifications

Netgear MS324TXUP-100NAS – 24-Port Multi-Gigabit PoE++ Smart Switch

Overview :

The Netgear MS324TXUP-100NAS is a high-density Multi-Gigabit Smart Managed Pro switch engineered to eliminate bandwidth bottlenecks in modern enterprise environments. As organizations transition to WiFi 6E/7 and high-resolution AV-over-IP, standard Gigabit infrastructure often fails to meet throughput demands. This switch provides a versatile port configuration, featuring eight 10G/Multi-Gig ports and sixteen 2.5G ports, ensuring that high-performance access points and workstations operate at their full potential without oversubscription.

Designed for the network edge or branch office deployments, the MS324TXUP-100NAS integrates Ultra60 PoE++ technology across all 24 copper ports. With a substantial 720W power budget, it delivers up to 60W per port, making it an ideal solution for powering power-hungry IoT devices, PTZ cameras, and LED lighting. Management is flexible, offering both a comprehensive local web interface for granular control and Netgear Insight for remote, cloud-based monitoring and configuration. This unit effectively bridges the gap between core 10G fiber backbones and the high-speed copper edge, providing a scalable path for growing B2B network infrastructures.

Key Features :

Eight 10G/Multi-Gig ports for high-speed uplink connectivity.

720W total PoE budget supporting Ultra60 PoE++ devices.

Four dedicated 10G SFP+ fiber ports for core network stacking.

Remote management via Netgear Insight Cloud management portal.

Specifications :

Brand Netgear
Part Number MS324TXUP-100NAS
Product Type Multi-Gigabit Smart Managed Pro Switch
Total Copper Ports 24 (8 x 10G/Multi-Gig, 16 x 2.5G)
SFP+ Uplink Ports 4 x 10G SFP+ (Dedicated)
PoE Standard IEEE 802.3bt PoE++ (Ultra60)
Total PoE Budget 720 W
Switching Capacity 200 Gbps
Forwarding Rate 148.8 Mpps
MAC Address Table 32K entries
Form Factor 1U Rackmount
Dimensions 440 x 310 x 43 mm
Weight 5.13 kg
Operating Temperature 0° to 50° C

Frequently Asked Questions :

Does this switch support 10G speeds on all 24 copper ports?

No. The switch features 8 ports that support 100M/1G/2.5G/5G/10G speeds and 16 ports that support 100M/1G/2.5G speeds. It also includes 4 dedicated 10G SFP+ ports for fiber uplinks.

Can I manage the MS324TXUP-100NAS without a cloud subscription?

Yes. While it is Netgear Insight Cloud ready for remote management, it includes a full local web-based Graphical User Interface (GUI) for standalone configuration without any recurring fees.

Is the 720W PoE budget sufficient for a full 24-port deployment?

The 720W budget is highly versatile. It can support up to 12 devices at the full 60W PoE++ (802.3bt) limit, or a full 24-port load of standard 30W PoE+ (802.3at) devices, depending on the actual power draw of your hardware.
