Detailed Specifications

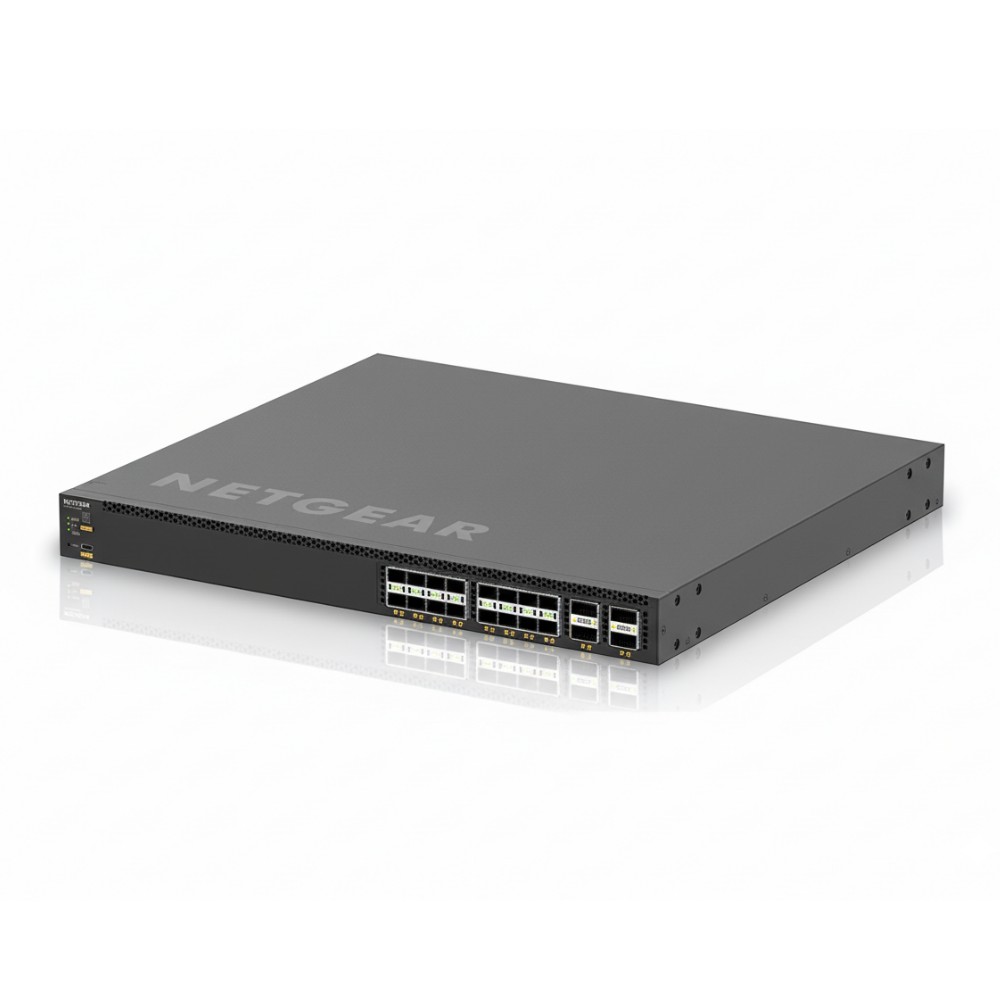

Netgear VSM4320C-100NES 25G/100G Managed Switch
Overview :
The Netgear VSM4320C-100NES is a high-performance managed switch designed for demanding professional AV and IT environments requiring flexible, low-latency, and high-bandwidth aggregation. It provides 16 SFP28 ports supporting 1/10/25 Gbps and 4 QSFP28 uplink ports supporting 40/100 Gbps connectivity, allowing seamless scalability across core, distribution, and edge networks. This switch is part of Netgear’s M4350 Series, engineered for converged AV-over-IP and enterprise infrastructures with precision timing and media flow optimization. It ensures accurate synchronization through SMPTE ST 2110 and PTP support, making it ideal for broadcast production, live event control rooms, and high-density data centers. With a built-in 420 W power supply, redundant options, and comprehensive Layer 2/Layer 3 management, it delivers reliability and operational flexibility across mission-critical applications.
Key Features :
16 SFP28 ports supporting 1/10/25 Gbps operation
4 QSFP28 uplink ports supporting 40/100 Gbps speeds
Built-in 420 W power supply with modular redundancy slot
Supports SMPTE ST 2110 and PTP for precise media synchronization
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | VSM4320C-100NES |
| Product Type | Managed Layer 2/3 switch |
| Switching Capacity | 1.6 Tbps |
| Forwarding Rate | 1,190 Mpps |
| Ports | 16 × SFP28 (1/10/25 G) + 4 × QSFP28 (40/100 G) |
| Management Interfaces | 1 × RJ-45 management, 1 × USB-C console, 2 × USB-A |
| Power Supply | Internal 420 W AC, modular backup supported |
| Cooling | Front-to-back airflow with variable-speed fans |
| Form Factor | 1U rackmount |
| Dimensions (W × D × H) | 440 mm × 400 mm × 43.2 mm (17.3 × 15.7 × 1.7 in) |
| Weight | 7.15 kg (15.76 lb) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Management Features | Web GUI, CLI, SNMP, RADIUS/TACACS+, IPv4/IPv6 management |
| Supported Protocols | LACP, LLDP, VLAN, MSTP, QoS, IGMP Snooping, DHCP Relay |
| Synchronization Support | IEEE 1588 PTP and SMPTE ST 2110 |
