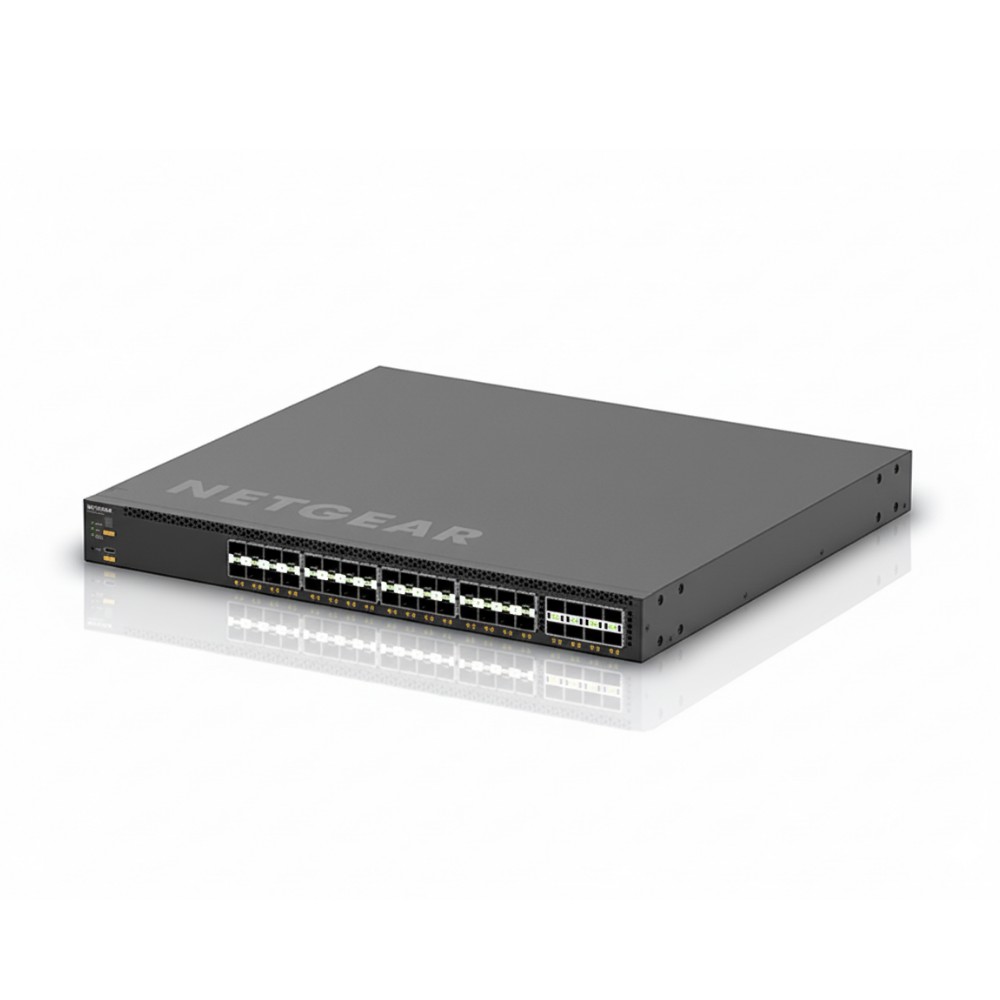

NETGEAR XSM4340FV-100NES – 32-Port 10G SFP+ Managed AV Switch
Overview :
The NETGEAR XSM4340FV-100NES is a fully managed network switch designed for high-performance AV-over-IP deployments. It offers 32 SFP+ ports for 10G fiber connectivity and 8 SFP28 ports for 25G uplinks, providing a total switching capacity of 1.04 Tb/s. The switch supports Layer 2 and Layer 3 features, including static, policy-based, and dynamic routing. It is optimized for AV installations, featuring NETGEAR IGMP Plus™ for efficient multicast handling and compatibility with the Engage Controller for simplified management.
Key Features :
32 x 10G SFP+ ports for high-speed connectivity
8 x 25G SFP28 ports for uplinks and stacking
1.04 Tb/s switching capacity with 773.76 Mpps forwarding rate
Supports Layer 2 and Layer 3 routing protocols
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | NETGEAR |
| Part Number | XSM4340FV-100NES |
| Product Type | Fully Managed AV Network Switch |
| Ports | 32 x 10G SFP+ ports, 8 x 25G SFP28 ports |
| Switching Capacity | 1.04 Tb/s |
| Forwarding Rate | 773.76 Mpps |
| CPU | Quad-Core 1.8 GHz Cortex A57 |
| Memory | 4 GB DDR4 |
| Power Supply | 420W internal; supports APS600Wv3, APS1200Wv2, APS2000Wv2 for 1+1 redundancy |
| Operating Temperature | 0°C to 45°C |
| Cooling | Fan-assisted (Noise Level: 61.8 dB) |
| Rack Mountable | Yes, 1U |
| Dimensions | 440 x 400 x 43.2 mm |
| Weight | 6.95 kg |
