NETGEAR XSM4324-100NES M4350 24-Port Desktop Managed Switch View larger

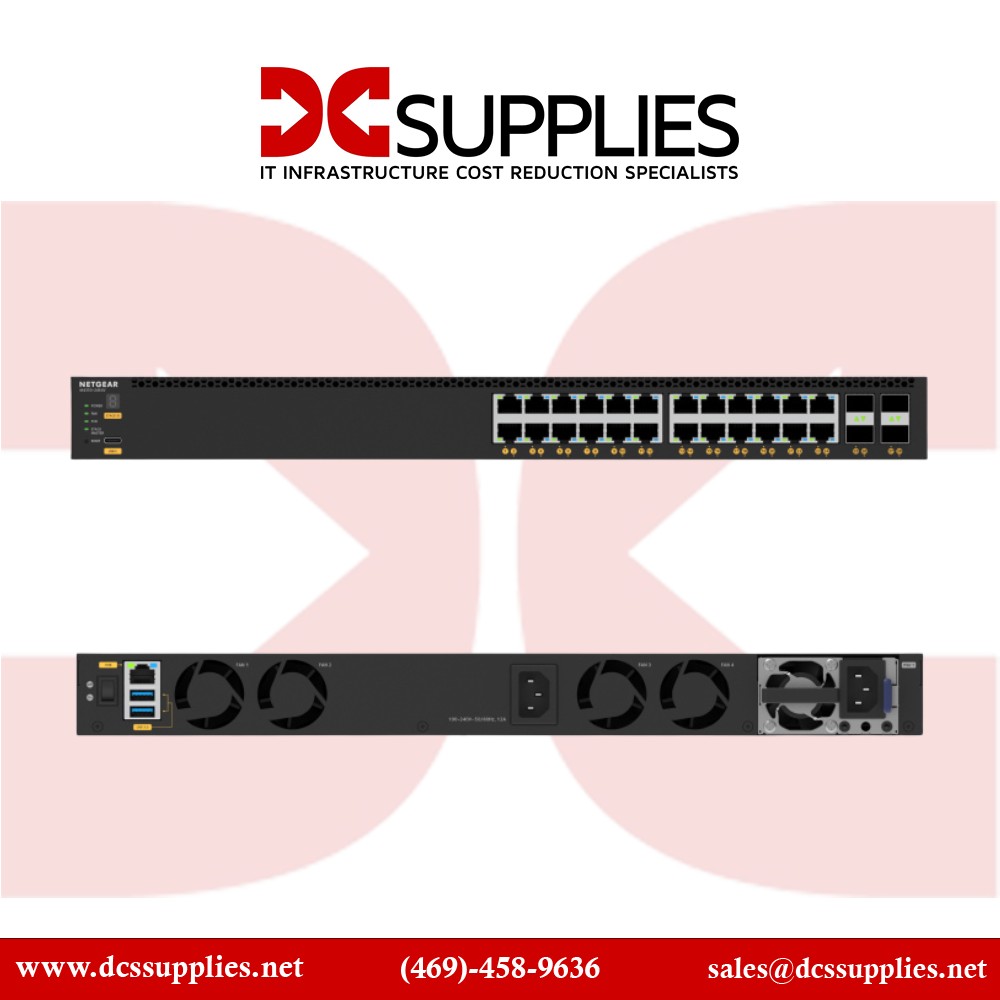

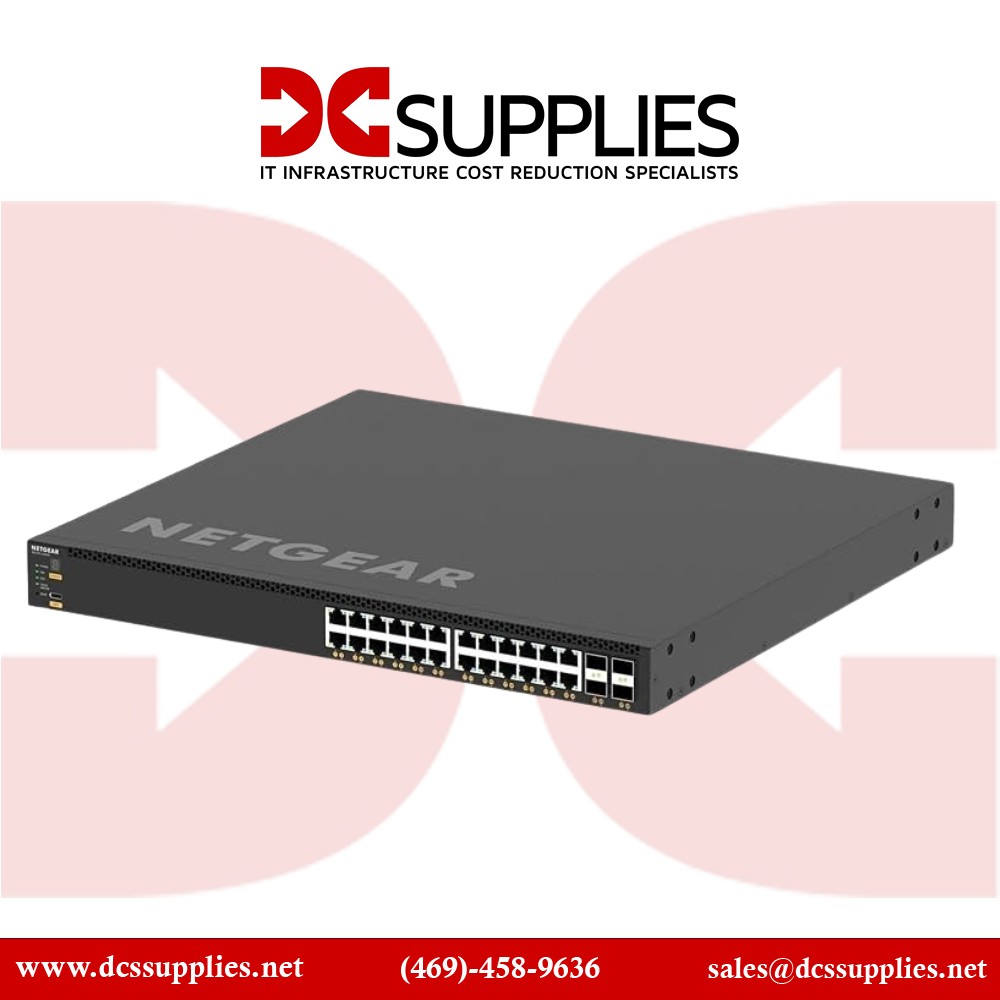

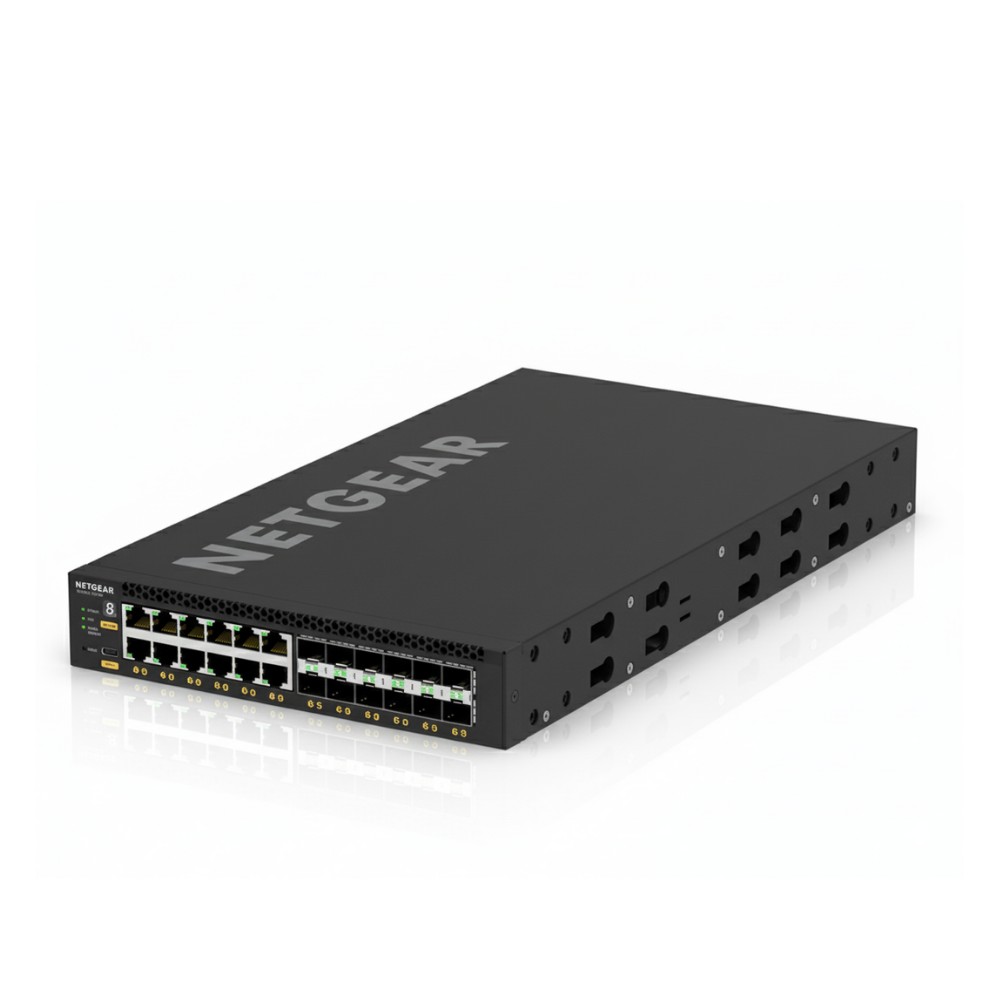

NETGEAR XSM4324-100NES M4350 24-Port Desktop Managed Switch

New

In Stock

24-Port 10G/Multi-Gig & SFP+ Managed Switch
×




$3,322.00

  • New

Detailed Specifications

NETGEAR XSM4324-100NES 24-Port Managed Switch

Overview :

The NETGEAR XSM4324-100NES, also known as the M4350-12X12F, is a fully managed Layer 3 switch designed for high-performance AV-over-IP and IT environments. It features 12 10G/Multi-Gig RJ45 ports and 12 10G SFP+ ports, delivering a switching capacity of 480 Gbps and a forwarding rate of 357.12 Mpps. The switch supports advanced Layer 3 routing protocols and offers a half-width 1U form factor, allowing for flexible deployment in space-constrained racks. Its design includes intelligent fan modes to minimize noise, making it suitable for both AV and IT applications.

Key Features :

  • 12 × 10G/Multi-Gig RJ45 ports and 12 × 10G SFP+ ports

  • 480 Gbps switching capacity and 357.12 Mpps forwarding rate

  • Layer 3 static, policy-based, and dynamic routing support

  • Intelligent fan modes for noise reduction

Technical Specifications :

SpecificationValue
Brand NETGEAR
Part Number XSM4324-100NES
Product Type Fully Managed Layer 3 Switch
Switching Capacity 480 Gbps
Forwarding Rate 357.12 Mpps
Ports 12 × 10G/Multi-Gig RJ45, 12 × 10G SFP+
Power Supply Internal, 240W
Form Factor Half-width 1U
Layer 3 Features Static, policy-based, dynamic routing
Fan Modes Intelligent fan modes for noise reduction
Rack Mountable Yes, with included mounting ears
MAC Address Table Size 16,000 entries
Jumbo Frame Support Up to 12,000 bytes
CPU Quad-Core up to 1.8 GHz Cortex A57
Memory 2 GB DDR4
