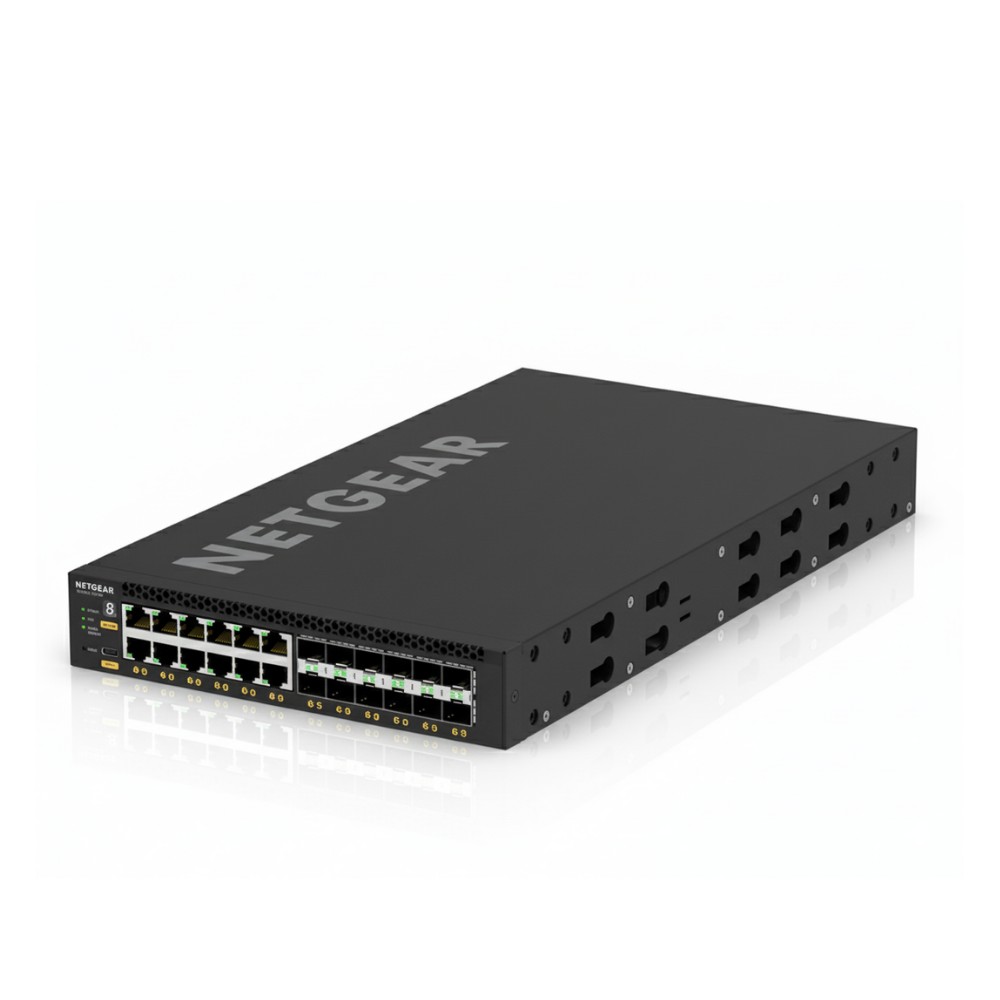

In a deployment context, the XSM4324-100NES serves as a versatile building block for high-bandwidth campus networks or as a top-of-rack switch in data centers. It supports non-stop forwarding (NSF) virtual stacking, allowing it to be managed as a single logical entity alongside other M4300 models, regardless of whether they are 1G or 10G units. With a comprehensive Layer 3 feature set—including static, policy-based, and dynamic routing (OSPF, VRRP, PIM)—it provides the necessary intelligence for modern network architectures. Its unique half-width form factor allows two units to be mounted side-by-side in a single 1U rack space, facilitating redundant 10G top-of-rack configurations in a compact footprint.
Key Features
- 24-port 10GBASE-T with 4 shared SFP+ fiber ports.
- Pre-configured for ProAV and SDVoE multicast traffic.
- Mixed stacking with 1G and 10G M4300 series models.
- Half-width 1U design for redundant side-by-side mounting.
Specifications
| Brand | Netgear |
| Part Number | XSM4324-100NES |
| Product Type | Layer 3 Managed Switch |
| Total 10G Ports | 24 x 10GBASE-T |
| SFP+ Ports | 4 x SFP+ (Shared) |
| Switching Capacity | 480 Gbps |
| Throughput | 357 Mpps |
| Form Factor | Rackmount (Half-width) |
| MAC Address Table | 32,000 entries |
| Power Consumption | 161W (Max) |
| Acoustics | 39.7 dB @ 25°C |
| Dimensions | 212 x 44 x 345 mm |
| Weight | 3.72 kg |
Frequently Asked Questions
Does this switch support Power over Ethernet (PoE)?
No, the XSM4324-100NES (M4300-24X) is a non-PoE model designed specifically for high-speed 10G data transport and ProAV signal distribution.
Can I stack this model with 1Gbps M4300 switches?
Yes, the M4300 series supports mixed stacking, allowing you to combine 1G and 10G models into a single logical unit for simplified management and redundancy.
Is this switch suitable for SDVoE installations?
Yes, it is pre-configured with IGMP Plus and optimized for zero-touch ProAV over IP and SDVoE deployments, significantly reducing setup time for AV integrators.
