Detailed Specifications

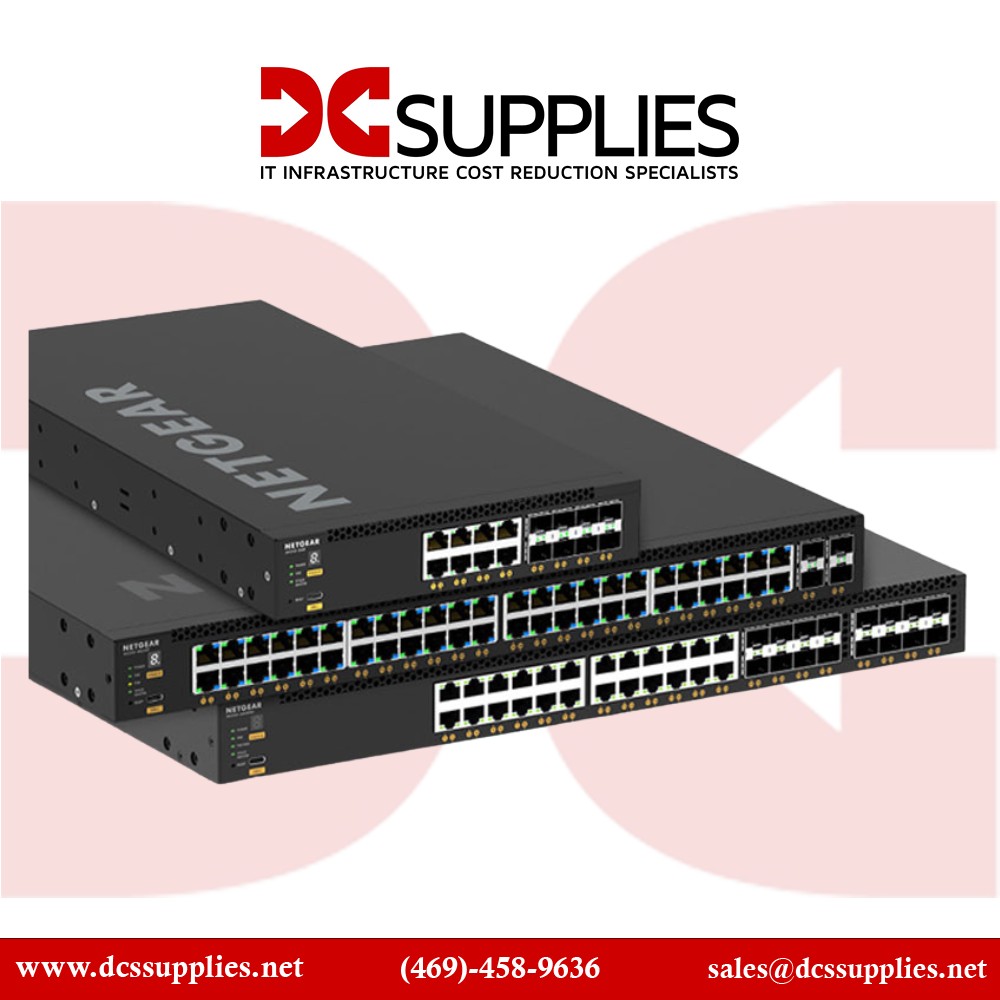

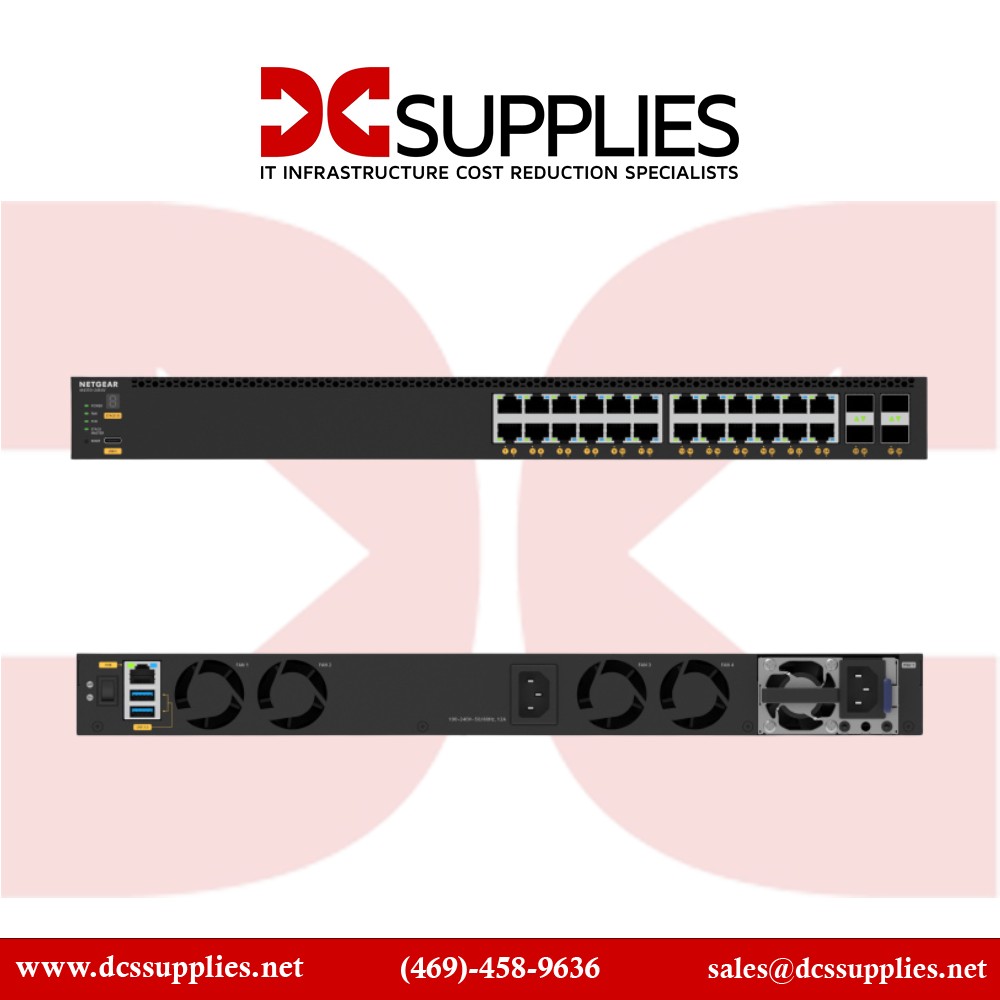

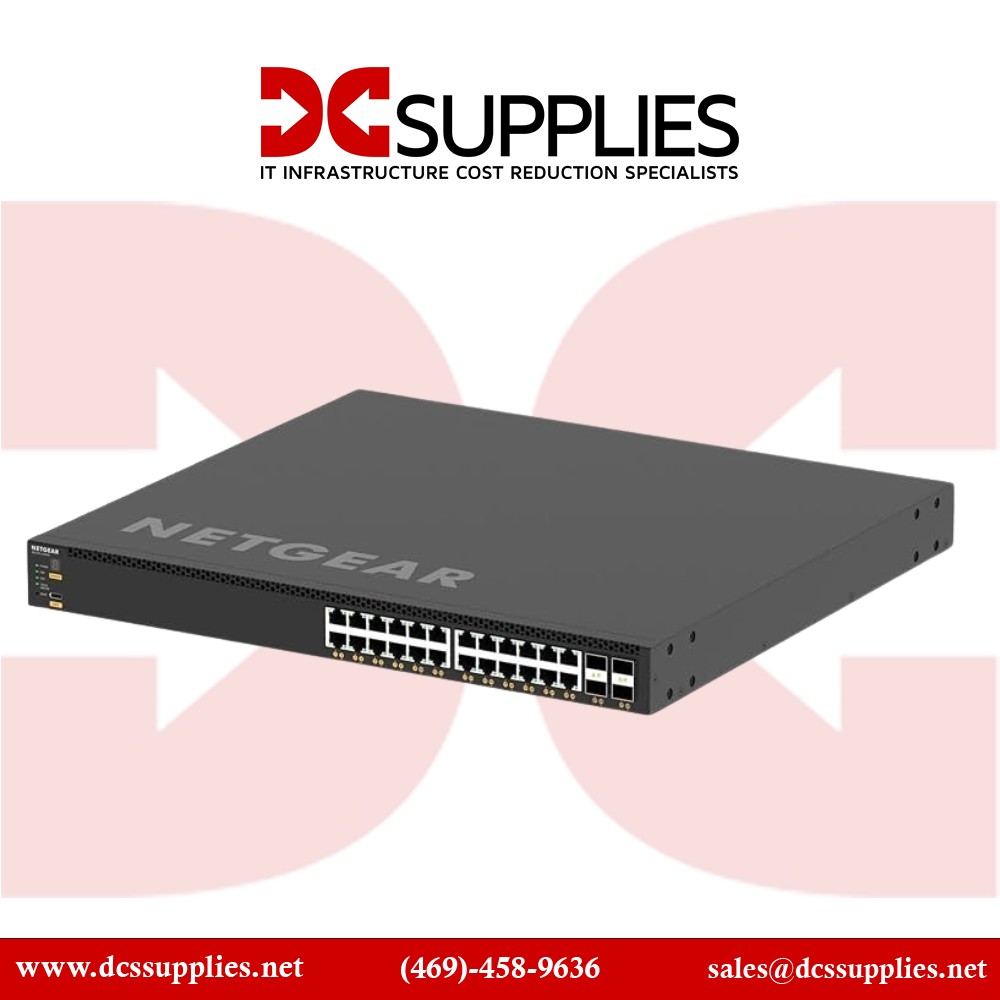

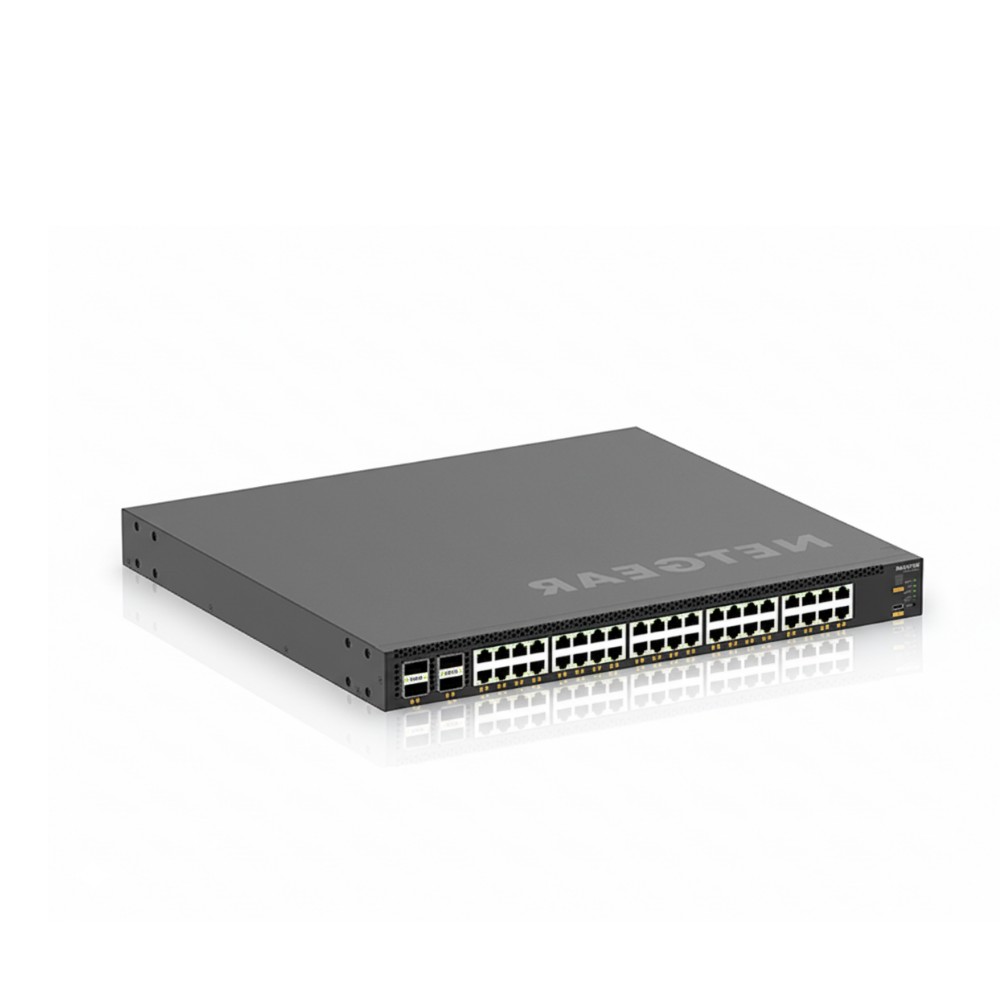

Netgear MSM4352-100NES M4350-44M4X4V Fully Managed Switch
Overview :
The Netgear MSM4352-100NES (aka M4350-44M4X4V) is a fully managed AV/IT switch used in converged networks requiring high throughput and power at the edge. It provides 44 multi-gig (2.5 GbE) PoE++ ports, 4 × 10 GbE PoE++ ports, and 4 SFP28 25 GbE uplink slots. It is suited to media, broadcast, and enterprise AV over IP deployment, often in wiring closets or AV racks. It supports modular power, stacking, and AV-centric features like IGMP Plus and AV profiles.
Key Features :
44 × 2.5 GbE PoE++ plus 4 × 10 GbE PoE++
4 × SFP28 25 GbE expansion uplink slots
194 W base PoE budget, expandable via modular PSUs
Virtual chassis stacking with non-stop forwarding
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | MSM4352-100NES |
| Product Type | Fully Managed AV/IT Switch (M4350-44M4X4V) |
| RJ-45 Ports | 44 × 2.5 GbE PoE++ + 4 × 10 GbE PoE++ |
| Expansion Slots | 4 × SFP28 (25 GbE) |
| Base PoE Budget | 194 W |
| Switching Capacity | 500 Gbps |
| Forwarding Rate | 372 Mpps |
| Stack / HA | Virtual chassis, NSF, hitless failover |
| Internal PSU | 550 W internal |
| Max PoE Budget (with modules) | Up to 3,314 W |
| Cooling / Acoustics | Quiet mode ~34 dB at 25 °C |
