Netgear XSM4316-100NES 16 Port Gigabit Ethernet Switch View larger

Netgear XSM4316-100NES 16-Port 10G Managed Stackable Switch

New

In Stock

16-Port 10G Hybrid Managed Switch

...
×




$295.00

  • New

Detailed Specifications

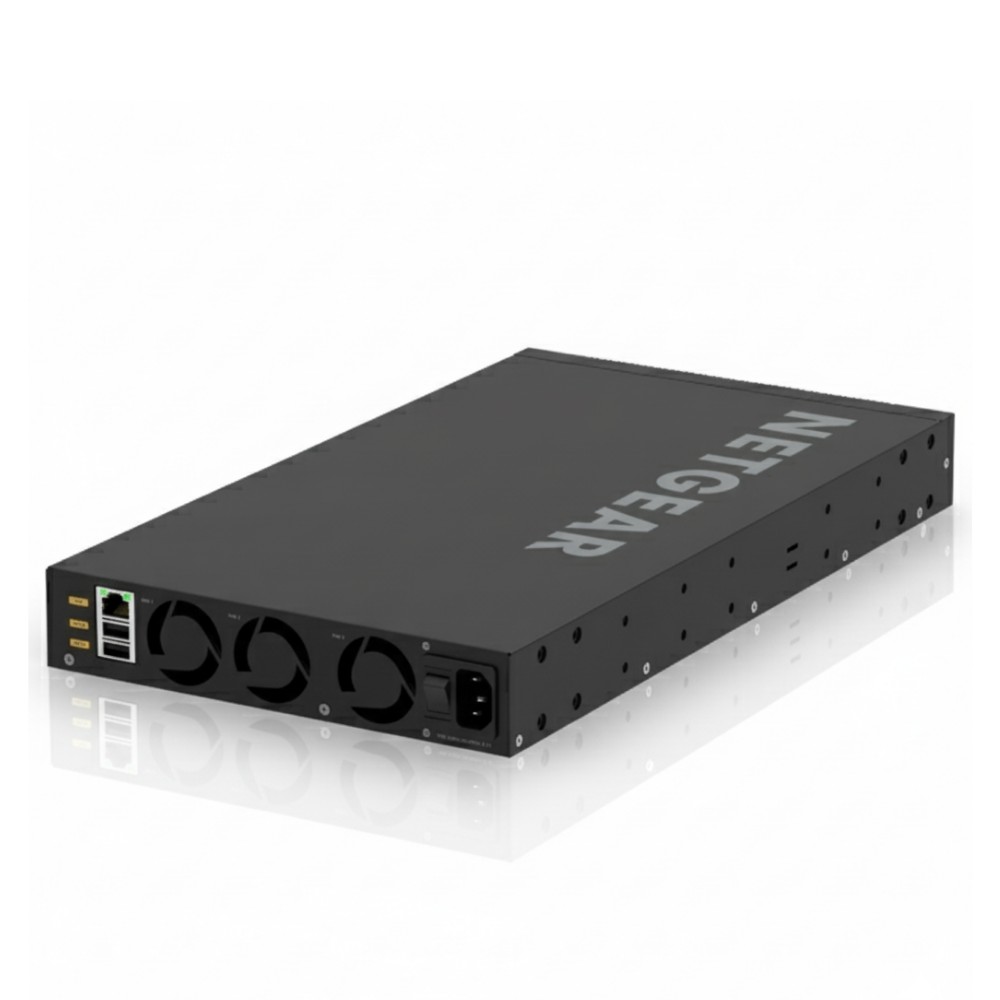

Netgear XSM4316-100NES 16-Port 10G Managed Stackable Switch

Overview

The Netgear XSM4316-100NES, part of the M4300 series (M4300-8X8F), is a high-density 10-Gigabit Ethernet switch engineered for mid-enterprise edge and SMB core deployments. It features a unique hybrid port configuration consisting of eight 10GBASE-T copper ports and eight 10G SFP+ fiber slots, providing essential flexibility for mixed-media environments. This switch is specifically optimized for Pro AV-over-IP applications, utilizing Netgear’s IGMP Plus to simplify multicast delivery across SDVoE-compliant networks without complex manual configuration.

Its half-width 1U form factor allows two units to be mounted side-by-side in a single rack space, offering hardware redundancy and high port density without consuming excessive vertical space. For IT infrastructure engineers, the XSM4316 provides true stacking capabilities with non-stop forwarding (NSF) and hitless failover, ensuring high availability for critical workloads. Management is handled via a comprehensive CLI, web interface, or NMS300, supporting a full Layer 3 feature set including OSPF, static routing, and PIM. Whether deployed as a top-of-rack switch in a small data center or as a distribution layer in a campus network, the XSM4316 delivers wire-speed performance and low latency for bandwidth-intensive tasks.

Key Features

- 8x 10GBASE-T and 8x 10G SFP+ hybrid port density.
- Half-width 1U design for flexible rack mounting.
- Pre-configured for out-of-the-box Pro AV-over-IP.
- Mixed stacking with other M4300 series models.

Specifications

Brand Netgear
Part Number XSM4316-100NES
Product Type Managed Stackable Switch
10GBASE-T Ports 8 x RJ45 (100M/1G/10G)
10G SFP+ Ports 8 x SFP+ (1G/10G)
Switching Capacity 320 Gbps
Throughput 238 Mpps
Form Factor Half-width 1U
Latency < 1.15 µs (10G Copper)
MAC Address Table 16,000 entries
Power Consumption 49W (Max)
Acoustics 36.9 dB @ 25°C
Dimensions 212 x 44 x 345 mm
Weight 3.19 kg

Frequently Asked Questions

Can I stack the XSM4316 with other M4300 models?

Yes, the M4300 series supports mixed stacking, allowing you to combine the XSM4316 with 1G or 10G models in the same stack for unified management and simplified scaling.

Is this switch suitable for SDVoE applications?

Absolutely. It is pre-configured with IGMP Plus, which automates multicast settings for Pro AV-over-IP deployments, ensuring zero-touch configuration for SDVoE and other AV protocols.

Does the XSM4316 support redundant power supplies?

The XSM4316 features a single internal power supply. However, for power redundancy at the system level, you can stack two units side-by-side in 1U using the included mounting hardware.
