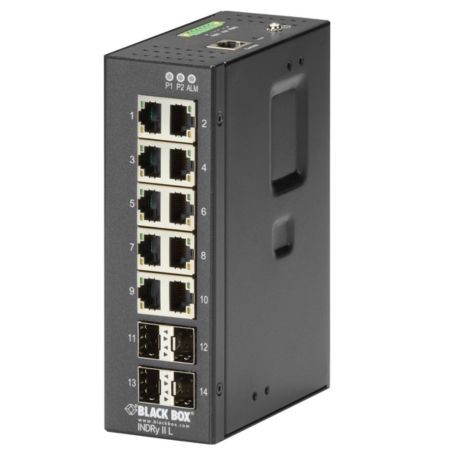

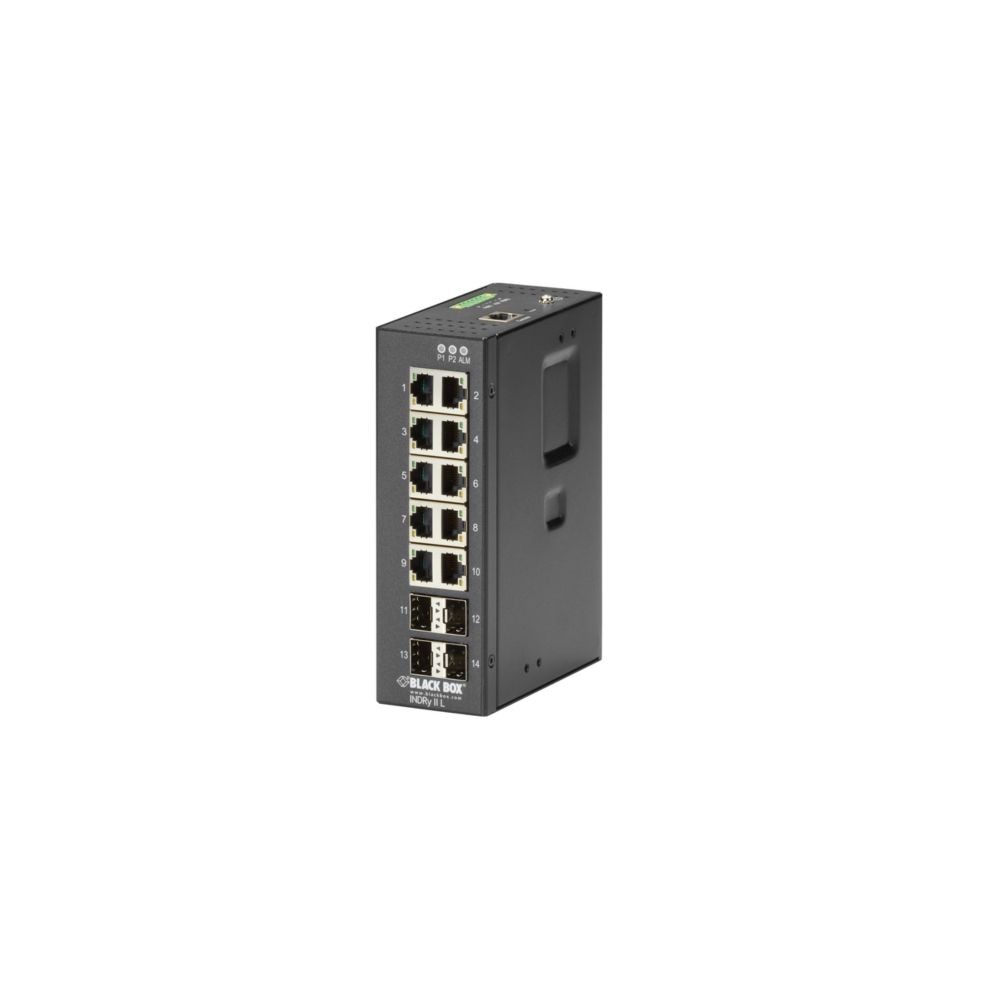

Black Box LIG1014A 14-Port Managed Gigabit Ethernet Switch with 4 SFP Slots View larger

Black Box LIG1014A 14-Port Managed Gigabit Ethernet Switch with 4 SFP Slots

LIG1014A

New

Black Box LIG1014A 14-Port Managed Gigabit Ethernet Switch with 4 SFP Slots
×




gigabit ethernet networking, LIG1014A, Black Box LIG1014A, LIG1014A Ethernet Switch, 14-Port Gigabit Switch, gigabit switch with sfp slot, LIG1014A Series Switch, 14-Port Gigabit Ethernet Switch, SFP Switching Technology

Detailed Specifications

Black Box LIG1014A 14-Port Managed Gigabit Ethernet Switch with 4 SFP Slots

Overview :

The LIG1014A managed switch has ten 10/10/1000-Mbps RJ-45 copper ports and four multi-speed SFP ports for uplinks. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables. Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site, thus lowering costs.

Specifications :

Product Name Industrial Managed Gigabit Ethernet Switch - (10) RJ-45, (4) SFP
Manufacturer Part Number LIG1014A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 4
Media Type Supported Twisted Pair

Optical Fiber
Total Number of Network Ports 10
PoE (RJ-45) Port No
Expansion Slot Type SFP
Form Factor DIN Rail Mountable

Wall Mountable
Power Consumption 11 W
Power Source DC
Layer Supported 2
Environmentally Friendly Yes
Environmental Certification RoHS 2
Network (RJ-45) Yes
Number of SFP Slots 4
Port / Expansion Slot Details 10 x Gigabit Ethernet Network

4 x Gigabit Ethernet Expansion Slot
Networking Standards IEEE 802.3af

IEEE 802.3at
