Black Box LGH1006A 6-Port Gigabit Ethernet Extreme Temperature Switch View larger

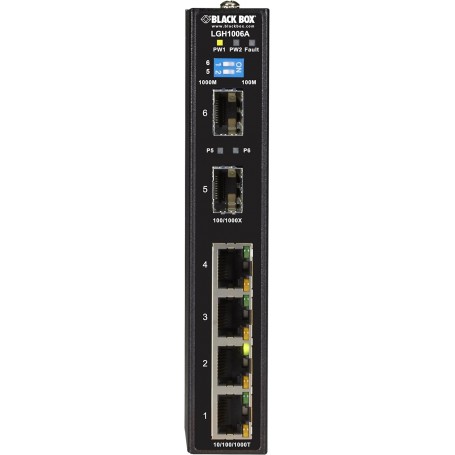

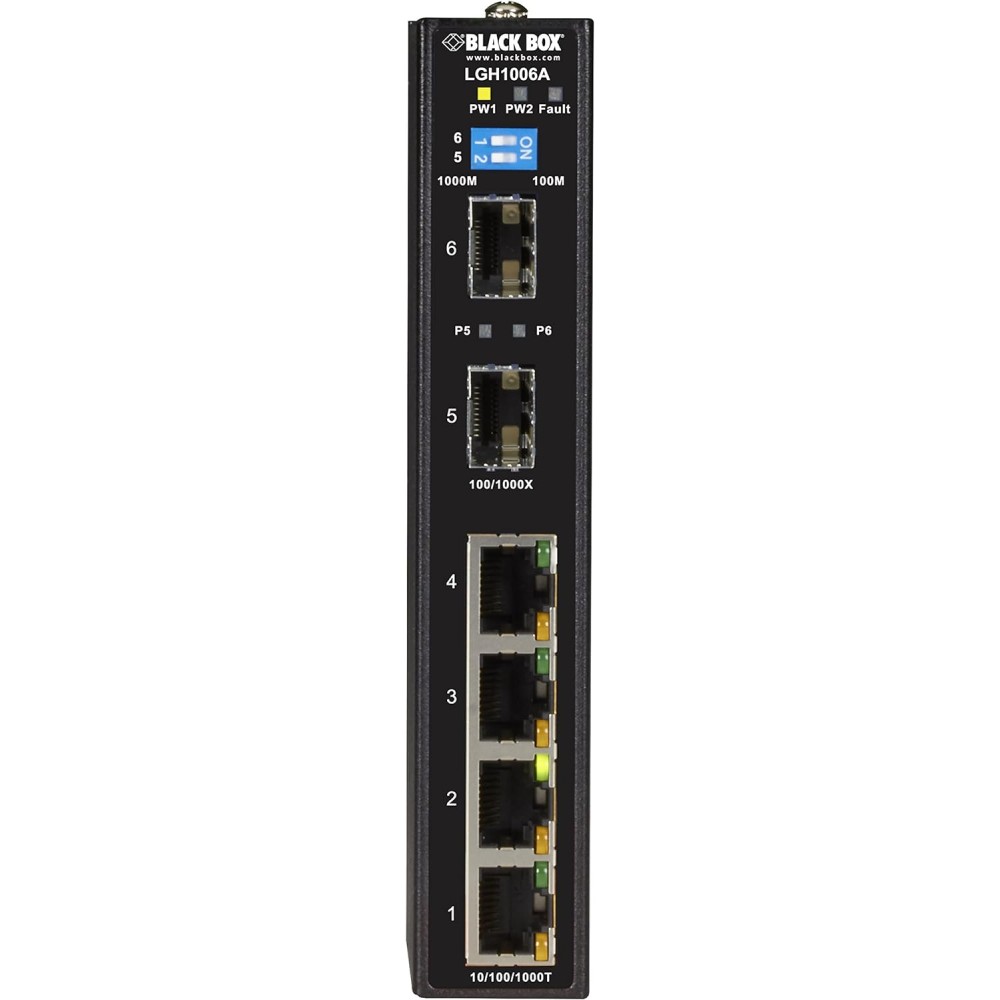

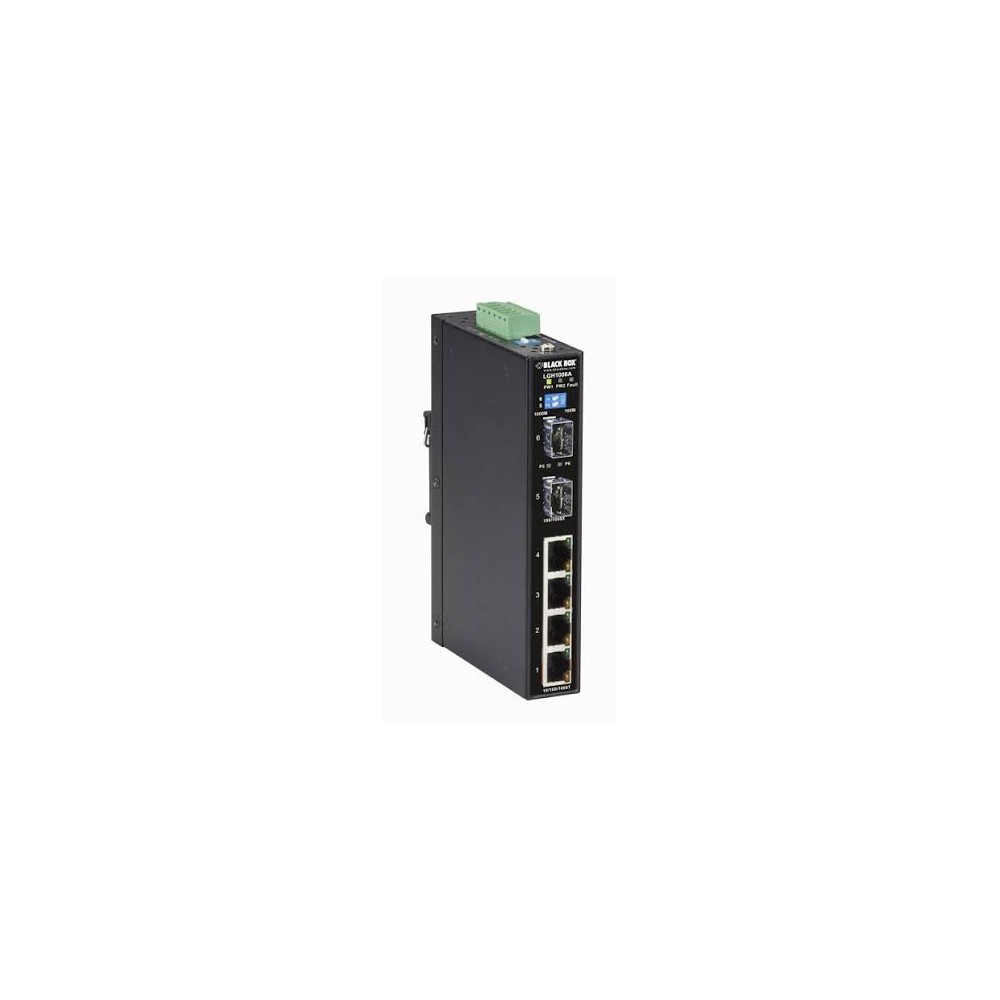

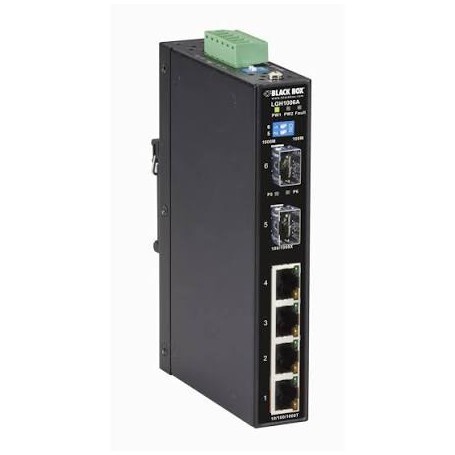

Black Box LGH1006A 6-Port Gigabit Ethernet Extreme Temperature Switch

LGH1006A

New

In Stock

Black Box LGH1006A 6-Port Gigabit Ethernet Extreme Temperature Switch
×




LGH1006A, Black Box LGH1006A, LGH1006A Ethernet Switch, 6 port gigabit ethernet switch, extreme switch temperature, gigabit ethernet networking, LGH1006A Series Switch, 6 port ethernet switch

$270.00

Detailed Specifications

Black Box LGH1006A 6-Port Gigabit Ethernet Extreme Temperature Switch

Overview :

The very reliable LGH1006A Industrial Ethernet Switch, (4) 10/100/1000-Mbps, (2) GE SFP, is designed for the far edges of your network. Use it in cold, dirty, indoor environments with temperature extremes of -40° to +70°C, such as loading docks or monitoring stations. The switch has DIN rail mounting with 12-48VDC input and comes in an IP31-rated enclosure. The rugged metal case serves as a heat sink to dissipate heat, so there are no fans to go bad.

The 100/1000Base-X Ethernet SFP ports give you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 30 kilometers, depending on the SFP you choose. For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. In addition, a smart alarm will alert you in case of a power failure. For easy, plug-and-play setup, the 10/100/1000-Mbps Ethernet ports are autosensing with Auto MDI/MDI-X.

Specifications :

Category Ethernet Switch
Total Ports 6
Ethernet Ports 4 Gigabit (10/100/1000TX)
Fiber Ports 2 SFP slots
Processing Type Store and forward
Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
Protocol IEEE 802.3x back pressure flow control
Transfer Rate 1000-Mbps: 1,488,000 pps; 100-Mbps: 148,800 pps; 10-Mbps: 14,880 pps; Quality of Service (QoS) for packet forwarding precedence
Jumbo Frame Support 1 MB
MAC Table Size 2 KBytes
