Overview

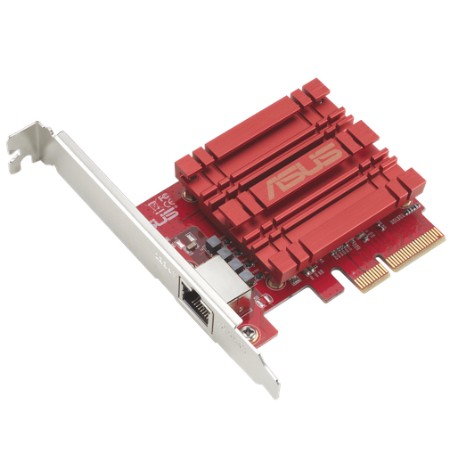

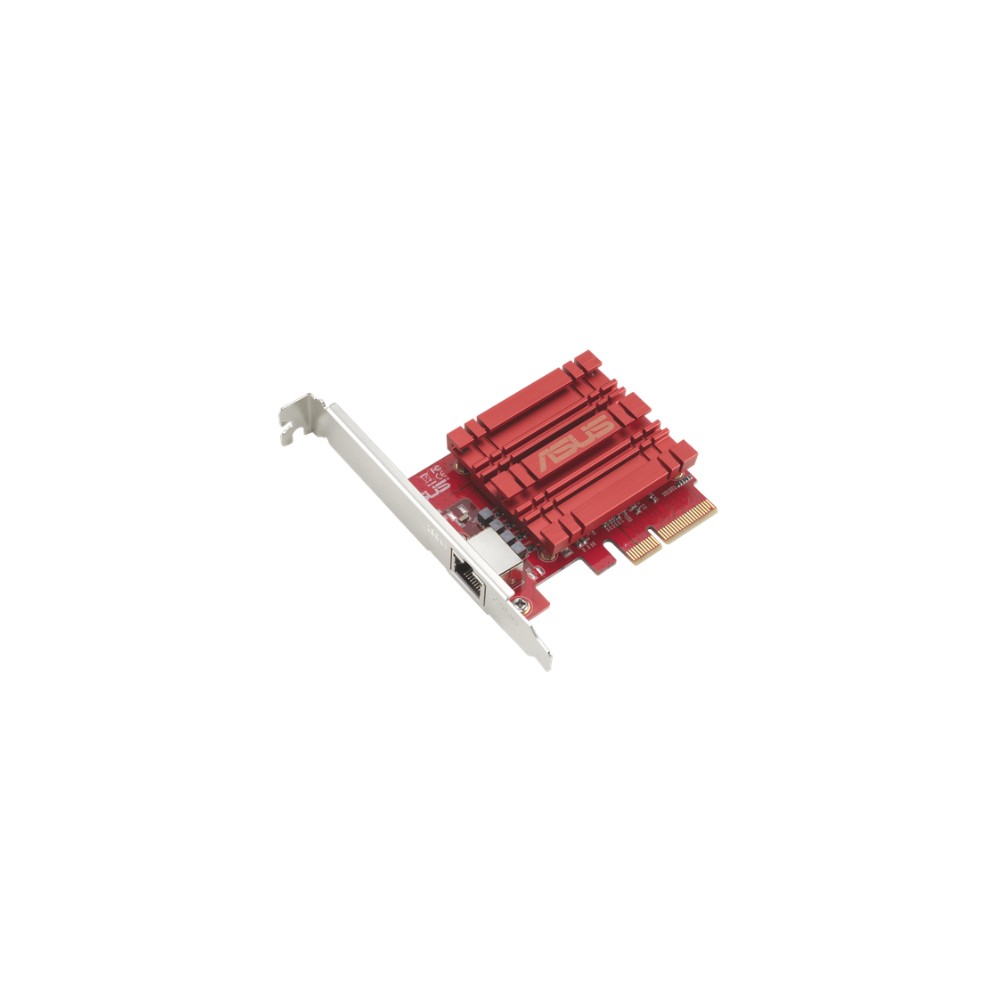

The ASUS XG-C100C is a PCI Express network adapter designed to add high-speed wired Ethernet connectivity to compatible desktop computers and workstations. It supports data rates up to 10Gbps over a standard RJ45 copper Ethernet connection, making it suitable for high-speed file transfers, network-attached storage (NAS), workstation networking, and bandwidth-intensive workloads.
The adapter supports five Ethernet speeds: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps. This multigigabit compatibility allows integration with supported network switches and routers operating at different link speeds. Built-in Quality of Service (QoS) and IEEE 802.1p traffic prioritization help prioritize supported network traffic.
The XG-C100C uses a PCIe interface and supports Windows and Linux configurations subject to hardware revision and driver availability. Its RJ45 port allows use of compatible copper Ethernet cabling without requiring a fiber-optic connection.
Key Features
Provides wired Ethernet connectivity at speeds up to 10Gbps
Supports 10G, 5G, 2.5G, 1G, and 100Mbps link speeds
Uses a standard RJ45 port for copper Ethernet cabling
Includes QoS and IEEE 802.1p traffic-prioritization support
Supports Windows and Linux with compatible drivers
Technical Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number | XG-C100C |
| Product Type | PCIe 10GbE Network Adapter |
| Network Interface | 1 × RJ45 Ethernet port |
| Maximum Data Rate | 10Gbps |
| Supported Link Speeds | 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps |
| Ethernet Standards | IEEE 802.3an, 802.3bz, 802.3ab, 802.3u |
| PCIe Interface | PCI Express; lane requirements vary by hardware revision |
| PCIe Compatibility | V1/V3: PCIe 3.0/2.1/2.0 x4; V2: PCIe 3.0/2.1/2.0 x2 |
| Traffic Management | IEEE 802.1p QoS |
| VLAN Support | IEEE 802.1Q |
| Cable Type | Cat5e or higher, subject to speed and distance requirements |
| Operating System Support | Windows and Linux; verify revision-specific driver support |
| Status Indicators | Speed LED and Link/Activity LED |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Product Dimensions | 120 × 84.6 × 20.5mm, without bezel |
| Product Weight | Approximately 89g |
| Package Contents | Adapter, short bracket, quick-start guide, warranty card, and driver CD as listed by ASUS |
Product Note
The XG-C100C is a wired network adapter, not a router or switch. Achieving 10Gbps requires compatible networking equipment, a suitable PCIe slot, appropriate drivers, and cabling that supports the required speed and distance. ASUS reports 10Gbps operation over Cat5e cable within 30 metres under its test conditions; Cat6a is a practical choice for many 10GbE installations.
Hardware revisions differ in PCIe lane requirements and operating-system support. Confirm whether the supplied card is V1, V2, or V3 and check the corresponding ASUS specifications before deployment. Actual throughput depends on the host system, network configuration, and connected equipment.
Frequently Asked Questions
What is the maximum speed of the ASUS XG-C100C?
It supports Ethernet link speeds up to 10Gbps when used with compatible equipment and cabling.
Which Ethernet speeds are supported?
The adapter supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps connections.
Does the XG-C100C require fiber-optic cabling?
No. It uses an RJ45 copper Ethernet port and supports compatible twisted-pair network cables.
Which PCIe slot does the adapter require?
The lane requirements depend on the hardware revision. ASUS lists x4 for V1 and V3, and x2 for V2, with support for the specified PCIe generations.
Is the adapter compatible with Windows and Linux?
Yes, subject to the specific hardware revision, operating-system version, and available drivers. Check ASUS support documentation before installation.
Can the XG-C100C connect to a 1GbE switch?
Yes. It supports backward-compatible link speeds, including 1Gbps and 100Mbps, when connected to compatible network equipment.
