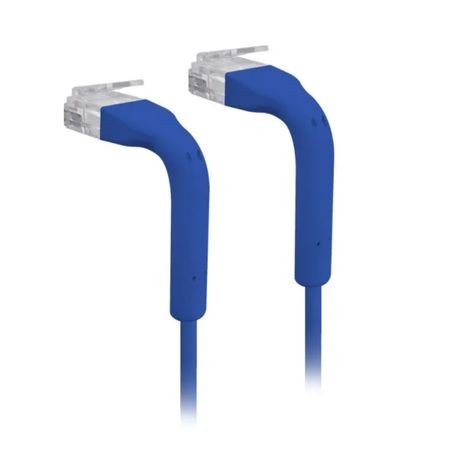

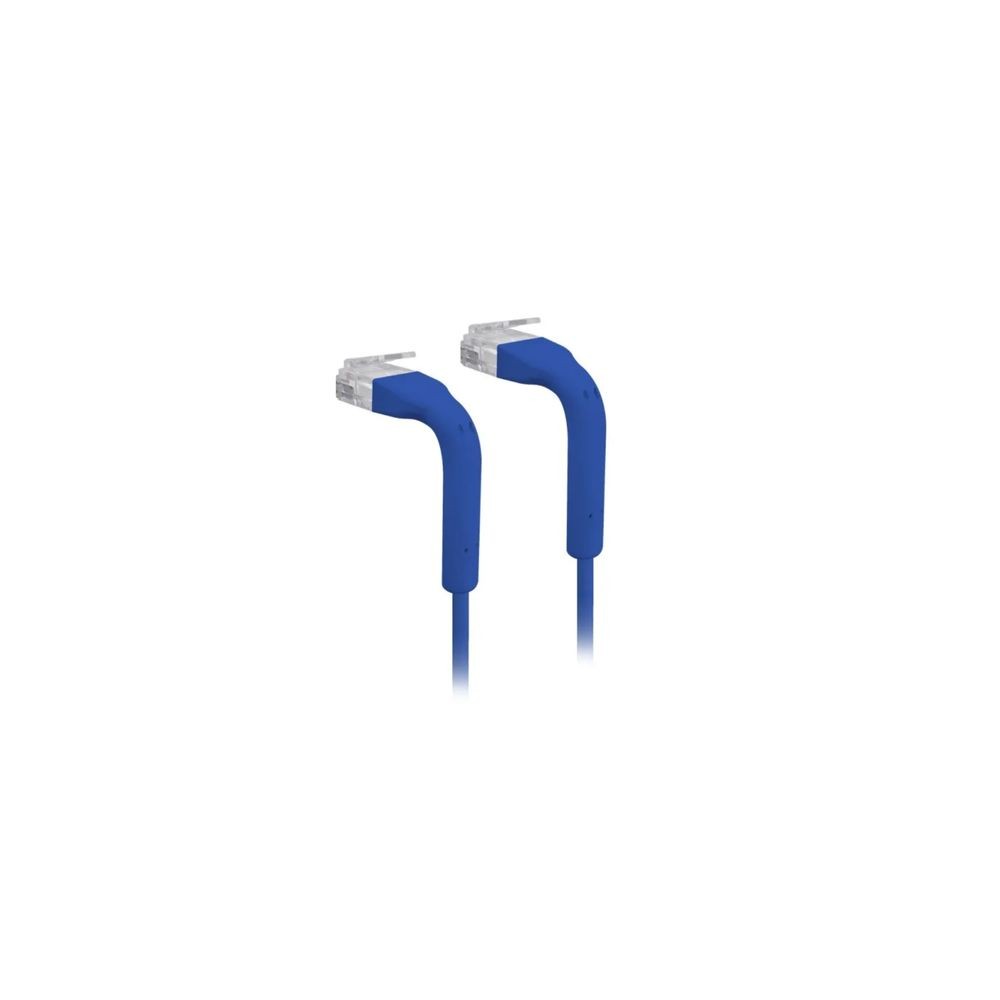

Ubiquiti U-CABLE-PATCH-2M RJ45-BL – UniFi 2m Blue RJ45 Patch Cable
Overview
The Ubiquiti U-CABLE-PATCH-2M RJ45-BL is a 2-meter blue UniFi Ethernet patch cable designed for network equipment interconnection. It uses an ultra-thin 3 mm jacket and two bendable booted RJ45 connectors for flexible installation around switches, access points, gateways, patch panels, and other Ethernet equipment.
The cable uses unshielded twisted-pair (UTP) construction with stranded copper conductors and supports Gigabit Ethernet. Its bendable boots allow the connector orientation to be adjusted for installations where conventional straight RJ45 cable boots have limited clearance.
Technical Information
The cable has a 3 mm outer jacket diameter and uses a thermoplastic elastomer (TPE) jacket with 30 AWG stranded copper conductors. The minimum bend radius is 24 mm. The cable is rated FT-2 under UL1581 and is specified for TIA/EIA-568-B.2 and ISO/IEC 11801 standards.
The bendable RJ45 boots can accommodate up to ±90° adjustment vertically and ±45° horizontally. The cable is intended for indoor operation and supports Gigabit Ethernet data rates and PoE up to PoE+++ as specified by Ubiquiti.
Compatibility
U-CABLE-PATCH-2M RJ45-BL uses standard RJ45 connectors and is intended for Ethernet networking equipment. It can be used with compatible UniFi switches, gateways, access points, and other RJ45 Ethernet devices requiring a 2-meter patch connection.
This MPN is the blue 2-meter version of the original UniFi Patch Cable family. It should not be substituted with the newer UACC-Cable-Patch series, which uses different part numbers and specifications.
Key Features
- 2-meter Ethernet patch cable in blue
- Ultra-thin 3 mm outer jacket
- Two bendable booted RJ45 connectors
- 30 AWG stranded copper UTP construction
- Gigabit Ethernet and PoE up to PoE+++ support
Applications
- Switch-to-patch-panel connections
- Gateway and switch interconnection
- Access point Ethernet connections
- Network cabinet and rack cable management
- Short Ethernet connections where flexible RJ45 routing is required
DC Supplies Product Note
The 3 mm cable diameter and bendable boots are useful where rack equipment has restricted cable clearance. Maintain the specified 24 mm minimum bend radius during installation to avoid excessive mechanical stress on the cable.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | U-CABLE-PATCH-2M RJ45-BL |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Cable Length | 2 m |
|---|
| Color | Blue |
|---|
| Data Rate | Gigabit Ethernet |
|---|
| PoE Support | Up to PoE+++ |
|---|
| Connector | 2 × Bendable booted RJ45 |
|---|
| Shielding Type | UTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 30 AWG |
|---|
| Jacket Diameter | 3 mm |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Bendable Boot Adjustment | Up to ±90° vertical / ±45° horizontal |
|---|
| Minimum Bend Radius | 24 mm |
|---|
| Flame Rating | FT-2 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Indoor |
|---|
| Installation Temperature | 0–60°C |
|---|
| Storage Temperature | -20–80°C |
|---|
| Operating Temperature | -10–75°C |
|---|
FAQs
What length is U-CABLE-PATCH-2M RJ45-BL?
The cable is 2 meters long.
What color is this cable?
This MPN is the blue version of the UniFi Patch Cable.
What connectors are used?
The cable has two bendable booted RJ45 connectors.
Does the cable support Gigabit Ethernet?
Yes. Ubiquiti specifies Gigabit Ethernet support for this UniFi Patch Cable.
What type of cable construction is used?
The cable uses unshielded twisted-pair construction with 30 AWG stranded copper conductors and a 3 mm TPE jacket.
Can the RJ45 boots be repositioned?
Yes. The bendable boots support adjustment of up to ±90° vertically and ±45° horizontally.
