Overview

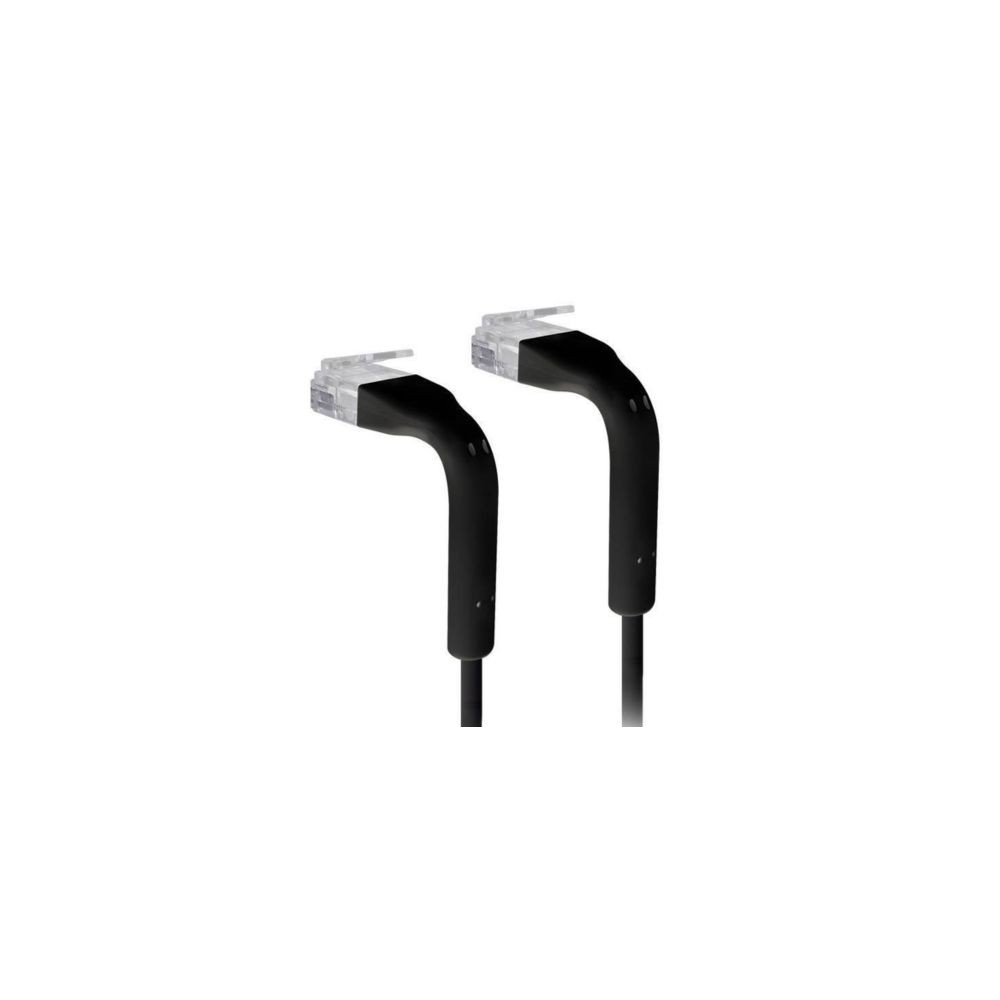

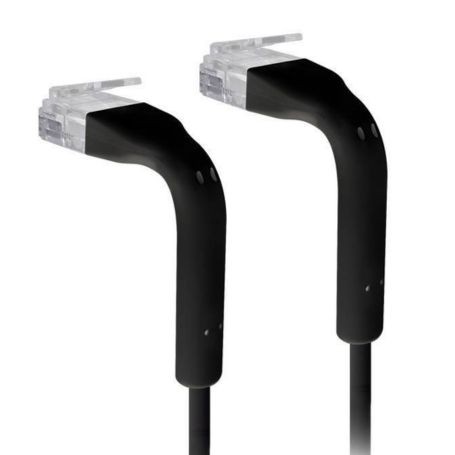

The Ubiquiti U-Cable-Patch-RJ45-BK is a 0.1-metre UniFi Cat6 Ethernet patch cable designed for short indoor network connections. It features a black jacket, two male RJ45 connectors with bendable boots, and an ultra-thin 3mm outer diameter.
The compact 0.1m length is suited to closely positioned network equipment, including switches, patch panels, and other devices installed within racks or cabinets. The cable supports Gigabit Ethernet and follows TIA/EIA-568-B.2 and ISO/IEC 11801 standards.
Technical Information
The cable uses unshielded Cat6 twisted-pair construction with stranded copper conductors, 30 AWG conductors, and a thermoplastic elastomer jacket. Its 3mm diameter provides a slim profile for compact cable management.
Both ends are fitted with bendable booted RJ45 connectors. The cable supports GbE data rates and PoE up to PoE+++. Its minimum bend radius is 24mm, while the 250MHz Cat6 bandwidth rating supports standard Gigabit Ethernet applications.
Key Features
- 0.1m length for very short equipment connections
- Cat6 construction with Gigabit Ethernet support
- Ultra-thin 3mm outer diameter
- Bendable booted RJ45 connectors on both ends
- Black jacket for organised cable identification
Applications
The U-Cable-Patch-RJ45-BK is suitable for short indoor Ethernet connections between nearby switches, patch panels, gateways, access points, and other RJ45-equipped network devices. Its compact length helps minimise excess cable in dense rack and cabinet installations.
Compatibility
The cable uses male RJ45 connectors at both ends and is compatible with Ethernet equipment using standard RJ45 ports. Its Cat6 construction supports 10/100/1000 Base-T networking, including Gigabit Ethernet.
DC Supplies Product Note
The 0.1m length is intended for very short patch connections where minimising cable slack is important. The 3mm diameter and bendable boots also help keep dense rack patching compact and manageable.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | U-Cable-Patch-RJ45-BK |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Product Family | UniFi |
|---|
| Cable Category | Cat6 |
|---|
| Cable Length | 0.1m |
|---|
| Colour | Black |
|---|
| Connector 1 | RJ45 Male |
|---|
| Connector 2 | RJ45 Male |
|---|
| Connector Design | Bendable booted RJ45 |
|---|
| Outer Diameter | 3mm |
|---|
| Shielding | UTP / Unshielded |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 30 AWG |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Bandwidth | 250MHz |
|---|
| Supported Ethernet | 10/100/1000 Base-T |
|---|
| Supported Data Rate | GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Operating Environment | Indoor |
|---|
| Minimum Bend Radius | 24mm |
|---|
| Flame Rating | FT-2 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2, ISO/IEC 11801 |
|---|
| Cat6 Channel Testing | Passed TIA-568-B.2 Cat6 Channel test by Fluke |
|---|
| Package Quantity | 1 |
|---|
FAQs
What length is the U-Cable-Patch-RJ45-BK?
The exact MPN is the 0.1m black variant of the UniFi Patch Cable family.
What category is this cable?
It is a Cat6 Ethernet patch cable with a 250MHz bandwidth rating.
What connectors are fitted?
Both ends use male RJ45 connectors with bendable booted designs.
What is the cable diameter?
The cable has an ultra-thin 3mm outer diameter.
What Ethernet speeds does it support?
The cable supports 10/100/1000 Base-T Ethernet, including Gigabit Ethernet.
Is it suitable for PoE?
Ubiquiti specifies support for PoE up to PoE+++ for this patch cable family.
